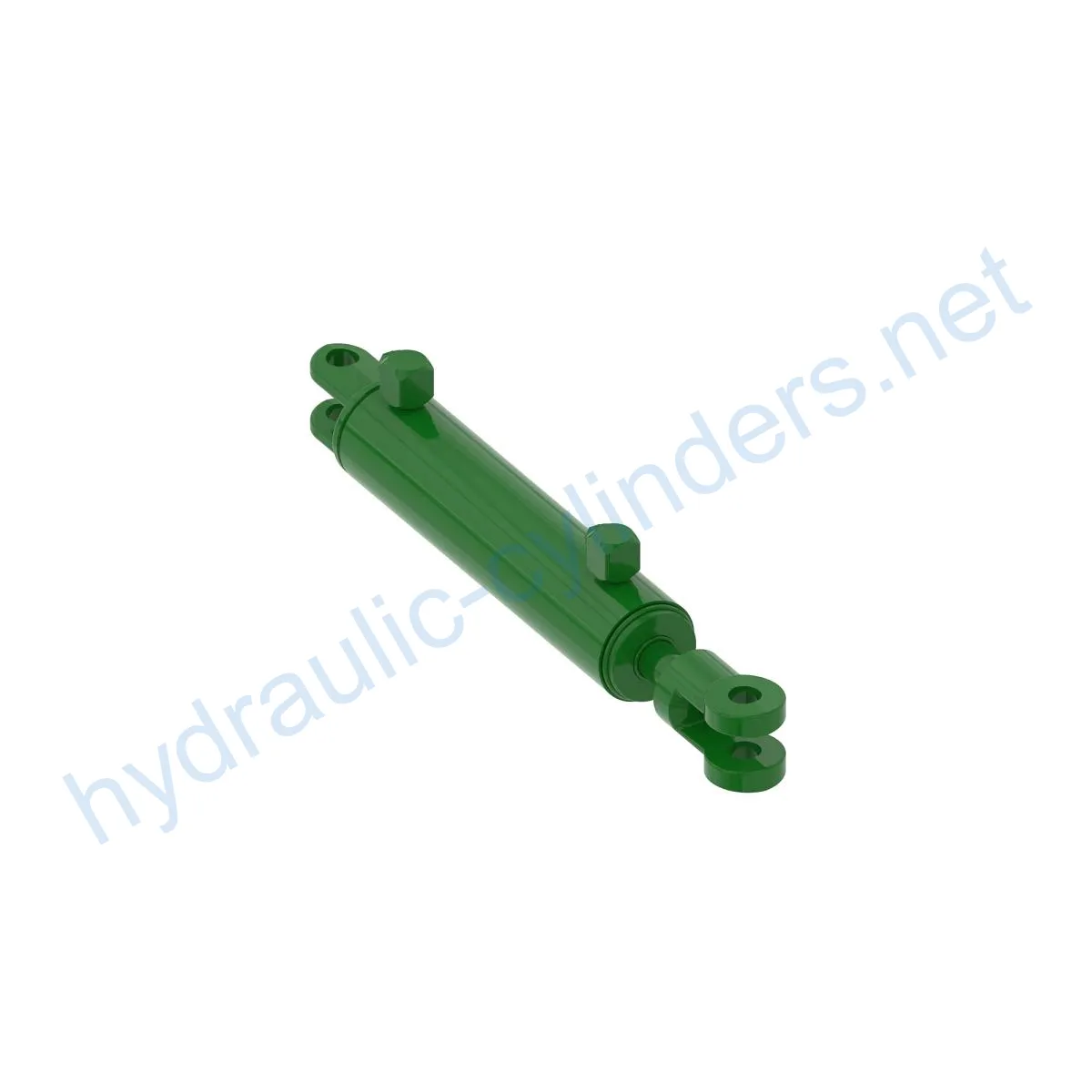

Replacement Of AH219271 Hydraulic Cylinder

The Replacement Of AH219271 Hydraulic Cylinder is a hydraulic cylinder that weighs 28.18 lb, has a height of 3.5 in, a width of 5 in, and a length of 25.25 in. It is compatible with the 1770NT and 1775NT models.

Product Definition and Description

A hydraulic cylinder is a mechanical actuator that is used to give a unidirectional force through a unidirectional stroke. The Replacement Of AH219271 Hydraulic Cylinder is an essential component used in heavy machinery to provide power and motion control. It replaces the damaged or worn-out hydraulic cylinders to ensure the equipment’s proper functioning.

Specifications and Compatibility

The Replacement Of AH219271 Hydraulic Cylinder is compatible with the 1770NT and 1775NT models. It weighs 28.18 lb, has a height of 3.5 in, a width of 5 in, and a length of 25.25 in.

Features

Improved Equipment Performance

Replacing damaged or worn-out hydraulic cylinders helps to restore the equipment’s normal operational ability, ensuring its performance in various applications.

Enhanced Safety

Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of equipment and operators.

Overload Protection

New cylinder designs usually consider better overload protection mechanisms, enhancing safety.

Quick Installation

Modern hydraulic cylinder designs usually consider ease of installation and replacement, reducing downtime.

Standardized Components

Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

The Replacement Of AH219271 Hydraulic Cylinder is used in various heavy machinery to provide power and motion control. Some of the applications include:

Excavators

The hydraulic cylinder in an excavator’s arm or bucket may get damaged due to long-term use or overload and need replacement to restore normal operation.

Cranes

The crane’s boom hydraulic cylinder is prone to wear and tear due to frequent lifting and lowering and requires regular replacement to ensure safety.

Tractors

The front-end loader hydraulic cylinder in a tractor may leak or experience a drop in performance due to constant lifting and tilting operations, necessitating replacement.

Harvesters

The hydraulic system in harvesters undergoes high pressure, and the cylinder may sustain damage due to fatigue, requiring timely replacement to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders control robotic arms and other automated equipment. Failure of cylinders can affect production efficiency and require immediate replacement.

Die Casting Machines

Under high pressure and high-temperature environments, hydraulic cylinders may experience a drop in performance. Regular replacement can ensure product quality.

Mining Equipment

Hydraulic cylinders are used in mining equipment to lift and move heavy objects. Due to harsh operating conditions, regular inspections and replacement are necessary to avoid equipment failure.

Bulldozers

The hydraulic cylinder’s wear in a bulldozer’s blade can cause a reduction in pushing ability, requiring timely replacement to maintain work efficiency.

Maintenance Tasks

Regular maintenance tasks for hydraulic cylinders include:

Periodic Inspection

Inspect the hydraulic cylinder regularly to identify any signs of damage or wear and take corrective action to prevent further damage.

Lubrication

Use the appropriate hydraulic oil to lubricate the cylinder’s moving parts periodically.

Seal Replacement

Replace worn-out seals periodically to prevent oil leakage and maintain the cylinder’s efficiency.

Safety and Environmental Considerations

When using hydraulic cylinders, it is essential to follow proper safety precautions such as using appropriate protective gear and observing safe work practices.

Diagnosis of Common Problems

Some common problems with hydraulic cylinders include leakage, cylinder drift, and insufficient force. To diagnose these problems:

Leakage

Inspect the seal and replace if necessary. If the damage is extensive, replace the cylinder.

Cylinder Drift

Inspect the valve and replace if necessary. If the damage is extensive, replace the cylinder.

Insufficient Force

Check the pressure gauge and the hydraulic pump. Adjust accordingly or replace if necessary.

Design Considerations and Selection Criteria

Bearing Capacity

The hydraulic cylinder must be able to withstand the forces and loads applied to it during its operation.

Sealing

Hydraulic cylinders require proper sealing to prevent oil leakage and maintain efficiency.

Durability

The hydraulic cylinder must be able to withstand the harsh operating environment and frequent use.

Safety

The hydraulic cylinder must have safety features such as overload protection and be designed to minimize safety hazards.

Maintainability

The hydraulic cylinder must be designed for easy maintenance and repair.

Sealing and Lubrication

Hydraulic cylinders use various sealing components, such as piston seals and rod seals. The seals should be made from wear-resistant materials such as polyurethane or nitrile rubber. The cylinder body and threaded ends should be treated for wear resistance. The hydraulic cylinder should be lubricated with the appropriate hydraulic oil to reduce friction and wear.

Installation Guide

When installing the hydraulic cylinder, it is essential to:

Align the Cylinder Correctly

Ensure that the cylinder is correctly aligned with the equipment to avoid damaging the cylinder during installation.

Use Proper Installation Support

Use the appropriate installation support to hold the cylinder in place during installation.

Follow Recommended Inspection, Repair, and Replacement Procedures

Follow the recommended inspection, repair, and replacement procedures provided by the manufacturer to ensure proper maintenance of the cylinder.
