Introduction

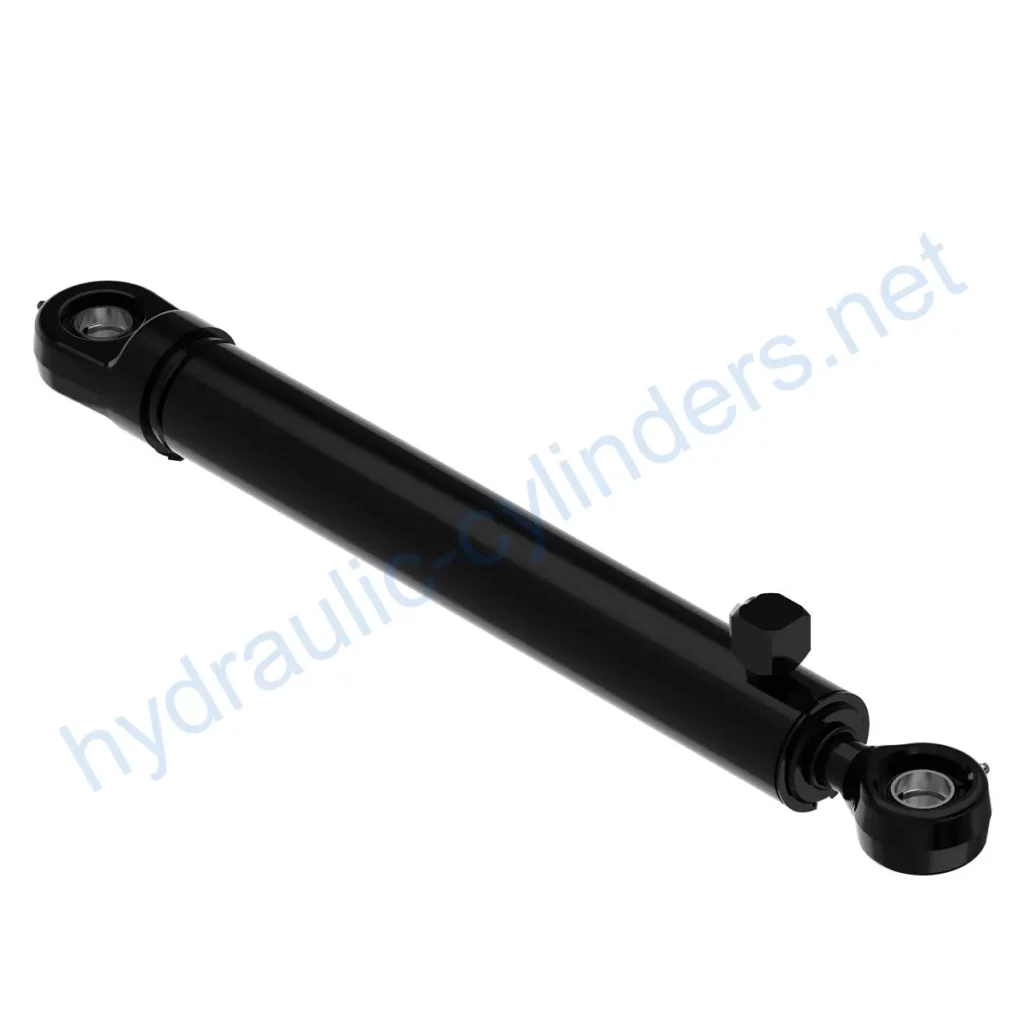

The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder is an essential hydraulic cylinder designed to perform specific functions. It is a hydraulic cylinder that is used for clamping and unclamping buckets. This hydraulic cylinder is an indispensable component of many machines and equipment.
Specifications and Model
The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder has the following specifications:
- Weight: 15.76 lb
- Height: 2.75 in
- Width: 3.7 in
- Length: 24.75 in
The cylinder is compatible with the following models: 26 P, 26G, 27 ZTS, 27C ZTS, 27D, 30 P, 30G, 35 P, 35C, 35D, 35G, and 35ZTS PC4.
Features
The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder has several features that make it stand out:
- Improves equipment performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operating ability and ensure its performance in various applications.
- Enhances safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures and ensure the safety of operators and equipment.
- Overload protection: New cylinder designs typically consider better overload protection mechanisms, improving safety.
- Quick installation: Modern hydraulic cylinder designs typically consider ease of installation and replacement, reducing downtime.
- Standardized components: Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.
Applications
The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder has various applications. Some of the examples include:
- Excavators: Hydraulic cylinders in excavator arms or buckets may become damaged due to extended use or overload and require replacement to restore normal operation.
- Cranes: Hydraulic cylinders in crane boom arms are subject to wear and tear during frequent lifting and lowering and require periodic replacement to ensure safety.
- Tractors: Hydraulic cylinders in front-end loader attachments of tractors can develop leaks or performance issues during continuous lift and tilt operations and require replacement.
- Harvesters: Hydraulic systems in harvesters undergo high pressure during operation, and cylinders may become damaged due to fatigue and require immediate replacement to maintain work efficiency.
- Automated production lines: Hydraulic cylinders are used to control robotic arms and other automation equipment. Cylinder failures can affect production efficiency and require immediate replacement.
- Die-casting machines: Hydraulic cylinders may experience performance degradation in high-pressure and high-temperature environments. Regular replacement can ensure product quality.
- Mining equipment: Hydraulic cylinders are used to lift and move heavy objects in mining equipment and require regular inspection and replacement to avoid equipment failures due to harsh working environments.
- Bulldozers: The wear of hydraulic cylinders on bulldozer arms can cause a decrease in bulldozing ability and require timely replacement to maintain work efficiency.
Maintenance
Regular maintenance tasks for the Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder include:
- Periodic inspection
- Lubrication as required
- Seal replacement
- Calibration check
It is essential to ensure correct installation, lubrication, and adjustment to increase cylinder life. During installation, provide correct guidance for aligning the cylinder, recommend using appropriate mounting brackets to secure the cylinder, and follow recommended inspection, repair, and replacement procedures. Companies should provide replacement parts and rebuilding services to increase the cylinder’s lifespan.
Safety and Environmental Considerations
The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder requires the following safety precautions during use:
- Use appropriate personal protective equipment such as gloves, goggles, and hearing protection when handling the cylinder.
- Ensure that the hydraulic system is shut down and pressure is released before disassembling or replacing the cylinder.
- Dispose of old or damaged hydraulic cylinders properly to avoid environmental hazards.
Fault Diagnosis and Common Problems
Common faults of the Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder include:
- Seal leakage
- Cylinder rod bending
- Cylinder barrel damage
- Cylinder not extending or retracting
- Abnormal noise during operation
To avoid these problems, it is essential to follow recommended maintenance procedures and use the cylinder correctly. If any of the above problems occur, the appropriate fault diagnosis and troubleshooting measures should be taken.
Design Considerations and Selection Criteria
The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder is designed to have the following features:
- High load-bearing capacity
- Excellent sealing properties
- Durable construction
- Enhanced safety features
- Ease of maintenance and repair
Hydraulic cylinders are critical components that require careful consideration during selection. When selecting a hydraulic cylinder, it is important to consider the load-bearing capacity, sealing properties, durability, safety features, and ease of maintenance and repair.
Sealing and Lubrication
The Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder is equipped with various sealing components such as piston seals and rod seals made of wear-resistant materials such as polyurethane and nitrile rubber. The cylinder barrel and threading surfaces are finely processed to improve wear resistance. The hydraulic cylinder requires regular lubrication with suitable hydraulic oil.
Preventative Maintenance
Regular preventative maintenance tasks for the Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder include:
- Inspection of seals, threads, and overall condition
- Proper lubrication of the cylinder
- Re-tightening of bolts and nuts as required
Installation Guide
Correct installation is essential to ensure that the Replacement Of AH216639 Bucket Clamp Hydraulic Cylinder operates efficiently and safely. Follow these guidelines for proper installation:
- Align the cylinder correctly with the mating surfaces
- Use proper mounting brackets to secure the cylinder
- Ensure that the hydraulic system is free of contaminants and properly bled before operation
About Our Company
We are a manufacturer of replacement hydraulic cylinders with a complete range of products. We are one of the leading manufacturers and wholesale distributors of hydraulic cylinders in the domestic and international markets.
Our company offers custom-designed solutions to meet the specific needs of our customers. We have international certifications that guarantee the high quality of our products and services. Our factory is equipped with state-of-the-art production equipment and technology, enabling us to produce high-quality products efficiently.
We also offer after-sales services such as replacement parts and rebuilding services to help our customers maintain their hydraulic cylinders and extend their lifespan.
