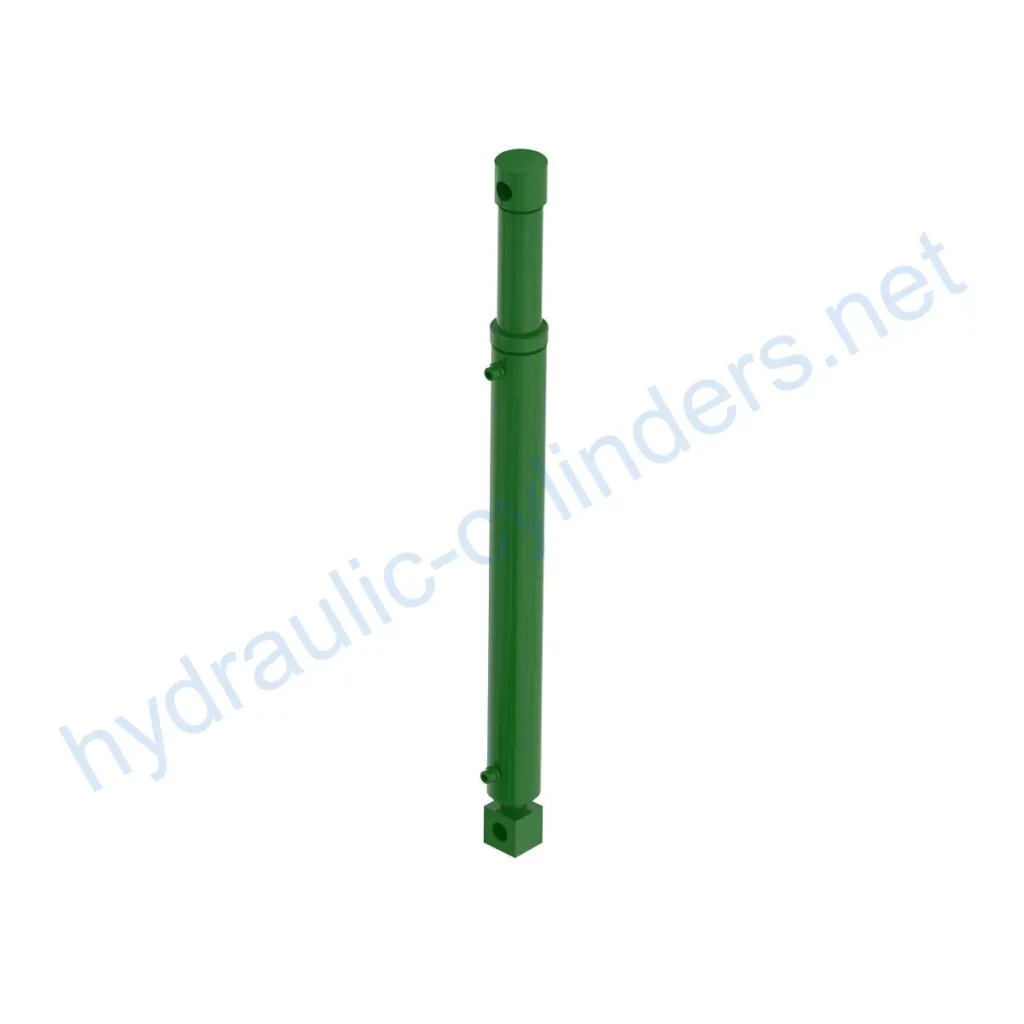

Replacement Of AHC13479 Hydraulic Cylinder

Introduction

The Replacement Of AHC13479 Hydraulic Cylinder is a crucial component in various hydraulic systems. It is designed to provide the necessary force and movement for different applications. This hydraulic cylinder is specifically designed for the H240 model.

Specifications

• Weight: 54 lb
• Height: 3.5 in
• Width: 4 in
• Length: 44.75 in

Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operation capability of equipment, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, increasing safety levels.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it convenient to obtain replacement parts in the market.

Applications

• Excavators: The hydraulic cylinder may need replacement on the boom or bucket of excavators due to long-term use or overloading, ensuring the proper operation of the equipment.
• Cranes: The hydraulic cylinders on crane booms are prone to wear and tear during frequent lifting and lowering processes, requiring regular replacement for safety.
• Tractors: The front loader hydraulic cylinders on tractors may experience leaks or performance degradation due to continuous lifting and tilting operations, necessitating replacement.
• Harvesters: Hydraulic systems in harvesters endure high pressures, and cylinders may get damaged due to fatigue. Timely replacement ensures continued efficiency.
• Automated Production Lines: Hydraulic cylinders control robotic arms and other automated equipment. Failure of cylinders can impact production efficiency, requiring immediate replacement.
• Die Casting Machines: Hydraulic cylinders in high-pressure and high-temperature environments can experience performance degradation. Regular replacement ensures product quality.
• Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Regular inspection and replacement are necessary to avoid equipment malfunctions.
• Bulldozers: Wear of hydraulic cylinders on bulldozer blades can result in decreased pushing capacity. Timely replacement maintains operational efficiency.

Maintenance Tasks

1. Regular Inspection: Properly inspect the hydraulic cylinder for any signs of damage or wear, and address issues promptly.
2. Appropriate Lubrication: Ensure the hydraulic cylinder is adequately lubricated to reduce friction and prevent premature wear.
3. Seal Replacement: Regularly replace worn seals to maintain the cylinder’s integrity and prevent leaks.
4. Calibration Check: Periodically check and adjust the cylinder’s calibration to ensure accurate performance.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, safety measures are of utmost importance. Proper handling, adherence to safety protocols, and equipment maintenance contribute to a safe working environment. Additionally, considering environmental factors such as proper disposal of old cylinders and using eco-friendly hydraulic fluids can help minimize the impact on the environment.

Troubleshooting and Common Issues

Proper diagnosis and timely resolution of hydraulic cylinder issues are essential for maintaining optimal performance. Here are some common problems and their solutions:

1. Leakage: Identify the source of the leak and replace the faulty seals or damaged components.
2. Sticking or Binding: Check for obstructions or misalignment, and lubricate or realign the cylinder if necessary.
3. Slow or Inconsistent Movement: Inspect the hydraulic fluid level, check for clogged filters, and ensure proper lubrication.
4. Noise or Vibrations: Examine the mounting and alignment of the cylinder, and tighten any loose connections or brackets.
5. Loss of Pressure: Inspect the system for leaks, check the hydraulic fluid level, and assess the condition of the seals and valves.

Preventive Measures

To minimize potential issues, implement the following preventive measures:

• Regular Inspections: Conduct routine inspections to identify and address any potential problems before they escalate.
• Proper Lubrication: Ensure the hydraulic cylinder is adequately lubricated according to manufacturer recommendations.
• Seal Maintenance: Regularly replace seals to prevent leaks and maintain the cylinder’s performance.
• Calibration Checks: Periodically verify the cylinder’s calibration to ensure accurate operation.

Design Considerations and Selection Criteria

When selecting a hydraulic cylinder, several factors should be considered:

• Load-Bearing Capacity: Ensure the selected cylinder can handle the required load without compromising safety or performance.
• Sealing: Choose cylinders with reliable sealing components, such as piston seals and rod seals made of wear-resistant materials like polyurethane or nitrile rubber.
• Durability: Look for cylinders with finely treated cylinder bodies and threaded ends to enhance wear resistance.
• Safety: Prioritize cylinders with built-in safety features that prevent overloading and protect against major failures.
• Maintainability: Opt for cylinders that are easy to inspect, repair, and replace, improving overall maintenance efficiency.

Sealing and Lubrication

Proper sealing and lubrication are vital for the optimal performance of hydraulic cylinders:

• Various sealing components, such as piston seals and rod seals, should be made of wear-resistant materials like polyurethane or nitrile rubber.
• The cylinder body and threaded ends should undergo precise treatment to enhance wear resistance.
• Regularly apply an appropriate amount of hydraulic oil to lubricate the cylinder, reducing friction and preventing premature wear.

Regular Inspection and Preventative Maintenance

To ensure the longevity of the hydraulic cylinder, the following maintenance tasks should be performed:

1. Correct Installation: Provide proper guidance on aligning and installing the cylinder, recommending the use of suitable installation brackets for stability.
2. Recommended Inspection, Repair, and Replacement Procedures: Follow the recommended inspection and maintenance procedures provided by the manufacturer.
3. Replacement Parts and Rebuilding Services: Offer replacement parts and rebuilding services to extend the lifespan of the hydraulic cylinder.
4. Tips for Prolonging the Life of the Cylinder: Share techniques to enhance the durability and lifespan of the hydraulic cylinder.

About Our Company

We are a leading manufacturer and wholesale distributor of hydraulic cylinders in both domestic and international markets. Our company offers a wide range of replacement hydraulic cylinders to meet various industry needs.
