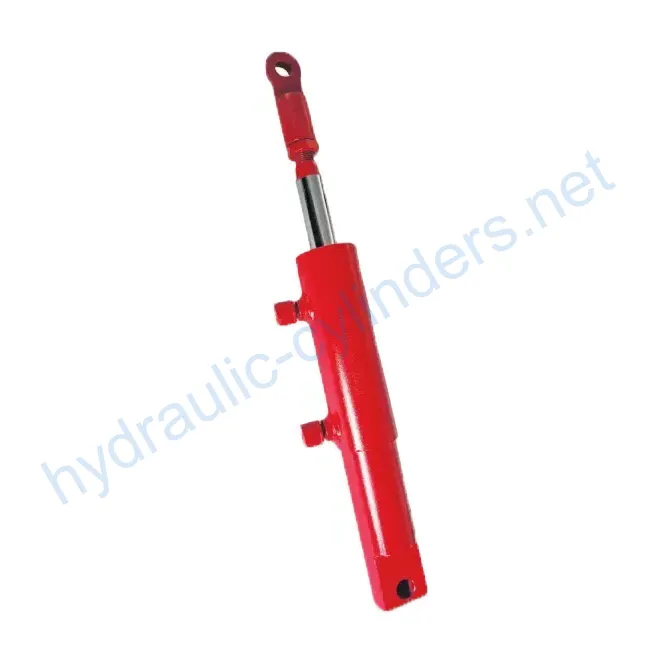

YS40F Continuously Variable Transmission Oil Cylinder

Introduction to the YS40F Continuously Variable Transmission Oil Cylinder

The YS40F Continuously Variable Transmission Oil Cylinder is a crucial component in hydraulic systems, particularly in applications that require seamless power transmission and control. This hydraulic cylinder is designed to provide reliable performance by allowing for constant speed adjustments without the need for manual shifts. With its exceptional design and robust functionality, the YS40F is essential for enhancing the efficiency of various machinery, making it an indispensable part of modern hydraulic systems.

This hydraulic cylinder operates by converting hydraulic energy into linear motion, facilitating tasks that require precise movement and force application. The YS40F is engineered to meet the demanding needs of industrial applications, where durability and efficiency are paramount. Its ability to provide continuous variable transmission ensures that machinery operates smoothly, reducing wear and tear and extending the lifespan of equipment.

Product Specifications

Technical Parameters

• Cylinder Diameter: 40mm
• Rod Diameter: 22mm
• Travel: 65mm
• Installation Distance: 418mm

Features of the YS40F Cylinder

The YS40F is equipped with several features that set it apart from other hydraulic cylinders:

• High durability with quality materials for long-lasting performance.
• Compact design that easily fits into various machinery without space constraints.
• Efficient sealing mechanisms to prevent leaks and enhance performance.
• Customizable options for specific industrial applications.
• Expert manufacturing processes that ensure precision and reliability.

Our company specializes in producing this hydraulic cylinder, which can perfectly replace existing cylinders with similar specifications, ensuring compatibility and performance.

Applications of the YS40F Hydraulic Cylinder

The YS40F hydraulic cylinder finds applications in various industries:

• Automotive Industry: Used in automatic transmissions, the YS40F ensures smooth gear shifting and power delivery, enhancing vehicle performance.
• Aerospace: In aircraft systems, it helps in controlling flaps and landing gear, providing reliable operation under diverse conditions.
• Manufacturing Equipment: Utilized in robotics and automation, allowing precise control of movement in assembly lines.
• Construction Machinery: Essential in heavy equipment for lifting and moving loads, contributing to overall operational efficiency.
• Marine Applications: Supports steering systems and other hydraulic functions, ensuring reliable operation on watercraft.

Design Considerations and Selection Criteria

Load Capacity

The design of the YS40F hydraulic cylinder focuses on maximizing load capacity. Engineers meticulously calculate the stress factors involved to ensure the cylinder can handle the intended loads without failure. This involves selecting the right materials that offer strength while minimizing weight, thus improving efficiency and performance.

Sealing Efficiency

Effective sealing is critical in hydraulic systems to prevent leaks and maintain pressure. The YS40F employs advanced sealing technologies, including O-rings and rod seals made from high-quality materials, ensuring long-lasting performance. The design also accounts for thermal expansion and contraction, thereby enhancing the reliability of the seals under varying temperatures.

Durability

Durability is a key factor in the design of the YS40F cylinder. The cylinder is built to withstand harsh operating conditions, including extreme temperatures and pressures. Selecting the right coatings and surface treatments enhances wear resistance, prolonging the lifespan of the component.

Safety Features

Safety is paramount in hydraulic systems. The YS40F incorporates features such as pressure relief valves and robust structural designs to minimize the risk of failures. These safety measures are critical in preventing accidents and ensuring the safe operation of machinery.

Maintenance Considerations

Lastly, ease of maintenance is a vital aspect of the design. The YS40F is designed to facilitate quick inspections and repairs, minimizing downtime. Engineers consider the accessibility of critical components during the design phase to ensure that maintenance tasks can be performed efficiently.

Sealing and Lubrication of the YS40F Hydraulic Cylinder

Proper sealing and lubrication are essential for the optimal performance of the YS40F hydraulic cylinder. Various sealing components are utilized, including piston seals and rod seals, crafted from durable materials such as polyurethane and nitrile rubber, ensuring they can withstand wear and tear over time.

The cylinder body and threaded ends undergo precise finishing processes to enhance surface durability, which significantly reduces wear. Regular lubrication with hydraulic oil is necessary to maintain functionality and prevent internal damage. Users are advised to perform this maintenance regularly to ensure smooth operation and longevity of the hydraulic system.

Regular Inspections and Preventive Maintenance Measures

• Regular Checkups: Routine inspections should be scheduled to check for leaks, wear, and proper function. Identify any abnormalities early to prevent failure.
• Lubrication: Ensure that the hydraulic oil levels are adequate and that proper lubrication is maintained. This helps reduce friction and wear on the seals and moving components.
• Seal Replacement: Monitor the condition of the seals regularly and replace them as necessary. Worn seals can lead to leaks and reduced efficiency.

Each of these maintenance tasks is crucial for the long-term performance of the YS40F hydraulic cylinder and should be performed meticulously.

Installation Guidelines for the YS40F Cylinder

Proper installation of the YS40F hydraulic cylinder is vital to ensure optimal performance. Follow these steps for correct installation:

1. Preparation: Before installation, ensure the workspace is clean and that all tools and materials are ready.
2. Alignment: Align the cylinder accurately with the intended mounting points. Misalignment can cause undue stress and potential failure.
3. Installation Supports: Use appropriate mounting brackets to secure the cylinder in place, ensuring it is stable and correctly positioned.
4. Hydraulic Connections: Connect hydraulic lines carefully, ensuring there are no leaks. Use the correct fittings to ensure a secure connection.
5. Testing: Once installed, test the cylinder under load conditions to verify proper operation before putting it into full service.

Common Maintenance Tasks

Regular maintenance tasks for the YS40F include:

• Regular Inspections: Checking for signs of wear and tear or leaks is essential in maintaining the performance of the hydraulic cylinder. Regular visual inspections can catch potential problems before they escalate.
• Lubrication: Proper lubrication is critical. Ensure that hydraulic oil is changed as recommended and that the cylinder is adequately lubricated to reduce friction and wear.
• Seal Replacement: Regularly monitor and replace seals to prevent leaks. Worn seals can lead to reduced performance and efficiency, so timely replacement is key.

These maintenance tasks are crucial for ensuring the longevity and effectiveness of the YS40F hydraulic cylinder. Correct installation, lubrication, and adjustment are vital to its operation, and using the right techniques can significantly enhance its lifespan.

Safety Considerations and Environmental Factors

When using the YS40F hydraulic cylinder, safety measures should be prioritized. Operators must be aware of the potential hazards associated with hydraulic systems, such as high pressure and fluid leaks. Proper training and adherence to safety protocols can help mitigate risks.

Additionally, consider the environmental impact of hydraulic fluid used in these systems. Employing biodegradable oils can help reduce ecological harm in case of leaks, contributing to a more environmentally friendly operation.

Fault Diagnosis and Common Issues

Common issues associated with the YS40F hydraulic cylinder can include:

• Leakage: Often caused by worn seals or improper installation. Regular inspections can help identify and address leaks promptly.
• Pressure Loss: Can occur due to blockages or leaks in the hydraulic lines. Ensure all connections are secure and unobstructed.
• Unresponsive Movement: This may indicate low hydraulic fluid levels or issues with the hydraulic pump. Check fluid levels and pump functionality regularly.

Troubleshooting Tips and Solutions

To effectively diagnose and solve problems with the YS40F hydraulic cylinder, consider the following tips:

• Leak Detection: If a leak is suspected, inspect seals and connections thoroughly. Replace any worn components immediately to prevent further issues.
• Fluid Levels: Regularly check hydraulic fluid levels. If low, refill with the recommended fluid and inspect for sources of loss.
• Regular Maintenance: Implement routine maintenance strategies to catch issues early, minimizing downtime and repair costs.

About Our Company

We are a leading manufacturer of hydraulic cylinders, offering a comprehensive range of products that cater to both domestic and international markets. As one of the top hydraulic cylinder manufacturers and wholesalers, we pride ourselves on our professional expertise and commitment to quality.

Our facilities are equipped with state-of-the-art production equipment, allowing us to produce high-quality hydraulic cylinders that meet international standards. We also offer customized services to meet specific customer requirements, ensuring that our products are perfectly suited for various applications.

Additionally, our robust after-sales service ensures that our clients receive ongoing support and guidance, further solidifying our reputation in the industry.
