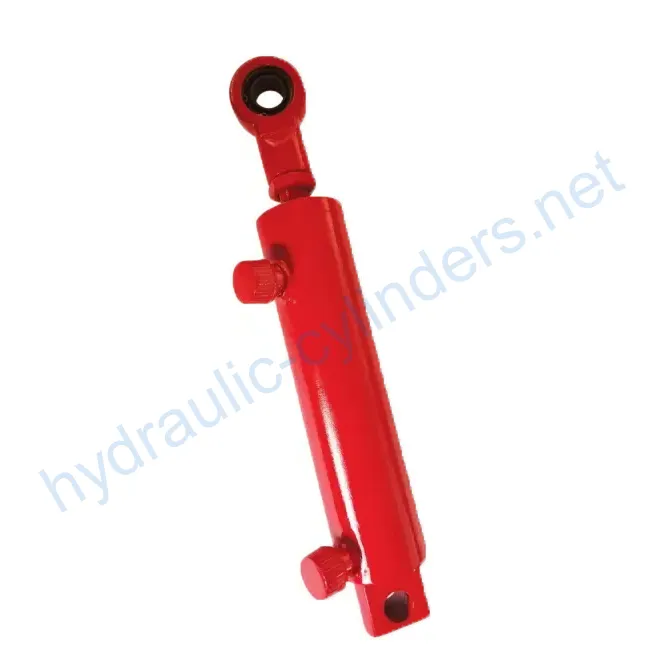

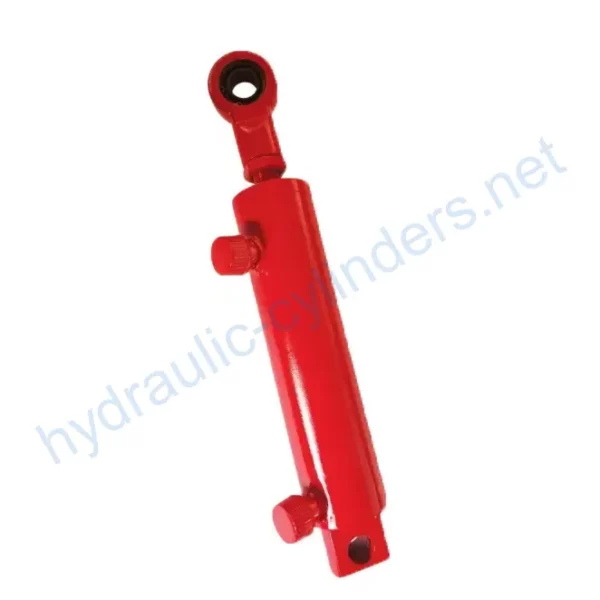

YS50E-001 Steering Cylinder

Product Introduction

The YS50E-001 Steering Cylinder is an essential hydraulic component designed to facilitate the steering mechanism in various vehicles and machinery. This hydraulic cylinder converts hydraulic energy into mechanical force, providing the necessary power to move and control the steering system effectively. With its precision engineering, the YS50E-001 ensures smooth operation and enhanced maneuverability, making it ideal for applications in automotive, agricultural, and industrial equipment. The cylinder??s robust construction allows it to withstand high pressure and demanding conditions, ensuring longevity and reliability in performance.

Product Specifications

• Cylinder Diameter: 50mm
• Rod Diameter: 25mm
• Travel: 153mm
• Installation Distance: 349mm

These specifications highlight the dimensions and capabilities of the YS50E-001, emphasizing its suitability for both light and heavy-duty applications. The cylinder diameter determines the force output, while the rod diameter balances strength and weight, allowing for efficient performance.

Features of the YS50E-001

• High-pressure tolerance for enhanced durability
• Precision-engineered for optimal performance
• Compact design for versatile installation
• Corrosion-resistant materials for extended lifespan
• Customizable options for specific applications

We manufacture this product with high-quality standards, ensuring it can perfectly replace existing hydraulic cylinders in various systems.

Applications of the YS50E-001

1. Automotive Steering Systems

The YS50E-001 is widely used in automotive steering systems, providing precise control and responsiveness. It ensures smooth operations during vehicle maneuvers, enhancing driver safety and comfort. This cylinder works seamlessly with other hydraulic components to ensure efficient steering, especially during high-speed travel or tight turns.

2. Agricultural Equipment

In the agricultural sector, the YS50E-001 hydraulic cylinder plays a crucial role in steering tractors and other heavy machinery. Its robust design allows it to operate effectively in tough environments, providing reliable steering control even in challenging terrains. This ensures that farmers can operate their equipment efficiently, leading to better productivity.

3. Industrial Machinery

Industrial machinery often relies on the YS50E-001 for steering and positioning tasks. Its ability to handle substantial loads makes it suitable for cranes, forklifts, and other heavy equipment. The cylinder’s precise control allows for accurate movements, ensuring safety and efficiency in various industrial applications.

Design Considerations and Selection Criteria

Load Capacity

The load capacity of the YS50E-001 is a critical factor in its design, ensuring it can withstand the pressures encountered during operation. This capacity is determined by the cylinder’s dimensions and the materials used in its construction. Ensuring that the cylinder can handle expected loads prevents premature failure and enhances safety.

Sealing Mechanisms

Effective sealing is paramount to prevent hydraulic fluid leaks and maintain pressure within the system. The YS50E-001 is designed with high-quality seals that ensure longevity and reliability. Proper sealing also enhances the efficiency of the hydraulic system, contributing to overall performance.

Durability and Longevity

Durability is a key consideration in the design of hydraulic cylinders. The YS50E-001 utilizes robust materials and advanced manufacturing techniques to ensure a long service life. This reduces downtime and maintenance costs, making it a cost-effective choice for various applications.

Safety Features

Safety is paramount in hydraulic system design. The YS50E-001 incorporates various safety features, including pressure relief valves and robust construction, to prevent failures during operation. These features protect both the equipment and the operator from potential hazards.

Maintenance and Serviceability

Designing for maintenance ease is crucial in hydraulic systems. The YS50E-001 is engineered for straightforward maintenance procedures, allowing for quick inspections, seal replacements, and hydraulic fluid checks. This ensures that any issues can be promptly addressed, prolonging the cylinder??s lifespan.

Sealing and Lubrication

The YS50E-001 utilizes a variety of sealing components, including piston seals and rod seals, to ensure efficient operation. These seals are made from durable materials such as polyurethane and nitrile rubber, providing excellent wear resistance. Additionally, the cylinder body and threaded ends undergo precision machining to improve wear resistance and enhance overall performance. Regular lubrication with hydraulic oil is essential to maintain optimal function and prevent wear, ensuring long-term reliability.

Preventive Maintenance Measures

• Regular inspections to identify wear and tear
• Timely lubrication to ensure smooth operation
• Seal replacements to maintain pressure integrity

Implementing these measures can prevent unexpected breakdowns and extend the lifespan of the hydraulic cylinder.

Installation Guidelines

Proper installation of the YS50E-001 is vital for optimal performance. Start by ensuring that the installation area is clean and free of debris. Align the cylinder accurately with the mounting brackets, utilizing appropriate supports to secure it in place. It’s essential to follow the manufacturer’s specifications regarding torque settings and alignment procedures. After installation, check the hydraulic connections for leaks and ensure that the cylinder is functioning smoothly. Regularly monitor the alignment and condition of the cylinder to ensure long-term reliability.

Common Maintenance Tasks

1. Regular Inspections

Conducting regular inspections is crucial for identifying potential issues before they escalate. Check for signs of wear, leaks, and integrity of seals. Regular assessments help ensure that the YS50E-001 operates efficiently and safely.

2. Appropriate Lubrication

Maintaining proper lubrication is essential for the longevity of the YS50E-001. Ensure that the hydraulic oil is filled to the recommended levels and is in good condition. This prevents excessive wear and tear on internal components and enhances overall performance.

3. Seal Replacement and Calibration Checks

Seals should be replaced at regular intervals to maintain pressure and prevent hydraulic fluid loss. Additionally, calibration checks ensure that the cylinder operates within the required parameters, providing optimal performance and safety.

Safety Considerations and Environmental Factors

When working with hydraulic systems like the YS50E-001, adhering to safety measures is crucial. Proper training in handling hydraulic equipment, understanding emergency protocols, and using personal protective equipment (PPE) can minimize risks. Furthermore, considering environmental factors such as fluid disposal and contamination prevention is essential to ensure compliance with regulations and promote sustainability.

Troubleshooting and Common Issues

• Hydraulic leaks: Identify the source of the leak and replace seals as necessary.
• Poor performance: Check for proper lubrication and fluid levels.
• Unusual noises: Inspect for any loose components or wear that may require attention.

Providing tips on troubleshooting can help users effectively identify and resolve issues, ensuring the smooth operation of the YS50E-001.

Conclusion: Our Company

As a leading manufacturer of hydraulic cylinders, we take pride in offering a comprehensive range of products, including the YS50E-001. Our expertise and commitment to quality have established us as a prominent player in both domestic and international markets. We prioritize professional service, international certifications, and customization options to meet diverse client needs. Our state-of-the-art production equipment and dedicated after-sales support ensure customer satisfaction and product reliability.

Author: lyl
