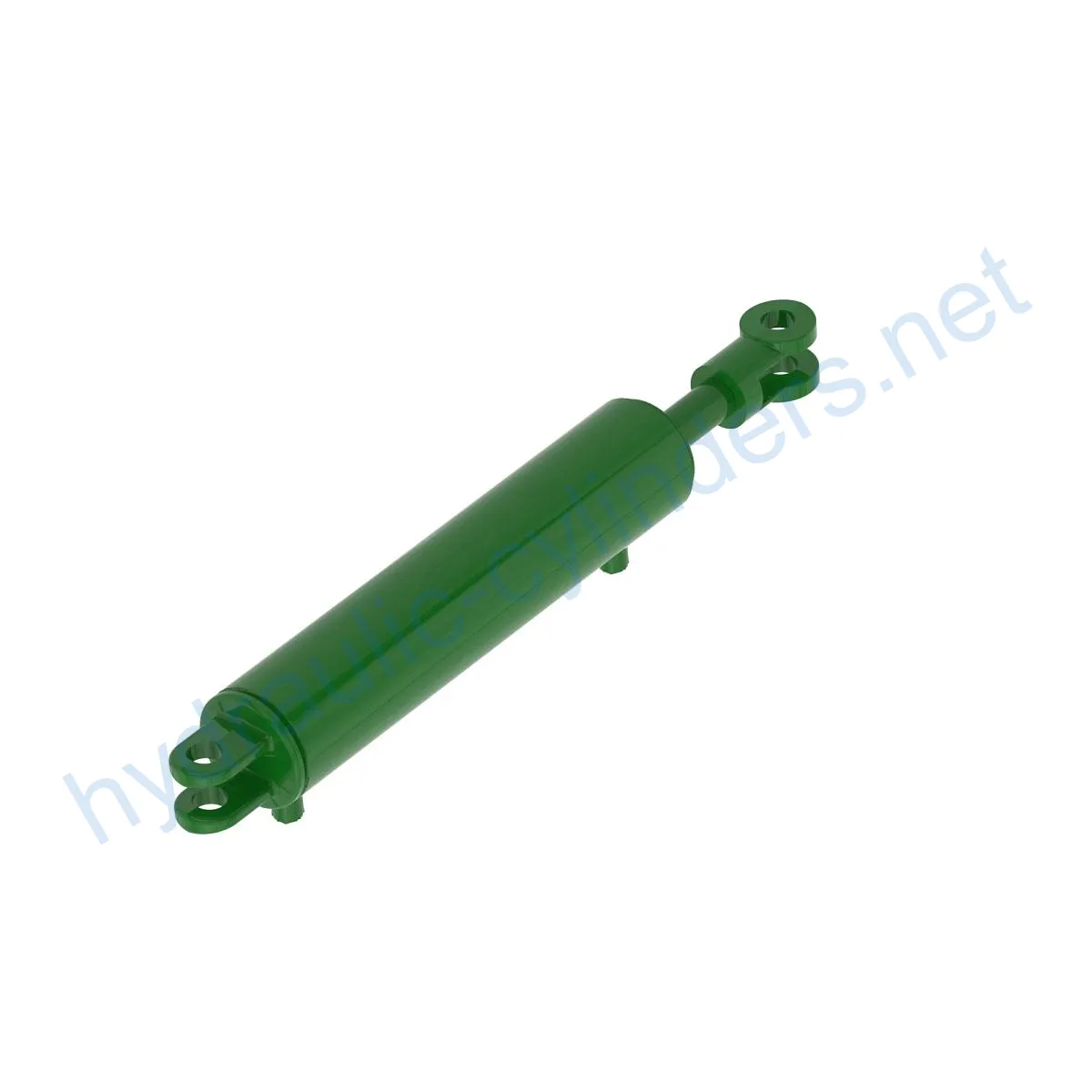

Replacement of AH176901 Hydraulic Cylinder

The Replacement of AH176901 Hydraulic Cylinder is a type of hydraulic cylinder that is used to replace damaged or worn-out hydraulic cylinders in heavy equipment. It has a weight of 57.45 lb, a height of 4.5 in, a width of 6.25 in, and a length of 34 in. The Replacement of AH176901 Hydraulic Cylinder is compatible with the following machine models: 726, 740A, 750A, 2230FH, 2230LL, 2510C, 2510H, and 2510S.

Product Definition

The Replacement of AH176901 Hydraulic Cylinder is a device that uses pressurized hydraulic fluid to produce linear motion and force. It is commonly used in heavy equipment such as excavators, cranes, tractors, harvesters, and mining equipment to power various parts of the machinery. It is also used in automated production lines to control the movement of robotic arms and other automated devices.

Product Specifications and Compatibility

The Replacement of AH176901 Hydraulic Cylinder has a weight of 57.45 lb, a height of 4.5 in, a width of 6.25 in, and a length of 34 in. It is compatible with the following machine models: 726, 740A, 750A, 2230FH, 2230LL, 2510C, 2510H, and 2510S.

Product Features

• Improved Equipment Performance: Replacing damaged or worn-out hydraulic cylinders can restore the normal operating capabilities of heavy equipment, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failure, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often include better overload protection mechanisms, enhancing safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, reducing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

We can produce Replacement of AH176901 Hydraulic Cylinder that can perfectly replace these hydraulic cylinders.

Applications

The Replacement of AH176901 Hydraulic Cylinder has a wide range of applications in heavy equipment. Here are some examples:

1. Excavator

   The hydraulic cylinders in the arm or bucket of an excavator may be damaged due to long-term use or overload, requiring replacement to restore normal operation.

2. Crane

   The hydraulic cylinders in a crane’s lifting arm are prone to wear and tear during frequent lifting and lowering, requiring regular replacement to ensure safety.

3. Tractor

   The hydraulic cylinders in the front-end loader of a tractor can develop leaks or reduced performance due to constant lifting and tilting operations, requiring replacement.

4. Harvester

   The hydraulic system in a harvester is subject to high pressure during operation, and the cylinder may become damaged due to fatigue, requiring timely replacement to maintain work efficiency.

5. Automated Production Line

   Hydraulic cylinders are used in automated production lines to control robotic arms and other automated equipment. Cylinder failure can affect production efficiency and requires immediate replacement.

6. Die Casting Machine

   Hydraulic cylinders in die casting machines may experience reduced performance in high pressure and high-temperature environments. Regular replacement can ensure product quality.

7. Mining Equipment

   Hydraulic cylinders are used to lift and move heavy loads in mining equipment. Due to the harsh working environment, regular inspection and replacement are necessary to avoid equipment failures.

8. Bulldozer

   The wear of hydraulic cylinders on the bulldozer’s push arm can lead to reduced pushing ability, requiring timely replacement to maintain operational efficiency.

Maintenance

Regular maintenance is essential to ensure the longevity and performance of the Replacement of AH176901 Hydraulic Cylinder. Here are three common maintenance tasks:

1. Regular Inspection

   Regular inspection of the cylinder can detect any damage or wear and tear. It is recommended to inspect the cylinder every six months or after 500 hours of use.

2. Proper Lubrication

   The cylinder requires proper lubrication to ensure optimal performance. It is recommended to use hydraulic oil with a viscosity of ISO VG 32 to 46.

3. Seal Replacement and Calibration Check

   Replacing worn-out seals and checking the cylinder’s calibration can improve the cylinder’s performance and prevent leaks. It is recommended to replace the seals every 1,000 hours of use.

Proper installation, lubrication, and adjustment are crucial to ensure the proper functioning of the Replacement of AH176901 Hydraulic Cylinder. During installation, it is recommended to provide proper alignment of the cylinder and use appropriate installation brackets to secure the cylinder. Recommended inspection, repair, and replacement procedures are provided, along with replacement parts and rebuilding services to increase the life of the hydraulic cylinder.

Product Safety and Environmental Considerations

When using the Replacement of AH176901 Hydraulic Cylinder, it is important to follow safety measures such as wearing personal protective equipment and ensuring proper handling of hydraulic fluid. Proper disposal of hydraulic fluid and damaged hydraulic cylinders is essential to protect the environment.

Troubleshooting and Common Problems

Here are some common problems that can occur with hydraulic cylinders:

• Leaking Seals: Worn-out seals can cause leaks, which can reduce the cylinder’s performance.
• Excessive Piston Rod Runout: This can cause side loading on the seals, leading to leaks and reduced performance.
• Cylinder Drift: Internal leakage can cause the cylinder to drift from its position.

To troubleshoot these problems, it is recommended to inspect the cylinder and replace worn-out parts. Proper installation, lubrication, and calibration can also prevent these issues.

Design Considerations and Selection Criteria

The Replacement of AH176901 Hydraulic Cylinder has been designed with various considerations such as load-bearing capacity, sealing, durability, safety, and maintenance. Here are some important design considerations:

• Load-Bearing Capacity: The cylinder should be able to withstand the load and pressure of the heavy equipment it is used in.
• Sealing: The cylinder should have proper seals and gaskets to prevent leaks.
• Durability: The cylinder should be made of high-quality materials that can withstand wear and tear.
• Safety: The cylinder should have appropriate safety features such as overload protection.
• Maintenance: The cylinder should be designed for easy maintenance and repair.

Proper sealing and lubrication are essential to ensure the longevity and performance of the Replacement of AH176901 Hydraulic Cylinder. The cylinder should be fitted with appropriate seals such as piston seals and rod seals made of wear-resistant materials such as polyurethane or nitrile rubber. The cylinder body and thread end surfaces should be finely processed to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil can ensure optimal performance and prevent leaks.

Regular inspection and preventive maintenance can prevent issues with the Replacement of AH176901 Hydraulic Cylinder. It is recommended to inspect the cylinder every six months or after 500 hours of use, replace worn-out seals every 1,000 hours of use, and check the calibration of the cylinder regularly.

About Our Company

We are a manufacturer of replacement hydraulic cylinders with a wide range of products and have become one of the leading manufacturers and wholesale distributors of hydraulic cylinders in domestic and international markets. Our company offers professional services, international certifications, customized services, advanced production equipment, and excellent after-sales service.
