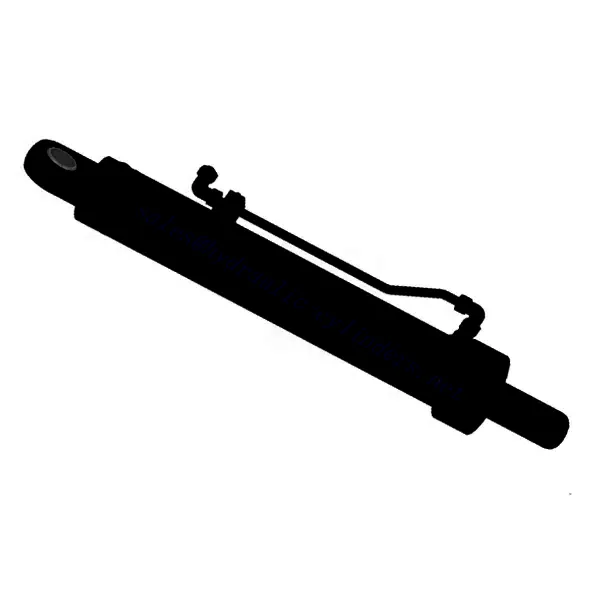

Ro-ro platform donkraftcylinder

The ro-ro platform jacking cylinder is a cutting-edge hydraulic device that optimizes roll-on/roll-off (ro-ro) operations. This innovative cylinder provides efficient and reliable lifting capabilities, allowing for the safe and seamless loading and unloading of cargo onto ro-ro platforms. With its exceptional features and robust construction, the ro-ro platform jacking cylinder is an indispensable tool for companies seeking to enhance efficiency, productivity, and safety in their logistics operations.

The ro-ro platform jacking cylinder revolutionizes ro-ro operations with its powerful lifting capacity, precise control, and compact design. Companies can maximize the cylinder’s performance, efficiency, and safety by following the recommended usage methods and implementing regular maintenance practices. With the ro-ro platform jacking cylinder as a valuable asset, businesses can streamline their logistics operations, enhance productivity, and ensure the secure and efficient loading and unloading of cargo in ro-ro applications.

Ro-ro Platform Jacking Cylinder Key Characteristics:

1. Powerful Lifting Capacity: The ro-ro platform jacking cylinder boasts a robust hydraulic system with impressive lifting capacity. It can effortlessly elevate heavy loads, ensuring smooth and efficient cargo handling.
2. Precise Control: This cylinder offers precise control over the lifting process, allowing operators to adjust the elevation accurately. The fine control ensures proper alignment and prevents cargo and platform damage.
3. Compact and Space-Saving Design: The ro-ro platform jacking cylinder is compact and ideal for limited-space applications. Its compact size allows easy integration into existing ro-ro platforms while minimizing the overall footprint.
4. Enhanced Safety Features: Safety is a top priority in ro-ro operations, and the ro-ro platform jacking cylinder delivers. It has advanced safety features such as overload protection, pressure relief valves, and fail-safe mechanisms, ensuring secure and reliable lifting operations.

Ro-ro Platform Jacking Cylinder Parameter:

Ro-ro-platformens primære driftscylinderapplikation:

Usage Method Of Ro-ro Platform Jacking Cylinder:

• Installation:  The ro-ro platform jacking cylinder is typically installed beneath the ro-ro platform or integrated into the platform structure. It is securely mounted using suitable brackets and hardware, ensuring proper alignment and stability.
• Aktivering: Once installed, the hydraulic system activates the cylinder. Depending on the specific setup, this can be done manually by operating control valves or through automated control systems.
• Lifting Process: To lift the ro-ro platform, the operator adjusts the control valve, allowing hydraulic fluid to flow into the cylinder. The pressurized fluid extends the cylinder, raising the platform to the desired height.
• Højdejustering:  The Ro-ro Platform Jacking Cylinder provides flexibility in height adjustment. Operators can fine-tune the lifting process by controlling the fluid flow rate or adjusting the control valve position, ensuring precise alignment with loading docks or ships.

How Do You Measure A Hydraulic Cylinder?

Measuring a hydraulic cylinder involves determining its key dimensions, such as the bore diameter, rod diameter, stroke length, and overall length. These measurements are essential for selecting the appropriate replacement cylinder or assessing the cylinder’s performance. Here are the steps to measure a hydraulic cylinder:

1. Bore Diameter: The bore diameter refers to the inside diameter of the cylinder barrel. To measure it, follow these steps:
   a. Remove the cylinder from its mounting if necessary, ensuring it is depressurized and disconnected from any power source.
   b. Locate the end of the cylinder barrel where the piston rod extends or retracts.
   c. Use a caliper or measuring tape to measure the inside diameter of the barrel at this point. Ensure the measurement is taken across the center, perpendicular to the barrel’s axis.
2. Stangdiameter: The rod diameter refers to the diameter of the piston rod extending from the cylinder. To measure it, follow these steps:
   a. Extend the piston rod fully from the cylinder, if possible, without applying excessive force.
   b. Measure the diameter of the rod using a caliper or measuring tape. Ensure that the measurement is taken across the center of the rod.
3. Slaglængde: The stroke length is the distance the piston rod can travel inside the cylinder. To measure it, follow these steps:
   a. Fully extend the piston rod and measure the distance from the end of the rod to the mounting surface or the opposite end of the cylinder.
   b. Ensure that the measurement is taken along the centerline of the cylinder.
4. Overall Length: The overall length is the measurement from one end of the cylinder to the other, including the mounting surfaces. To measure it, follow these steps:
   a. Place the cylinder on a flat surface and measure the distance between the mounting surfaces or the ends of the barrel.
   b. Ensure that the measurement is taken along the centerline of the cylinder.

Fabrikkens kapacitet og kapacitet:

(1) Samling

Vi har en førsteklasses uafhængig forsknings- og udviklingsplatform til montering. Værkstedet for produktion af hydrauliske cylindre har fire halvautomatiske løftecylindermonteringslinjer og en automatisk vippecylindermonteringslinje med en designmæssig årlig produktionskapacitet på 1 million enheder. Det specielle cylinderværksted er udstyret med forskellige specifikationer for et halvautomatisk rengøringsmonteringssystem med en designmæssig årlig produktionskapacitet på 200.000 og udstyret med berømt CNC-bearbejdningsudstyr, et bearbejdningscenter, et specialudstyr til højpræcisionscylinderbearbejdning, en robotsvejsemaskine, en automatisk rengøringsmaskine, en automatisk cylindermonteringsmaskine og en automatisk malingslinje. Eksisterende kritisk udstyr på mere end 300 sæt (sæt). Optimal allokering og effektiv udnyttelse af udstyrsressourcer sikrer produkternes nøjagtighedskrav og opfylder produkternes høje kvalitetsbehov.

(2) Maskinbearbejdning

Bearbejdningsværkstedet er udstyret med et specialfremstillet drejecenter til skrå skinner, bearbejdningscenter, højhastigheds-honemaskine, svejserobot og andet relateret udstyr, der kan håndtere bearbejdning af cylinderrør med en maksimal indre diameter på 400 mm og en maksimal længde på 6 meter.

(3) Svejsning

(4) Maling og overfladebehandling

Med små og mellemstore cylindriske automatiske vandbaserede malingsbelægningslinjer, for at opnå automatisk robotpåfyldning og -aflæsning samt automatisk sprøjtning, er den designmæssige kapacitet på 4000 stykker pr. skift;
Vi har også en halvautomatisk malingsproduktionslinje til store cylindre drevet af en kabelkæde med en designkapacitet på 60 kasser pr. skift.

(5) Testning

Vi har førsteklasses inspektionsfaciliteter og testbænke for at sikre, at cylinderens ydeevne opfylder kravene.

Vi er en af ​​de bedste producenter af hydrauliske cylindre. Vi kan tilbyde et omfattende udvalg af hydrauliske cylindre. Vi leverer også tilsvarende landbrugsgearkasserVi har eksporteret vores produkter til kunder over hele verden og har opnået et godt omdømme på grund af vores overlegne produktkvalitet og eftersalgsservice. Vi byder kunder i ind- og udland velkommen til at kontakte os for at forhandle forretninger, udveksle information og samarbejde med os!
