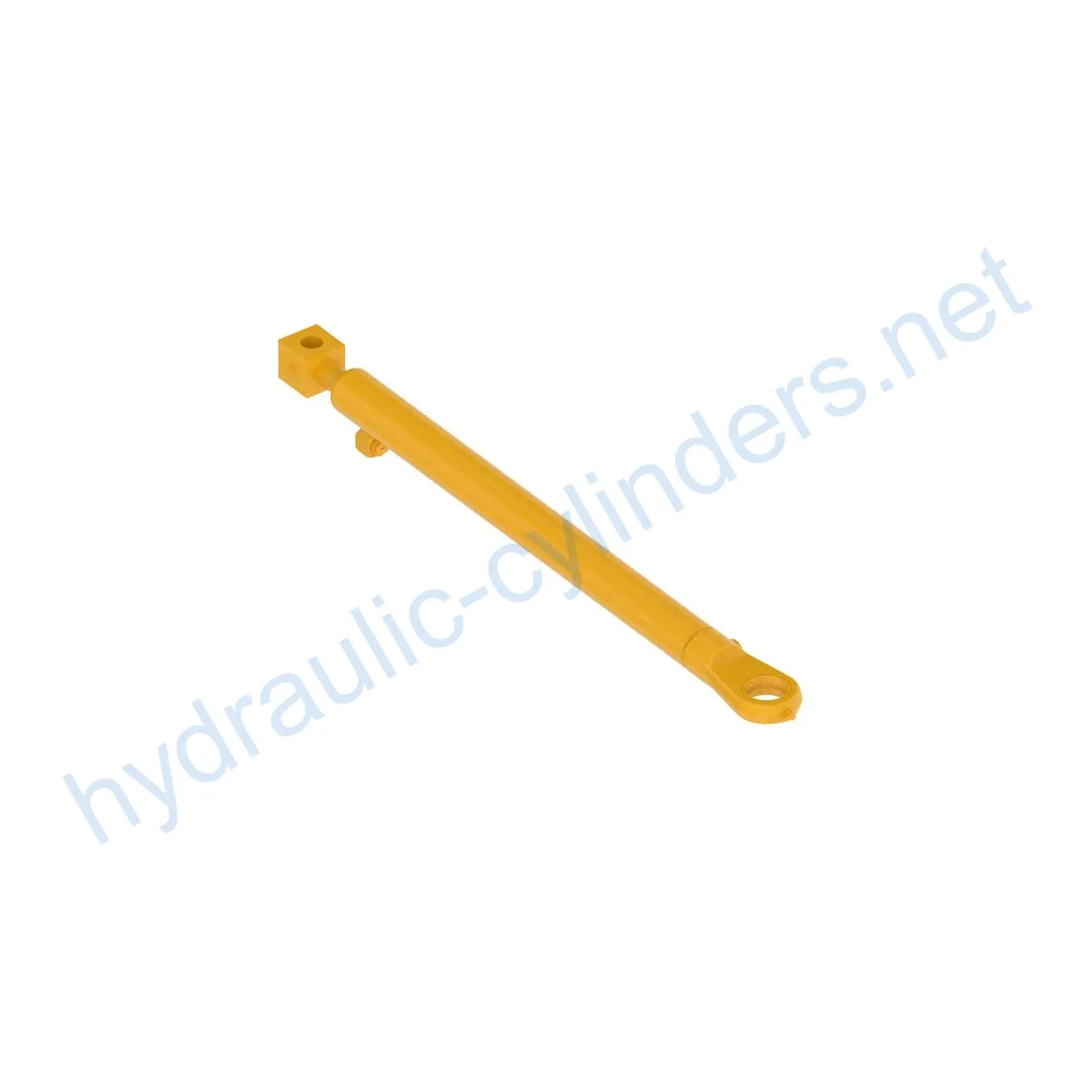

Replacement Of AH212292 Hydraulic Cylinder

Introduction: The Replacement Of AH212292 Hydraulic Cylinder is a crucial component in various machinery, serving the purpose of ensuring smooth and efficient hydraulic operations. This hydraulic cylinder is designed to replace the original AH212292 model, providing a reliable and high-performance alternative.

Specifications:

• Weight: 40 lb
• Height: 4 in
• Width: 4.5 in
• Length: 41.8 in

Compatible Models:

The Replacement Of AH212292 Hydraulic Cylinder is compatible with the 317 and 320 models, ensuring a seamless fit and optimal performance in these specific machines.

Features:

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operation capacity of the equipment, ensuring its performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often integrate better overload protection mechanisms, enhancing safety during operation.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

We specialize in the production of this replacement hydraulic cylinder, offering a perfect alternative to the AH212292 model. Our products are manufactured to the highest standards, ensuring superior quality and performance.

Applications:

• Excavators: The hydraulic cylinder may need replacement on the arm or bucket of excavators due to long-term usage or overload, restoring normal operations.
• Cranes: The hydraulic cylinder in the lifting arm of cranes is prone to wear during frequent lifting and lowering, requiring regular replacement for safety assurance.
• Tractors: The front loader hydraulic cylinder in tractors can develop leaks or performance decline during continuous lifting and tilting operations, necessitating replacement.
• Harvesters: The hydraulic system undergoes high pressure during the harvesting process, and cylinders may get damaged due to fatigue, requiring timely replacement to maintain work efficiency.
• Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency and should be replaced immediately.
• Die Casting Machines: In high-pressure and high-temperature environments, hydraulic cylinders may experience performance decline. Regular replacement ensures product quality.
• Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh working conditions, regular inspection and replacement are necessary to avoid equipment failures.
• Bulldozers: The wear of hydraulic cylinders on the dozer blade of bulldozers can lead to a decrease in pushing capacity, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks:

Regular maintenance is essential to ensure the longevity and optimal performance of the Replacement Of AH212292 Hydraulic Cylinder. The following tasks should be performed:

1. Regular Inspection: Periodically inspect the hydraulic cylinder for any signs of damage or wear. Consult the manufacturer’s guidelines for specific inspection procedures.
2. Proper Lubrication: Adequate lubrication is crucial for the smooth operation of the hydraulic cylinder. Use the recommended lubricants and follow the lubrication schedule provided by the manufacturer.
3. Seal Replacement: Over time, seals may deteriorate and affect the performance of the hydraulic cylinder. Replace worn or damaged seals promptly to maintain optimal functionality.
4. Calibration Check: Periodically check and calibrate the hydraulic cylinder to ensure accurate and precise operation. Follow the calibration procedures outlined by the manufacturer.

During installation, it is important to provide proper guidance on aligning the cylinder correctly. We recommend using appropriate installation brackets to secure the cylinder in place. We also offer inspection, repair, and replacement services, along with tips to extend the lifespan of the hydraulic cylinder.

Safety Considerations and Environmental Factors:

When working with hydraulic cylinders, safety measures play a vital role in preventing accidents and ensuring the well-being of operators. It is important to follow proper safety protocols and use appropriate personal protective equipment (PPE) when handling hydraulic cylinders. Additionally, considering the environmental impact, proper disposal of old or damaged cylinders should be carried out in accordance with local regulations.

Troubleshooting and Common Issues:

When encountering problems with the Replacement Of AH212292 Hydraulic Cylinder, the following troubleshooting steps can help diagnose and resolve issues:

1. Leakage: If there is a hydraulic fluid leak, check the cylinder’s seals and connections for damage or looseness. Replace any faulty seals and tighten connections as necessary.
2. Slow or Inconsistent Operation: Inspect the hydraulic lines and valves for blockages or restrictions. Clean or replace any clogged components to restore proper operation.
3. Abnormal Noise: Unusual noises during cylinder operation could indicate internal damage or misalignment. Conduct a thorough inspection and make necessary adjustments or replacements.
4. Insufficient Force: If the cylinder fails to provide sufficient force, check the hydraulic system for low fluid levels or pump malfunctions. Address these issues accordingly to restore the cylinder’s performance.

It is important to note that proper maintenance and prompt repairs can significantly reduce the occurrence of potential problems. Regularly inspecting the hydraulic cylinder and implementing preventive measures can help avoid costly downtime and ensure long-term reliability.

Design Considerations and Selection Criteria:

When considering the design of hydraulic cylinders, several important factors should be taken into account:

• Load-Bearing Capacity: The hydraulic cylinder should be designed to withstand the maximum load it will be subjected to, ensuring safe and reliable operation.
• Sealing Integrity: Effective seals, such as piston seals and rod seals made from durable materials like polyurethane and nitrile rubber, are essential to prevent fluid leakage and maintain performance.
• Durability: The cylinder body and threaded ends should undergo meticulous surface treatments to enhance wear resistance and prolong the cylinder’s lifespan.
• Safety Features: Hydraulic cylinders should incorporate safety features such as overload protection mechanisms to prevent damage due to excessive force or pressure.
• Maintainability: Easy access to internal components and the availability of replacement parts contribute to efficient maintenance and minimize downtime.

Sealing and Lubrication:

Hydraulic cylinders employ various sealing elements to maintain fluid integrity and prevent leakage. These include piston seals, rod seals, and wipers. These seals are typically made from materials such as polyurethane or nitrile rubber to ensure durability and resistance to wear. Furthermore, the cylinder body and threaded ends undergo meticulous surface treatment to improve wear resistance and minimize friction. Regular lubrication with the appropriate hydraulic oil is essential to reduce wear and maintain smooth cylinder operation.

Regular Inspection and Preventive
