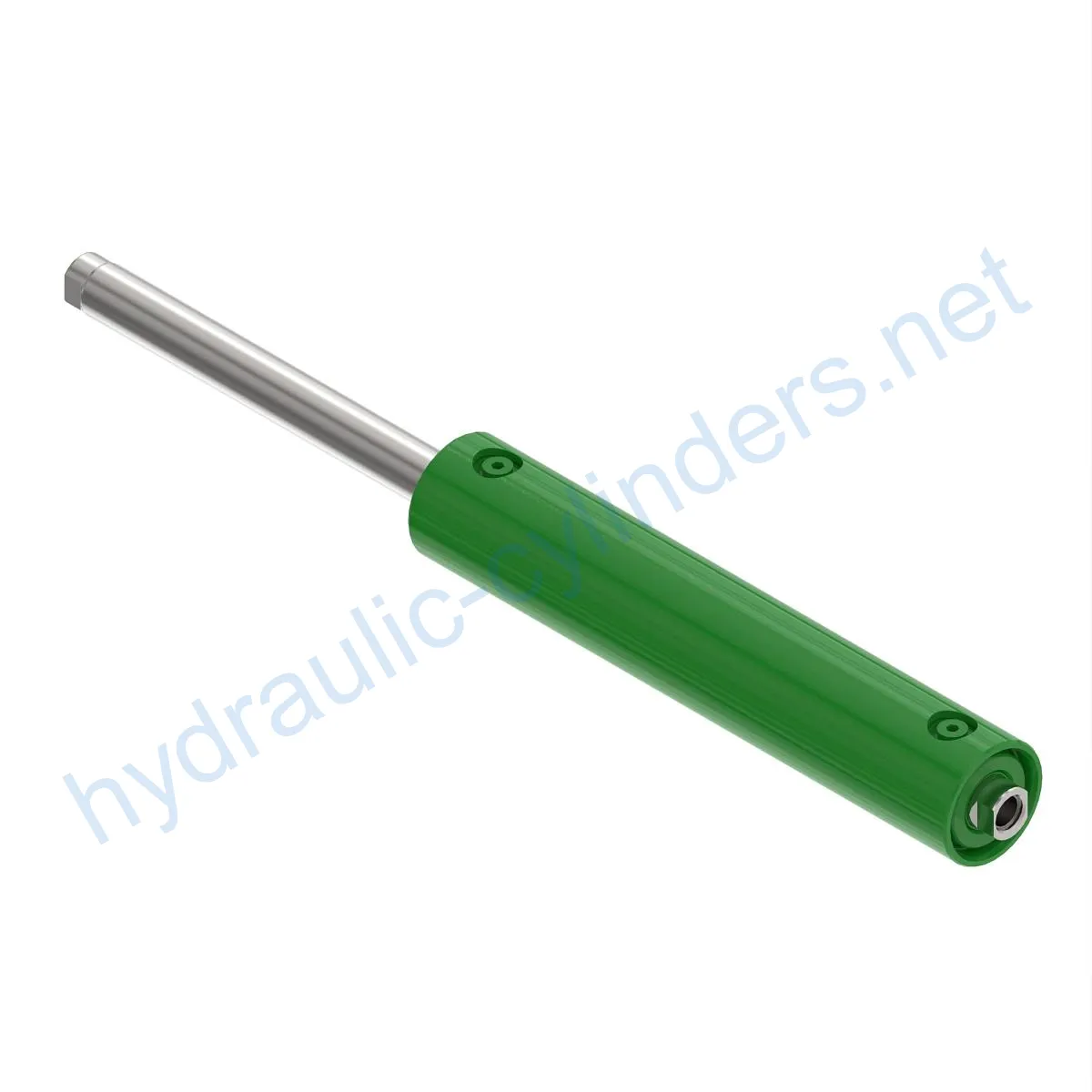

Replacement Of AHC10040 Steering Hydraulic Cylinder

Introduction

The Replacement Of AHC10040 Steering Hydraulic Cylinder is an essential component in various heavy machinery such as excavators, cranes, tractors, harvesters, automated production lines, bulldozers, and mining equipment. The hydraulic cylinder is responsible for generating force and motion by converting fluid pressure into mechanical force to lift, push or pull the loads.

Specifications and Models

The Replacement Of AHC10040 Steering Hydraulic Cylinder weighs 42.48 lbs, has a height of 3.3 inches, and a length of 35.6 inches. It is compatible with S7 600, S7 700, S7 800, S7 850, S7 900, S660, S670, S670H, S680, S680H, S685, S685H, S690, S690H, S760, S770, S780, S780 PRECISION UPGRADES, S785, S790, and S790 PRECISION UPGRADES models.

Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operating capabilities, ensuring its performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder malfunctions, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs usually consider better overload protection mechanisms, enhancing safety.
• Quick Installation: Modern hydraulic cylinder designs usually consider easy installation and replacement, reducing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

Our company produces this product, and our product can perfectly replace these hydraulic cylinders.

Applications

The Replacement Of AHC10040 Steering Hydraulic Cylinder is used in various heavy machinery such as:

1. Excavators: The hydraulic cylinder in the arm or bucket of an excavator may become damaged due to long-term use or overload and needs replacement to restore normal operation.
2. Cranes: The crane’s boom hydraulic cylinder is prone to wear during frequent lifting and lowering, requiring periodic replacement to ensure safety.
3. Tractors: The front-end loader hydraulic cylinder on a tractor can experience leaks or decreased performance during continual lifting and tilting operations, requiring replacement.
4. Harvesters: During harvesting, the hydraulic system undergoes high pressure, and cylinders may become damaged due to fatigue, requiring timely replacement to maintain work efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robot arms and other automated equipment. If cylinders malfunction, it can affect production efficiency, requiring immediate replacement.
6. Bulldozers: The wear and tear of the hydraulic cylinder on the bulldozer’s blade can lead to a decrease in pushing capacity and requires timely replacement to maintain efficiency.
7. Mining Equipment: Hydraulic cylinders are used in mining equipment to lift and move heavy loads. Due to the harsh working environment, they require regular inspection and replacement to avoid equipment failure.

Maintenance

Regular maintenance is crucial for the hydraulic cylinder to guarantee optimal performance. The following are the three common maintenance tasks:

1. Regular Inspection: The hydraulic system should undergo regular inspection to detect any leaks, damage, or performance issues.
2. Appropriate Lubrication: Proper lubrication of the hydraulic cylinder is essential to reduce friction and wear and extend the cylinder’s lifespan. The appropriate lubricant should be used according to the manufacturer’s guidelines.
3. Seal Replacement and Calibration Check: Regular seal replacement and calibration check are essential to ensure the hydraulic cylinder’s optimal performance.

It is important to provide proper alignment guidance during the installation process, recommend using appropriate installation brackets to secure the cylinder, and provide recommended inspection, repair, and replacement procedures, along with rebuilding services and tips to extend the cylinder’s lifespan.

Safety and Environment Considerations

It is vital to observe safety precautions and regulations when handling hydraulic cylinders. This includes wearing protective gear, avoiding exposure to high-pressure fluids, and following safe installation and maintenance procedures. Proper disposal of used hydraulic cylinders is also necessary to protect the environment.

Troubleshooting and Common Problems

The following are common problems associated with hydraulic cylinders:

• Leakage: Leakage is a common issue caused by seal wear or damage. The seal should be replaced immediately to prevent further damage and improve performance.
• Slow Operation: Slow operation can be caused by insufficient fluid or a clogged filter. The fluid level should be checked, and the filter should be cleaned or replaced accordingly.
• Noisy Operation: Noisy operation can be caused by air in the hydraulic system or worn parts. Bleeding the system and replacing the damaged parts can resolve the issue.

Proper maintenance and timely replacement can reduce the occurrence of these issues.

Design Considerations and Selection Criteria

The following design considerations and selection criteria are essential when selecting a hydraulic cylinder:

• Bearing Capacity: The hydraulic cylinder should have the required bearing capacity to perform the intended task effectively.
• Sealing: The hydraulic cylinder should have efficient sealing to prevent fluid leakage and protect the environment.
• Durability: The hydraulic cylinder should be made of durable and wear-resistant materials to withstand harsh working conditions.
• Safety: The hydraulic cylinder should have reliable safety mechanisms to prevent accidents.
• Maintainability: The hydraulic cylinder should have a design that allows easy maintenance and repair.

The hydraulic cylinder should be equipped with various seals, including piston seals, rod seals, among others, made of wear-resistant materials such as polyurethane or nitrile rubber. The cylinder body and thread end surface should be finely processed to improve wear resistance. The hydraulic cylinder should regularly receive proper lubrication using the recommended lubricant.

Company Introduction

We specialize in producing replacement hydraulic cylinders and are a leading manufacturer and wholesale distributor of hydraulic cylinders in the domestic and international markets. Our company offers a wide range of hydraulic cylinders to meet diverse customer needs, and we provide customized services to our clients.

Our products have international certification, and we have advanced production equipment, ensuring high-quality products. We provide excellent after-sales service, including replacement parts and rebuilding services, to ensure customer satisfaction.
