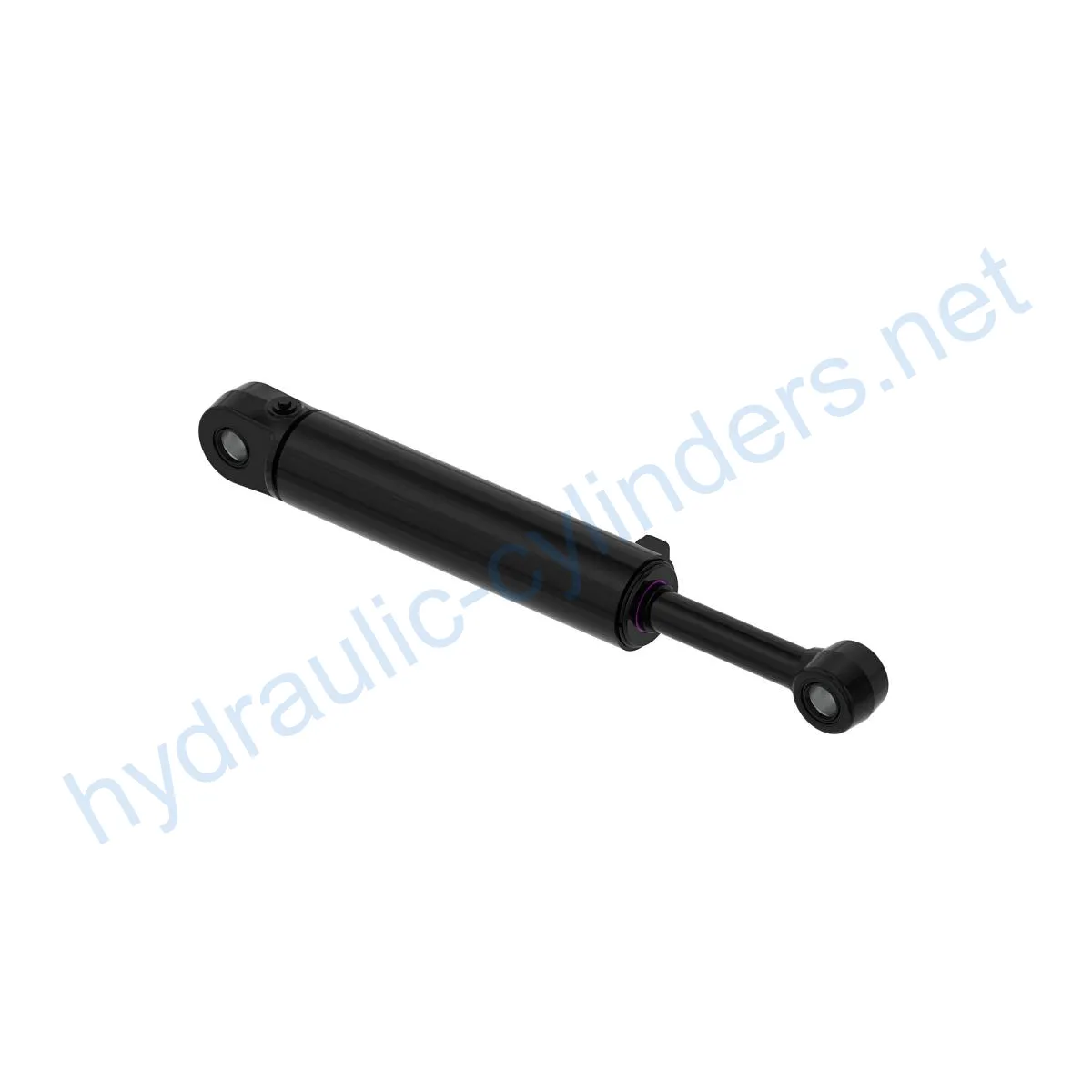

Replacement Of AHC16734 Hydraulic Cylinder

Introduction

The Replacement Of AHC16734 Hydraulic Cylinder is a crucial component in various heavy machinery models such as 620G, 622G, 670G, 672G, 770G, 772G, 870G, and 872G. This hydraulic cylinder plays a vital role in the proper functioning of the equipment, providing the necessary power and control for lifting, pushing, and moving heavy loads.

Specifications

• Weight: 80.168 lb
• Height: 5.5 in
• Width: 7 in
• Length: 37.5 in

Features

There are several key features of the Replacement Of AHC16734 Hydraulic Cylinder:

1. Improved Equipment Performance: Replacing damaged or worn-out hydraulic cylinders restores the equipment’s normal operational capabilities, ensuring optimal performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of both operators and equipment.
3. Overload Protection: The design of new cylinders typically incorporates better overload protection mechanisms, enhancing overall safety.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, facilitating the acquisition of replacement parts in the market.

Applications

The Replacement Of AHC16734 Hydraulic Cylinder is widely used in various applications. Here are a few examples:

Excavators

In excavators, the hydraulic cylinder is commonly found in the boom or bucket, which may get damaged due to prolonged use or overload. Replacing the cylinder is essential to restore normal operation.

Cranes

The hydraulic cylinders in crane boom arms undergo frequent lifting and lowering, making them susceptible to wear and tear. Regular replacement is necessary to ensure safety.

Tractors

Front-end loader hydraulic cylinders in tractors may develop leaks or experience performance degradation due to continuous lifting and tilting operations. Replacement is required to maintain optimal functionality.

Harvesters

Hydraulic cylinders in harvesting machinery endure high pressure during the harvesting process. Fatigue can lead to cylinder damage, necessitating timely replacement to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated equipment in production lines. Cylinder failure can significantly impact production efficiency and should be promptly replaced.

Die Casting Machines

In high-pressure and high-temperature environments, hydraulic cylinders in die casting machines may experience performance degradation. Regular replacement ensures product quality.

Mining Equipment

Hydraulic cylinders in mining equipment are used for lifting and moving heavy loads. Due to the harsh working environment, regular inspection and replacement are necessary to avoid equipment failures.

Bulldozers

On bulldozer blade arms, the wear of hydraulic cylinders can lead to a decrease in pushing power. Timely replacement is crucial to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AHC16734 Hydraulic Cylinder include:

1. Periodic Inspections: Regularly inspect the cylinder for any signs of damage, leakage, or abnormal wear.
2. Proper Lubrication: Apply appropriate lubrication to ensure smooth operation and prevent excessive friction.
3. Seal Replacement and Calibration Checks: Replace worn-out seals and perform calibration checks to maintain optimal performance.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is crucial to prioritize safety measures. Proper handling, installation, and maintenance contribute to safe operation. Additionally, considering environmental factors when selecting cylinders helps minimize potential hazards and promote sustainability.

Troubleshooting and Common Issues

Here are some common troubleshooting scenarios and solutions related to the Replacement Of AHC16734 Hydraulic Cylinder:

1. Issue 1: Cylinder not extending or retracting properly.

   Solution: Check for any blockages, leaks, or insufficient hydraulic pressure. Ensure proper lubrication and replace worn-out seals if necessary.
2. Issue 2: Cylinder leaking fluid.

   Solution: Inspect seals, connections, and fittings for damage or wear. Replace any faulty components and ensure proper tightening.
3. Issue 3: Cylinder making unusual noises.

   Solution: Check for loose mounting bolts, damaged bearings, or worn-out internal components. Tighten bolts, replace bearings, or perform necessary repairs accordingly.

Preventive Measures

To prevent potential issues, follow these preventive measures:

• Regularly inspect the cylinder for signs of wear, damage, or leaks.
• Ensure proper lubrication and use recommended hydraulic fluids.
• Adhere to manufacturer guidelines for installation and alignment.
• Utilize appropriate installation supports to secure the cylinder.
• Follow recommended inspection, repair, and replacement procedures.
• Provide replacement parts and rebuilding services to extend the lifespan of the hydraulic cylinder.

Design Considerations and Selection Criteria

When designing and selecting hydraulic cylinders, various factors should be considered:

1. Load-bearing Capacity: The cylinder must be able to handle the required load without compromising safety or performance.
2. Sealing Capability: The choice of seals should provide effective hydraulic fluid containment and prevent leaks.
3. Durability: The cylinder should be constructed with durable materials and components to withstand demanding operating conditions.
4. Safety: Incorporating safety features into the design, such as overload protection mechanisms, enhances overall equipment safety.
5. Maintainability: Ease of maintenance, repair, and replacement should be considered to minimize downtime and optimize productivity.

Sealing and Lubrication

The Replacement Of AHC16734 Hydraulic Cylinder incorporates various sealing and lubrication measures, including:

• Usage of different seals such as piston seals and rod seals made of wear-resistant materials like polyurethane and nitrile rubber.
• Surface treatment of cylinder bodies and threaded ends to enhance wear resistance.
• Regular lubrication with the appropriate amount of hydraulic oil to ensure smooth operation and prevent excessive wear.

Regular Inspection and Preventive Maintenance

Regular inspection and preventive maintenance tasks for the Replacement Of AHC16734 Hydraulic Cylinder include:

1. Proper installation, lubrication, and adjustment are crucial for optimal performance.
2. Providing guidance on aligning
