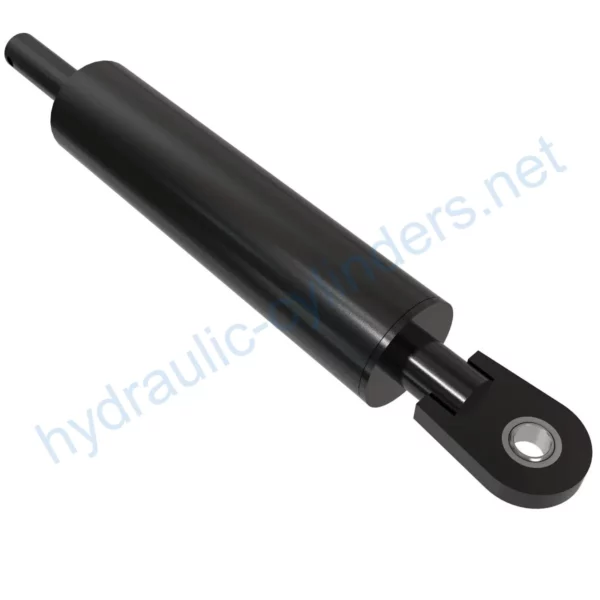

Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder

The Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder is a crucial component in various machinery models, including 4920, 4930, and 4940. This hydraulic cylinder plays a significant role in ensuring the proper functioning of the equipment.

Presupuesto

• Weight: 42.59 lb
• Altura: 4 pulgadas
• Ancho: 6,5 pulgadas
• Longitud: 28,5 pulgadas

Modelos

The Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder is compatible with the following models:

• 4920
• 4930
• 4940

Características

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders restores the equipment’s normal operating capabilities, ensuring optimal performance in various applications.
• Mayor seguridad: Reemplazar periódicamente los cilindros hidráulicos reduce los riesgos de seguridad causados ​​por fallas en los cilindros, lo que garantiza la seguridad de los operadores y el equipo.
• Protección contra sobrecargas: Los nuevos diseños de cilindros suelen incorporar mejores mecanismos de protección contra sobrecargas, lo que mejora la seguridad.
• Instalación rápida: Los cilindros hidráulicos modernos están diseñados para una fácil instalación y reemplazo, minimizando el tiempo de inactividad.
• Componentes estandarizados: Muchos cilindros hidráulicos son productos estandarizados, lo que facilita la obtención de piezas de repuesto en el mercado.

Podemos fabricar este producto y proporcionar repuestos perfectos para estos cilindros hidráulicos.

Aplicaciones

Here are three examples of applications for the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder:

excavadoras

In excavators, the hydraulic cylinder in the arm or bucket may become damaged due to extended use or overload. Replacement is necessary to restore normal operation.

Grúas

The lifting arm hydraulic cylinder in cranes is subject to wear during frequent lifting and lowering processes. Regular replacement is required to ensure safety.

Tractores

The front loader hydraulic cylinder in tractors can experience leaks or performance decline during continuous lifting and tilting operations, requiring replacement.

These are just a few examples, but the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder finds applications in various industries, including harvesting machines, automated production lines, die-casting machines, mining equipment, bulldozers, etc.

Tareas de mantenimiento

Regular maintenance tasks for the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder include:

• inspecciones periódicas
• Lubricación adecuada
• Reemplazo del sello
• Comprobaciones de calibración

It is essential to emphasize the importance of correct installation, lubrication, and adjustment. Providing guidance on aligning the cylinder correctly during installation and recommending the use of appropriate mounting brackets to secure the cylinder can enhance performance and longevity. We offer recommended inspection, repair, and replacement procedures, along with parts replacement and rebuilding services to extend the lifespan of the hydraulic cylinder.

Consideraciones de seguridad y factores ambientales

When using the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder, it is crucial to prioritize safety measures. Safety precautions must be taken during installation, operation, and maintenance to prevent accidents and ensure the well-being of personnel and equipment. Additionally, considering environmental factors is vital to minimize any negative impact the hydraulic cylinder may have on the surroundings.

Diagnóstico de fallas y problemas comunes

When encountering faults or issues with the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder, the following points can help diagnose and address problems:

Fuga

If there is noticeable leakage from the cylinder, it may indicate a damaged seal or improper installation. Inspecting the seals and ensuring a correct installation can resolve the problem.

Bajo rendimiento

If the hydraulic cylinder exhibits reduced performance, it may result from wear or inadequate lubrication. Regular inspections and proper lubrication can help maintain optimal performance.

Noise and Vibration

Excessive noise or vibration during operation may indicate misalignment or loose components. Ensuring proper alignment and tightening all connections can eliminate these issues.

By following these fault diagnosis techniques and implementing suitable solutions, readers can effectively identify and resolve problems with the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder. Additionally, preventive measures should be taken to minimize potential issues and ensure uninterrupted operation.

Please refer to the following image for reference:

Consideraciones de diseño y criterios de selección

When choosing the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder, several design considerations and selection criteria should be taken into account:

Capacidad de carga

The hydraulic cylinder should be capable of bearing the expected loads to ensure reliable performance in the intended applications.

Sellado y durabilidad

High-quality seals and durable materials, such as polyurethane and nitrile rubber, should be used for improved wear resistance. The cylinder body and threaded ends should undergo precise treatment to enhance durability.

Seguridad y mantenimiento

Designing the hydraulic cylinder with safety features and ease of maintenance in mind contributes to efficient and hassle-free operation. Proper installation instructions, recommended inspection and repair procedures, and the availability of replacement parts and rebuilding services are all critical factors.

Sellado y lubricación

The Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder employs various sealing components, including piston seals and rod seals. These seals are made of wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and threaded ends undergo fine treatment to enhance wear resistance. Regular lubrication with an appropriate amount of hydraulic oil is necessary to ensure smooth operation and longevity of the cylinder.

Inspección regular y mantenimiento preventivo

To maintain optimal performance, the following preventive maintenance measures should be taken:

• Inspecciones regulares
• Lubricación adecuada
• Reemplazo de sellos
• Comprobaciones de calibración

By adhering to these maintenance tasks, readers can ensure the prolonged lifespan and reliable operation of the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder.

Guía de instalación

For correct installation of the Replacement Of AN207541 Wing Level Tilt Hydraulic Cylinder, please follow these guidelines:

1. Ensure the equipment is powered off and depressurized before installation.
2. Carefully align the cylinder with the mounting points, taking note of the orientation.
3. Use appropriate installation brackets or supports to secure the cylinder in place.
4. Apriete todas las conexiones según las especificaciones de torsión recomendadas.
5. Verify proper operation and check for any leaks before resuming equipment use.
