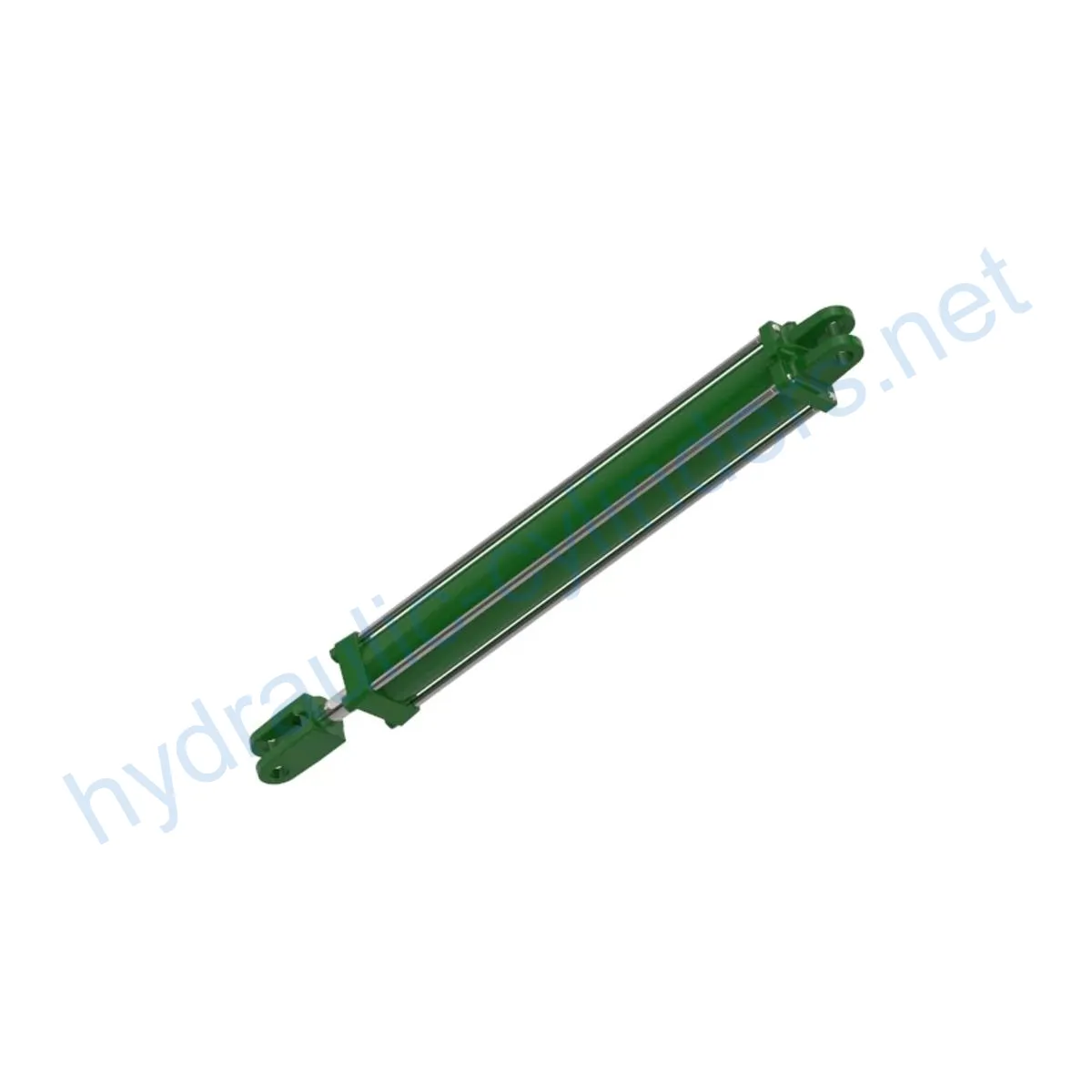

Replacement Of AHC12094 Wing Fold Hydraulic Cylinder

The Replacement Of AHC12094 Wing Fold Hydraulic Cylinder is a crucial component used in various models of equipment, including 726, 730, 735, 980, 1690, 1810, 1820, 1830, 1835, 1840, 1860, 1990, 2230FH, 2230LL, 2510C, 2510H, and 2510S. This hydraulic cylinder plays a vital role in the proper functioning of the equipment, allowing for smooth wing folding operations.

Specifications

• Weight: 91 lb
• Height: 6 in
• Width: 7 in
• Length: 52 in

Product Features

Replacing damaged or worn-out hydraulic cylinders, such as the AHC12094, offers several benefits:

1. Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operational capabilities, ensuring optimal performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of operators and the equipment.
3. Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing safety during operation.
4. Quick Installation: Modern hydraulic cylinders are designed with ease of installation and replacement in mind, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized, making it easier to obtain replacement parts in the market.

Applications

The Replacement Of AHC12094 Wing Fold Hydraulic Cylinder finds applications in various machinery. Here are three examples:

1. Excavators: The hydraulic cylinder may suffer damage from prolonged use or overloading on the excavator’s arm or bucket. Replacing it restores normal operation.
2. Cranes: The hydraulic cylinder in a crane’s boom is prone to wear during frequent lifting and lowering operations. Regular replacement ensures safety.
3. Tractors: The front-end loader hydraulic cylinder on a tractor may experience leakage or performance degradation due to continuous lifting and tilting operations. Replacement is necessary.

Maintenance Tasks

Regular maintenance is crucial for optimal performance and longevity of the Replacement Of AHC12094 Wing Fold Hydraulic Cylinder. Here are three common maintenance tasks:

1. Periodic Inspection: Regularly inspect the hydraulic cylinder for any signs of damage, leaks, or wear. This helps identify potential issues before they become major problems.
2. Proper Lubrication: Ensure the hydraulic cylinder is adequately lubricated using the recommended hydraulic oil. Lubrication reduces friction and extends the cylinder’s lifespan.
3. Seal Replacement and Calibration Check: Regularly replace worn-out seals to maintain proper sealing and prevent leaks. Additionally, check the calibration of the hydraulic cylinder to ensure accurate performance.

Safety Considerations and Environmental Factors

When working with hydraulic cylinders like the Replacement Of AHC12094, it is essential to prioritize safety measures. Adhering to safety guidelines and using appropriate personal protective equipment can prevent accidents and ensure operator well-being. Additionally, considering environmental factors such as proper disposal of used hydraulic cylinders helps minimize ecological impact.

Troubleshooting and Common Issues

Here are some common troubleshooting tips and solutions for issues related to the Replacement Of AHC12094 Wing Fold Hydraulic Cylinder:

1. Problem: Cylinder doesn’t extend or retract properly
   Solution: Check for low hydraulic fluid levels, damaged seals, or clogged lines. Refill or replace as necessary.
2. Problem: Cylinder leaks
   Solution: Inspect hydraulic fittings and seals for damage or wear. Replace any faulty components.
3. Problem: Cylinder makes unusual noises
   Solution: Check for loose or damaged mounting brackets, and tighten or replace as needed. Also, inspect internal components for wear or damage.

By following these troubleshooting steps, readers can effectively diagnose and resolve issues with the Replacement Of AHC12094 Wing Fold Hydraulic Cylinder. Implementing preventive measures can minimize potential problems and ensure smooth operation.

Design Considerations and Selection Criteria

When choosing a hydraulic cylinder like the Replacement Of AHC12094, several design considerations should be taken into account:

1. Load-bearing Capacity: Ensure the hydraulic cylinder can handle the required load without compromising performance or safety.
2. Sealing and Durability: Opt for high-quality seals and durable construction materials to prevent leaks and ensure long-lasting performance.
3. Safety and Maintenance: Consider features that enhance safety and ease of maintenance, such as overload protection mechanisms and accessible maintenance points.

Sealing and Lubrication

The Replacement Of AHC12094 Wing Fold Hydraulic Cylinder utilizes various sealing components, such as piston seals and rod seals, made from wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo meticulous surface treatment to improve wear resistance. Regular lubrication with the appropriate hydraulic oil is essential for optimal performance and longevity.

Regular Inspection and Preventive Maintenance Measures

To ensure the extended lifespan of the Replacement Of AHC12094 Wing Fold Hydraulic Cylinder, the following preventive maintenance measures should be carried out:

1. Proper Installation: Provide accurate alignment guidance during installation and recommend the use of suitable mounting brackets to secure the cylinder.
2. Recommended Inspection, Repair, and Replacement Procedures: Follow recommended procedures for inspecting, repairing, and replacing components. Consider utilizing replacement parts and rebuilding services to maintain the cylinder’s performance.
3. Tips for Prolonging Lifespan: Offer techniques for maximizing the lifespan of the hydraulic cylinder, such as avoiding excessive loads and temperature extremes.

Installation Guide

Follow these steps for the correct installation of the Replacement Of AHC12094 Wing Fold Hydraulic Cylinder:

1. Prepare the mounting area and ensure it is clean and free from debris.
2. Align the cylinder with the mounting brackets and confirm that it is level and centered.
3. Securely attach the cylinder to the mounting brackets using appropriate fasteners.
4. Check for any leaks or abnormalities during the initial operation.
