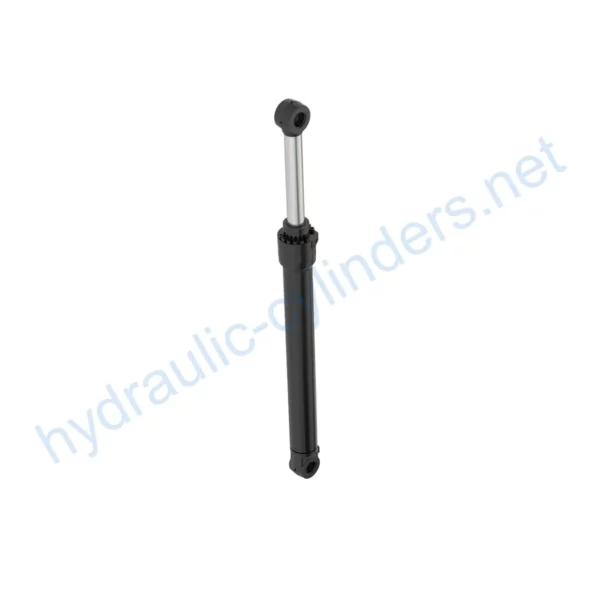

Replacement Of AHC14777 Hydraulic Cylinder

Definition: The Replacement Of AHC14777 Hydraulic Cylinder is a hydraulic component used in various machinery and equipment to provide linear force and movement. It plays a crucial role in the operation and performance of these machines.

Specifications

• Weight: 519.999 lb
• Height: 9.7 in
• Length: 78.5 in

Compatible Models

• 803MH
• 853M
• 853MH
• 859M
• 859MH
• 903KH
• 903MH
• 909KH
• 909MH
• 953MH
• 959MH

Product Features

1. Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operation capability of the equipment, ensuring its performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
3. Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, improving safety.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

We are capable of manufacturing this product, offering perfect replacements for these hydraulic cylinders.

Applications

1. Excavators: The hydraulic cylinder on the excavator’s arm or bucket may get damaged due to prolonged use or overload, requiring replacement for normal operation.
2. Cranes: The hydraulic cylinder on a crane’s lifting arm can wear out during frequent lifting and lowering, necessitating regular replacement for safety.
3. Tractors: The hydraulic cylinder on a tractor’s front loader may develop leaks or decreased performance from continuous lifting and tilting operations, requiring replacement.
4. Harvesters: The hydraulic system undergoes high pressure during harvesting, and fatigue may damage the cylinder, requiring timely replacement for efficient work.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can impact production efficiency and should be replaced promptly.

Here are some expanded descriptions for each application:

Excavators

In excavators, the hydraulic cylinder is responsible for controlling the arm and bucket movements. Over time, the cylinder may suffer damage or wear, affecting the excavator’s performance. Replacing the hydraulic cylinder restores the excavator’s ability to dig, load, and perform various tasks efficiently.

Cranes

On cranes, the hydraulic cylinder operates the lifting arm, allowing it to raise and lower loads. Frequent use and heavy loads can cause wear and tear on the cylinder, compromising the crane’s lifting capacity and posing safety risks. Regularly replacing the hydraulic cylinder ensures smooth and safe crane operations.

Tractors

The hydraulic cylinder on a tractor’s front loader is crucial for lifting and tilting operations. Continuous use and exposure to challenging working conditions can lead to cylinder leaks or decreased performance. Replacing the hydraulic cylinder ensures optimal performance and avoids interruptions in agricultural tasks.

Harvesters

During the harvesting process, hydraulic cylinders endure high pressures and repetitive movements. Fatigue and wear can affect the cylinder’s performance, resulting in decreased efficiency and potential breakdowns. Timely replacement of hydraulic cylinders is essential to maintain productivity and harvest quality.

Maintenance Tasks

1. Regular Inspections: Periodically check the hydraulic cylinder for leaks, damage, or signs of wear. Promptly address any issues to prevent further damage.
2. Proper Lubrication: Ensure the hydraulic cylinder is properly lubricated to reduce friction and extend its lifespan. Use recommended lubricants and follow the manufacturer’s guidelines.
3. Seal Replacement and Calibration Check: Regularly replace worn seals to prevent hydraulic fluid leaks. Additionally, calibrate the cylinder to ensure precise performance and alignment.

Proper installation, lubrication, and adjustment are crucial for the hydraulic cylinder’s efficiency and longevity. Provide detailed guidance on aligning the cylinder correctly during installation and recommend using appropriate installation brackets for secure mounting. Recommend inspection, repair, and replacement procedures, along with parts replacement and rebuilding services to maximize the cylinder’s lifespan.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, safety measures are of utmost importance to prevent accidents and injuries. Proper handling, installation, and maintenance should be followed to ensure safe operations. Additionally, considering environmental factors such as hydraulic fluid leaks and proper disposal helps preserve the environment and comply with regulations.

Common Malfunctions and Troubleshooting

It’s essential to diagnose and address hydraulic cylinder malfunctions promptly. Here are some common issues:

Leakage

If hydraulic fluid is leaking from the cylinder, check for damaged seals, loose connections, or worn components. Replace faulty parts and ensure proper sealing.

Lack of Power

If the hydraulic cylinder lacks power, inspect the hydraulic pump, control valves, and pressure settings. Adjust or replace components as necessary to restore proper power and performance.

Uneven Movement

If the cylinder moves unevenly or jerks during operation, check for hydraulic fluid contamination, damaged seals, or misalignment. Clean or replace contaminated fluid and seals, and realign the cylinder if needed.

Provide troubleshooting tips and solutions to help readers effectively diagnose and resolve hydraulic cylinder issues. Offer preventive measures to minimize potential problems and ensure proper maintenance practices.

Product Design Considerations and Selection Criteria

When designing and selecting hydraulic cylinders, several factors should be considered:

Load-Bearing Capacity

The hydraulic cylinder must be designed to handle the specific load requirements of the application. Consider factors such as weight, force, and operating conditions to ensure optimal performance and safety.

Sealing and Durability

Hydraulic cylinders should incorporate reliable sealing mechanisms to prevent leaks and maintain performance. Choosing durable materials such as polyurethane and nitrile rubber for seals, along with fine surface treatments on cylinder bodies and threaded ends, enhances wear resistance.

Safety and Maintenance

Designing hydraulic cylinders with safety features and ease of maintenance in mind is crucial. Emphasize the importance of proper installation, lubrication, and adjustment to ensure safe and efficient operation. Provide tips and techniques to prolong the cylinder’s lifespan and reduce downtime.
