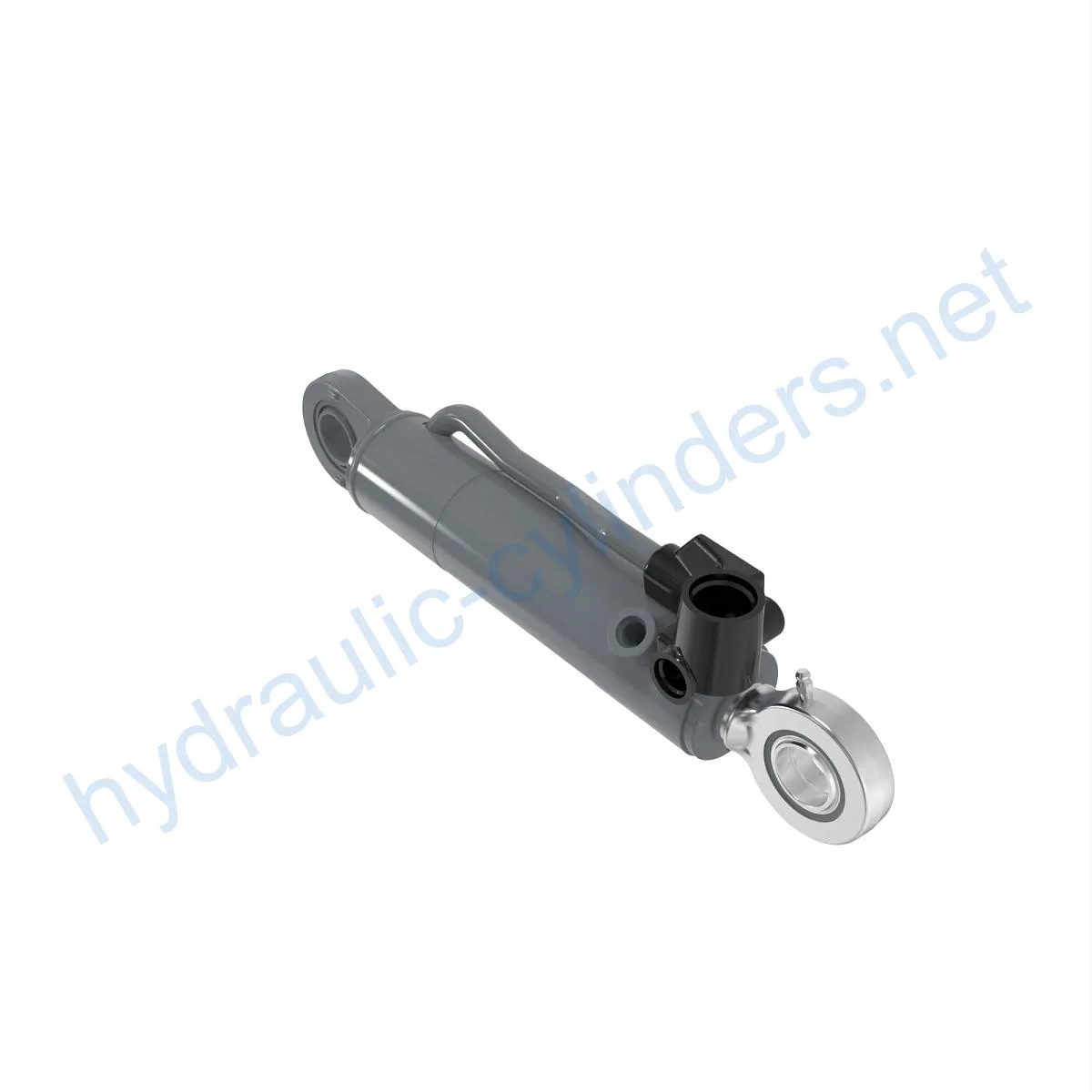

Replacement Of AL205034 Accumulator RH Hydraulic Cylinder with Socket

Introduction

The AL205034 Accumulator RH Hydraulic Cylinder with Socket is a crucial component in various hydraulic systems. This cylinder is responsible for providing hydraulic power and controlling the movement of different machinery, ensuring efficient operation.

Specifications and Models

Specifications:

• Weight: 15.66 lb
• Height: 4.1 in
• Width: 4.6 in
• Length: 16.75 in

Models:

• 6R 110
• 6R 120
• 6R 130
• 6R 140
• 6R 150
• 6090 MC
• 6090 RC
• 6090M
• 6095 MC
• 6095 RC
• 6100 MC
• 6100 RC
• 6100M
• 6105 MC
• 6105 RC
• 6105M
• 6105R
• 6110 MC
• 6110 RC
• 6110M
• 6110R
• 6115 MC
• 6115 RC
• 6115M
• 6115R
• 6120M
• 6120R
• 6125M
• 6125R
• 6130M
• 6130R
• 6140M
• 6155M
• 6155R
• 6175M
• 6195M

Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operation capability of the equipment, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces the safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing safety during operation.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

The AL205034 Accumulator RH Hydraulic Cylinder with Socket finds essential applications in various industries. Here are a few examples:

Excavators

In excavators, the hydraulic cylinder in the boom or bucket may get damaged due to prolonged use or overload, requiring replacement to restore normal operation.

Cranes

The lifting arm hydraulic cylinder in cranes is prone to wear and tear during frequent lifting and lowering processes, necessitating regular replacement for safety reasons.

Tractors

The front loader hydraulic cylinder in tractors can experience leakage or performance decline due to continuous lifting and tilting operations, demanding replacement.

Harvesters

During harvesting, the hydraulic system undergoes high pressure, and cylinders may suffer from fatigue, requiring timely replacement to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency, necessitating immediate replacement.

Die Casting Machines

In high-pressure and high-temperature environments, hydraulic cylinders in die casting machines may experience performance decline, necessitating regular replacement to ensure product quality.

Mining Equipment

Hydraulic cylinders in mining equipment are used for lifting and moving heavy loads. Due to harsh working conditions, regular inspection and replacement are necessary to avoid equipment failure.

Bulldozers

On bulldozers, wear of hydraulic cylinders in the blade can cause a decline in pushing capabilities, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

The following are common maintenance tasks for the AL205034 Accumulator RH Hydraulic Cylinder with Socket:

Regular Inspections

Schedule periodic inspections to identify any signs of wear, damage, or leaks in the hydraulic cylinder.

Proper Lubrication

Ensure appropriate lubrication of the cylinder components to reduce friction and extend the lifespan of the cylinder.

Seal Replacement

Regularly replace worn or damaged seals to prevent hydraulic fluid leakage and maintain optimal performance.

Safety Considerations and Environmental Factors

When working with hydraulic cylinders, it is essential to follow safety precautions to prevent accidents and ensure the well-being of operators and the environment. Proper training, personal protective equipment, and adherence to safety guidelines are crucial.

Troubleshooting and Common Issues

Fault: Leakage of hydraulic fluid from the cylinder

Solution: Check for loose connections, damaged seals, or worn-out components. Replace faulty parts and ensure proper sealing.

Fault: Insufficient or no movement of the hydraulic cylinder

Solution: Check the hydraulic fluid level, ensure proper lubrication, and inspect for obstructions or damaged components. Replace worn-out parts if necessary.

Fault: Abnormal noise during cylinder operation

Solution: Inspect for loose connections, damaged rods, or worn-out bearings. Tighten connections, replace faulty components, and ensure proper lubrication.

Product Design Considerations

When designing the AL205034 Accumulator RH Hydraulic Cylinder with Socket, several crucial factors were taken into consideration:

Load-Bearing Capacity

The cylinder is designed to withstand the specified load capacity, ensuring safe and efficient operation under
