Replacement Of AXE39051 Hydraulic Cylinder

Replacement Of AXE39051 Hydraulic Cylinder

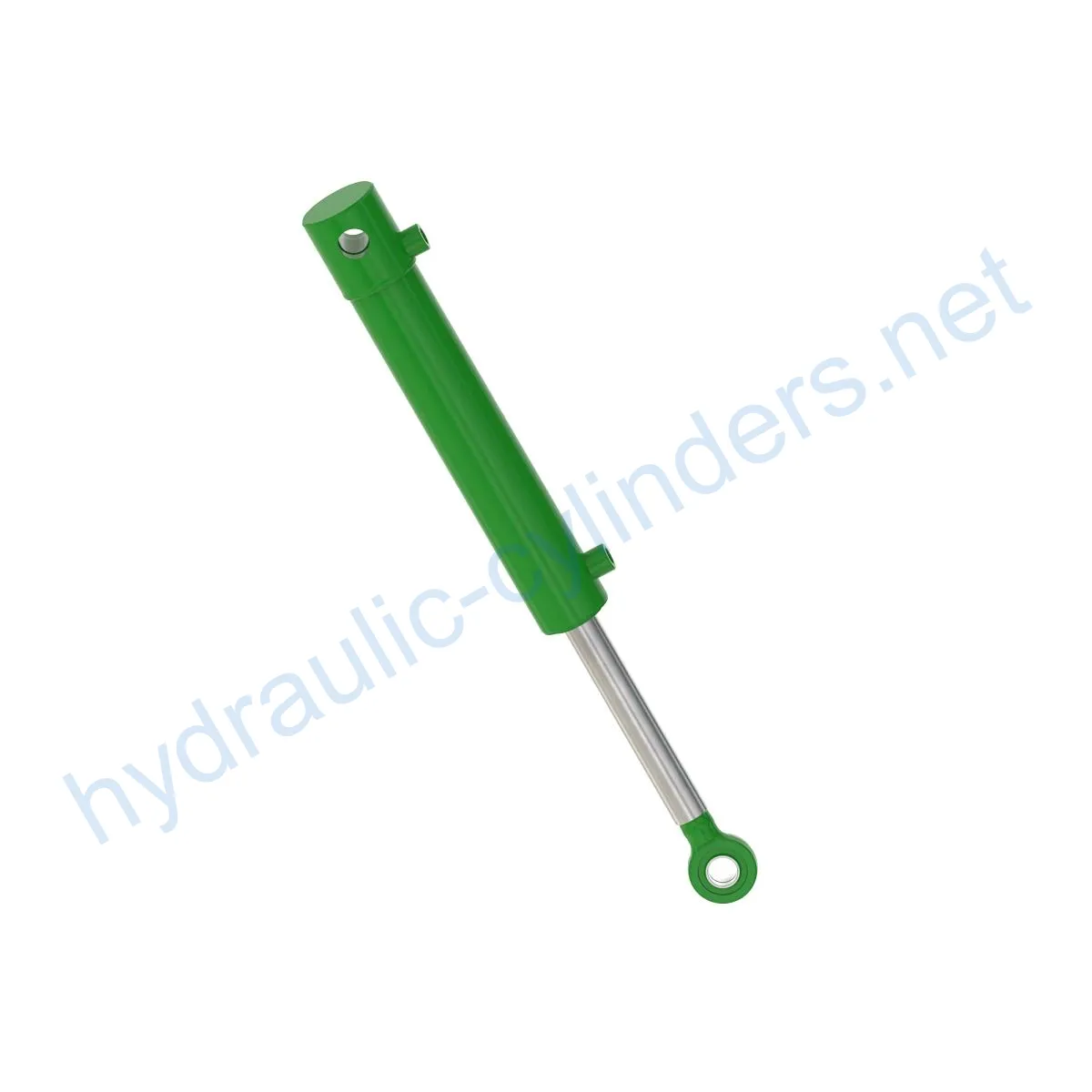

Firstly, let’s define what the hydraulic cylinder is and its function. A hydraulic cylinder is a mechanical actuator that is used to provide unidirectional force through a unidirectional stroke. It is widely used in various fields including construction, agriculture, and mining industries. Replacement Of AXE39051 Hydraulic Cylinder has a weight of 18.62 lb, a height of 4.5 in, and a length of 21.5 in. It is compatible with T5 400 T5 500 T5 600 T5 700 T6 600 T6 700 T6 800 T550 T560 T660 T670 W540 W550 W650 W660.

Product Features

1. Improved equipment performance: Replacing damaged or worn hydraulic cylinders can restore the normal operational ability of the equipment, ensuring its performance in various applications.
2. Enhanced safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
3. Overload protection: New cylinder designs usually consider better overload protection mechanisms, enhancing safety.
4. Quick installation: Modern hydraulic cylinder designs usually consider ease of installation and replacement, reducing downtime.
5. Standardized parts: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

1. Excavators: Hydraulic cylinders in excavators’ arms or buckets may become damaged due to long-term use or overload, requiring replacement to restore normal operation.
2. Cranes: The hydraulic cylinders of a crane’s lifting arm are prone to wear during frequent lifting and lowering processes, requiring regular replacement to ensure safety.
3. Tractors: The hydraulic cylinder of a tractor’s front-end loader may leak or perform poorly due to continuous lifting and tilting operations, requiring replacement.
4. Harvesters: During the harvesting process, the hydraulic system is subject to high pressure, and cylinders may become damaged due to fatigue, requiring timely replacement to maintain work efficiency.
5. Automated production lines: Hydraulic cylinders are used to control robotic arms and other automation equipment. If the cylinder fails, it will affect production efficiency and require immediate replacement.
6. Die-casting machines: In high-pressure and high-temperature environments, hydraulic cylinders may experience performance degradation. Regular replacement can ensure product quality.
7. Mining equipment: Hydraulic cylinders are used to lift and move heavy objects in mining equipment. Due to the harsh working environment, regular inspection and replacement are necessary to avoid equipment failure.
8. Bulldozers: The wear of hydraulic cylinders on a bulldozer’s push arm will cause a decrease in push capacity, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

1. Regular inspection: Hydraulic cylinders should be regularly inspected to ensure proper operation and detect potential problems.
2. Proper lubrication: Adequate lubrication of hydraulic cylinders can reduce wear and extend their service life.
3. Seal replacement and calibration check: Regular replacement of seals and calibration checks can prevent leaks and ensure proper operation. Proper installation, lubrication, and adjustment are essential during installation. It is recommended to use appropriate mounting brackets to secure the cylinder. Recommended inspection, repair, and replacement procedures, parts replacement and rebuilding services, and techniques to extend the lifespan of hydraulic cylinders should be followed.

Safety Considerations

Proper safety measures should be taken when using hydraulic cylinders to avoid accidents. The use of appropriate safety equipment, such as safety glasses and gloves, is essential. Always ensure that the cylinder is properly installed and secured before use.

Fault Diagnosis and Troubleshooting

1. Cylinder leaks: A cylinder leak may be caused by worn seals or damaged components. Proper inspection and replacement of seals and calibration checks can prevent leaks.
2. Cylinder drift: Cylinder drift may be caused by a malfunctioning valve or insufficient fluid supply. Inspection and repair of the valve or fluid supply can solve the problem.
3. Slow or erratic cylinder movement: This may be caused by insufficient fluid supply, worn components, or a malfunctioning valve. Inspection and repair of the valve, fluid supply, and replacement of worn components can solve the problem. Regular inspection and preventive maintenance can help reduce the frequency of such issues.

Product Design Considerations and Selection Criteria

1. Load-bearing capacity: The load-bearing capacity of a hydraulic cylinder should be considered when selecting a cylinder for a specific application.
2. Sealing: The sealing capability of a hydraulic cylinder is essential to prevent leaks and ensure proper operation.
3. Durability: Durability is a crucial factor to consider when selecting a hydraulic cylinder. The cylinder should be able to withstand the environmental conditions and the demands of the application.
4. Safety: Safety is a critical concern when selecting hydraulic cylinders. The cylinder should be designed to prevent accidents and ensure the safety of operators and equipment.
5. Maintenance: Ease of maintenance is an important factor to consider when selecting hydraulic cylinders. The cylinder should be easy to disassemble and repair if necessary.

Sealing and Lubrication

Various sealing components, such as piston seals and rod seals, should be selected based on the application requirements. The seals should be made of wear-resistant materials, such as polyurethane and nitrile rubber. The cylinder body and threaded end surfaces should be finely processed to improve wear resistance. Regular lubrication with hydraulic oil can also extend the lifespan of hydraulic cylinders.

Installation Guide

Proper installation is essential for the proper operation of hydraulic cylinders. Proper alignment of the cylinder with the mounting surface, use of appropriate mounting brackets, and securing the cylinder with mounting bolts are crucial steps in the installation process.

Company Introduction

We are a leading manufacturer and wholesaler of hydraulic cylinders, offering a complete range of products. Our company has various international certifications and provides customization services, ensuring that our products meet the needs of our customers. We have advanced production equipment and offer excellent after-sales service to ensure customer satisfaction.

In conclusion, hydraulic cylinders play an essential role in various industries, and proper maintenance is crucial to ensure their proper operation. Selecting the right hydraulic cylinder based on the application requirements, following appropriate installation and maintenance procedures, and ensuring proper safety measures can help extend the lifespan of hydraulic cylinders and maximize their performance.
