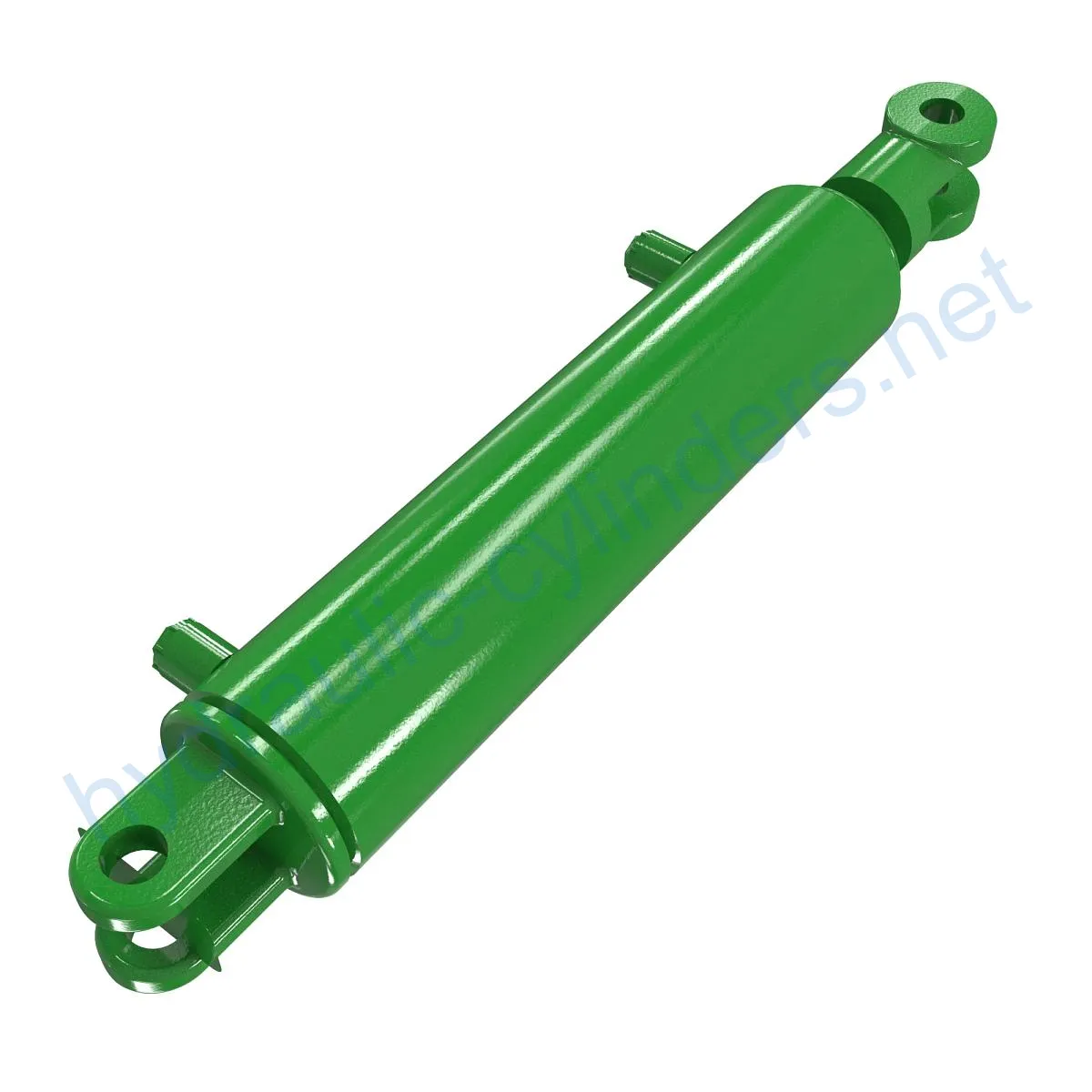

Replacement Of AH212678 Depth Control Hydraulic Cylinder

Replacement Of AH212678 Depth Control Hydraulic Cylinder

The Replacement Of AH212678 Depth Control Hydraulic Cylinder is a crucial component in various heavy machinery models including 680, 730, 980, 985, 1820, 1870, P540, and P556. It is designed to provide precise depth control and ensure the smooth operation of the equipment.

Specifications

• Weight: 34.17 lb
• Height: 5 in
• Width: 6.5 in
• Length: 24.5 in

Machine Models

• 680
• 730
• 980
• 985
• 1820
• 1870
• P540
• P556

Features of the Replacement Of AH212678 Depth Control Hydraulic Cylinder

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operation and ensure its performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, improving safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized, making it easier to obtain replacement parts in the market.

We specialize in producing this product, and our cylinders are the perfect replacement for the ones mentioned above.

Applications

The Replacement Of AH212678 Depth Control Hydraulic Cylinder finds application in various scenarios:

Excavators

In excavators, the hydraulic cylinders in the arm or bucket may become damaged or worn due to extended use or overload. Replacing them is essential to restore normal operation.

Cranes

The hydraulic cylinders in crane boom arms are prone to wear during frequent lifting and lowering processes. Regular replacement is necessary to ensure safety.

Tractors

Front loader hydraulic cylinders in tractors may experience leaks or performance degradation due to continuous lifting and tilting operations, requiring replacement.

Harvesters

Hydraulic cylinders in harvesting machinery endure high pressure during the harvesting process, and fatigue-related damages may occur. Timely replacement is crucial to maintain efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency and should be replaced promptly.

Die Casting Machines

Hydraulic cylinders in die casting machines can experience performance degradation under high pressure and temperature. Regular replacement ensures product quality.

Mining Equipment

Hydraulic cylinders in mining equipment are used for lifting and moving heavy loads. Due to harsh working conditions, regular inspection and replacement are necessary to avoid equipment failures.

Bulldozers

The wear of hydraulic cylinders on bulldozer blade arms can lead to a decrease in pushing capacity. Timely replacement is essential to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AH212678 Depth Control Hydraulic Cylinder include:

1. Periodic Inspection

Regularly inspect the cylinder for any signs of leaks, damages, or misalignment. This ensures early detection of potential issues.

2. Proper Lubrication

Ensure appropriate lubrication of the cylinder using the recommended hydraulic oil. This enhances its performance and longevity.

3. Seal Replacement and Calibration Check

Regularly replace worn seals to maintain optimal sealing performance. Additionally, perform calibration checks to ensure accurate depth control.

During installation, provide proper guidance on aligning the cylinder correctly. It is recommended to use suitable installation brackets to secure the cylinder. We also offer inspection, repair, and replacement procedures, as well as parts replacement and rebuilding services to enhance the lifespan of your hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of AH212678 Depth Control Hydraulic Cylinder, it is vital to follow safety measures to prevent accidents and ensure the well-being of operators and the environment. Safety precautions should include:

• Proper training for operators on handling hydraulic equipment.
• Using appropriate personal protective equipment.
• Operating the equipment within recommended parameters.
• Adhering to environmental regulations for fluid disposal and leakage prevention.

Troubleshooting and Common Issues

Here are some common troubleshooting points and issues related to the Replacement Of AH212678 Depth Control Hydraulic Cylinder:

1. Leakage

If you notice hydraulic fluid leakage, inspect the seals and connections for damage. Tighten or replace them as necessary.

2. Inconsistent Depth Control

Check for misalignment or improper calibration. Ensure the cylinder is correctly installed and calibrated according to the manufacturer’s guidelines.

3. Insufficient Pressure

If the hydraulic cylinder is not providing enough pressure, check for blockages, worn components, or insufficient hydraulic fluid. Address the issue accordingly.

For effective troubleshooting and issue resolution, consider the following tips:

• Refer to the manufacturer’s documentation and guidelines for specific troubleshooting steps.
• Consult with our technical support team for assistance in diagnosing and resolving problems.
• Implement preventive measures to minimize potential issues, such as regular maintenance and inspections.

Design Considerations and Selection Criteria

When selecting the Replacement Of AH212678 Depth Control Hydraulic Cylinder, it is essential to consider the following design aspects:

1. Load Capacity

The cylinder should be selected based on its ability to handle the expected load without compromising safety or performance.

2. Sealing Capability

Ensure the cylinder has reliable sealing capabilities to prevent leaks and maintain optimal performance.

3. Durability

The cylinder should be constructed with durable materials and designed to withstand the operating conditions it will encounter.

4. Safety Features

Consider cylinders with built-in safety features, such as overload protection mechanisms, to enhance operator safety.

5. Maintainability

Choose cylinders that are designed for ease of maintenance, with readily available replacement parts and clear maintenance procedures.

Sealing and Lubrication

The Replacement Of AH212678 Depth Control Hydraulic Cylinder utilizes various
