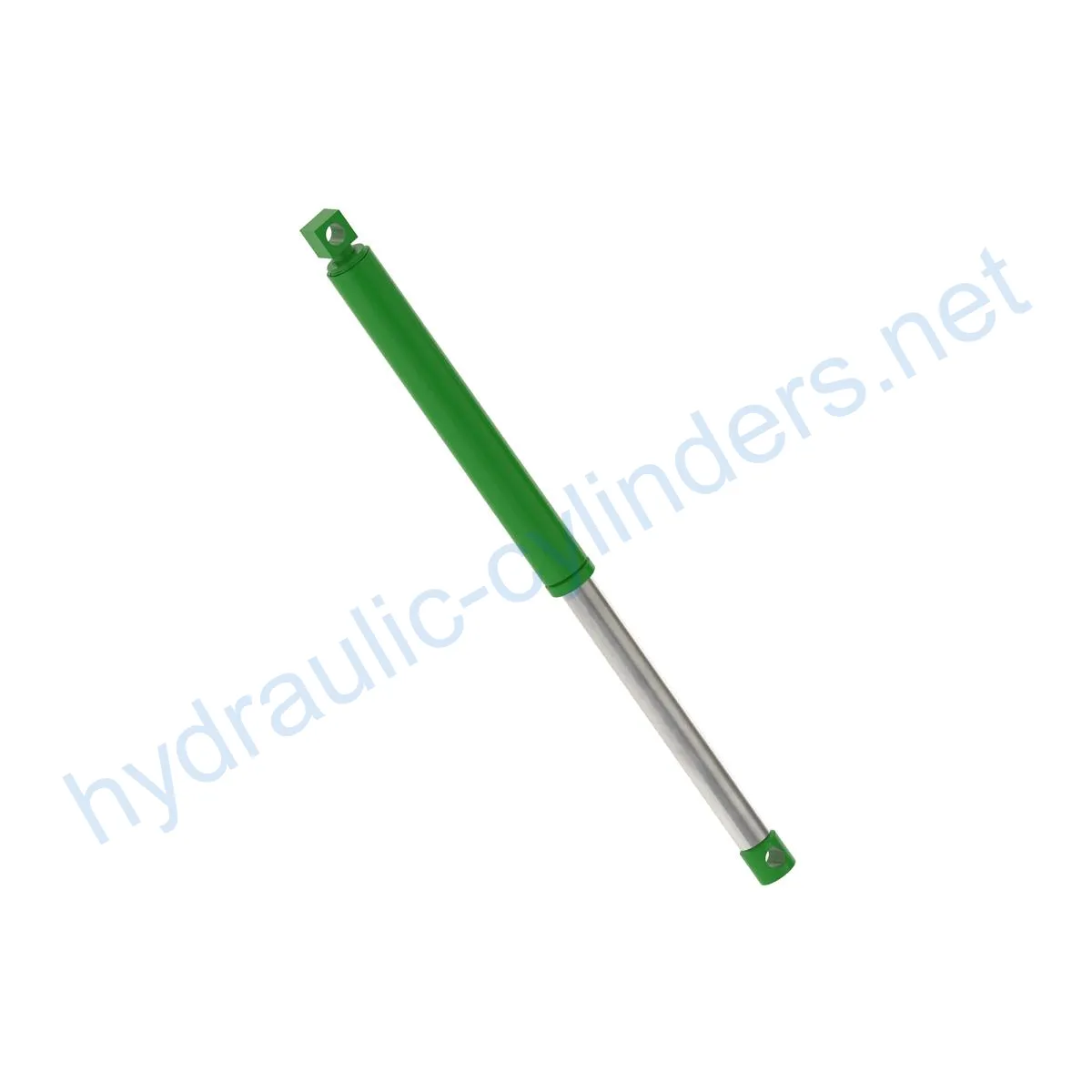

Replacement Of AHC15645 Hydraulic Cylinder

The Replacement Of AHC15645 Hydraulic Cylinder is a crucial component used in various hydraulic systems. It plays a vital role in the smooth operation and performance of equipment. This hydraulic cylinder is designed to withstand heavy loads and provide reliable power transmission.

Specifications

• Weight: 102 lb
• Height: 6.6 in
• Width: 10.5 in
• Length: 62 in

Model: H360

Features

1. Improved Equipment Performance

Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operational capabilities, ensuring optimal performance in various applications.

2. Enhanced Safety

Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.

3. Overload Protection

New cylinder designs often incorporate better overload protection mechanisms, enhancing overall safety during operation.

4. Quick Installation

Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime and maximizing productivity.

5. Standardized Components

Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Our company specializes in manufacturing replacement hydraulic cylinders that perfectly match the specifications and model mentioned above. We ensure top-notch quality and reliable performance for all our products.

Applications

The Replacement Of AHC15645 Hydraulic Cylinder finds application in various industries, including but not limited to:

1. Excavators: Hydraulic cylinders in excavator booms or buckets may get damaged due to prolonged use or overloading, requiring replacements to restore normal operations.
2. Cranes: Hydraulic cylinders in crane boom lifts are prone to wear and tear during frequent lifting and lowering processes, necessitating regular replacements for safety assurance.
3. Tractors: Front-end loader hydraulic cylinders in tractors may experience leaks or performance degradation during constant lifting and tilting operations, demanding replacements as needed.
4. Harvesters: Hydraulic systems in harvesters endure high pressures, and cylinders may get fatigued, potentially impacting work efficiency. Timely replacements are crucial to maintain productivity.
5. Automated Production Lines: Hydraulic cylinders control robotic arms and other automation devices. Any cylinder failure can disrupt production efficiency, necessitating immediate replacements.

Maintenance Tasks

To ensure the longevity and optimal performance of the Replacement Of AHC15645 Hydraulic Cylinder, it is essential to adhere to regular maintenance tasks:

1. Regular Inspections: Periodically inspect the cylinder for any signs of damage, leaks, or abnormal wear.
2. Proper Lubrication: Apply an appropriate amount of hydraulic oil to ensure smooth operation and reduce friction.
3. Seal Replacement and Calibration Checks: Replace worn-out seals and perform calibration checks to maintain proper functionality.

During installation, it is crucial to provide correct alignment guidance and recommend using suitable installation brackets to secure the cylinder. We also offer inspection, repair, and replacement services to extend the lifespan of your hydraulic cylinders.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is essential to prioritize safety measures. Proper handling, maintenance, and adherence to safety guidelines reduce the risk of accidents and ensure a safe working environment. Additionally, considering environmental factors such as proper disposal of used hydraulic components helps maintain ecological balance and sustainability.

Troubleshooting and Common Issues

In case of any issues or malfunctions with the Replacement Of AHC15645 Hydraulic Cylinder, the following troubleshooting steps can help diagnose and resolve problems:

1. Problem: Cylinder not extending or retracting properly.

Solution: Check for any blockages or leaks in the hydraulic system. Ensure adequate hydraulic pressure and proper lubrication.

2. Problem: Cylinder leaking oil.

Solution: Inspect seals and replace if necessary. Check for potential damage to the cylinder body or piston rod.

3. Problem: Cylinder making unusual noises during operation.

Solution: Check for loose fittings or damaged components. Lubricate moving parts appropriately.

Implementing preventive measures such as regular inspections, proper lubrication, and timely maintenance can minimize potential issues and extend the lifespan of the hydraulic cylinder.

Design Considerations and Selection Criteria

When choosing a hydraulic cylinder, several design considerations and selection criteria should be taken into account:

1. Load-Bearing Capacity: Ensure that the cylinder can handle the expected load without compromising performance or safety.
2. Sealing Performance: Opt for high-quality seals, such as piston seals and rod seals, made of wear-resistant materials like polyurethane or nitrile rubber.
3. Durability: The cylinder body and threaded ends should undergo proper surface treatment to enhance wear resistance and overall durability.
4. Safety Features: Look for cylinders with built-in safety features such as overload protection mechanisms to prevent accidents and ensure operator safety.
5. Maintainability: Consider cylinders that are designed for easy repair and replacement, reducing downtime and maximizing productivity.

Sealing and Lubrication

The Replacement Of AHC15645 Hydraulic Cylinder utilizes various sealing components to ensure optimal performance. Key aspects of sealing and lubrication include:

• Utilizing different types of seals, including piston seals and rod seals, made of wear-resistant materials like polyurethane and nitrile rubber.
• Thoroughly treating the cylinder body and threaded ends to improve wear resistance and longevity.
• Regularly lubricating the hydraulic cylinder with the appropriate amount of hydraulic oil to reduce friction and ensure smooth operation.

Regular Inspection and Preventive Maintenance

To maximize the lifespan and performance of the Replacement Of AHC15645 Hydraulic Cylinder, regular inspections and preventive maintenance are essential:

• Proper installation, lubrication, and adjustment play a crucial role in ensuring the cylinder’s optimal functionality.
• During installation, provide accurate alignment instructions and recommend the use of suitable installation brackets to secure the cylinder.
• Follow recommended procedures for inspection, repair, and replacement to address any potential issues promptly.
• Offer replacement parts and rebuilding services to enhance the lifespan of the cylinder and reduce overall costs.
• Provide tips to improve the lifespan of the hydraulic cylinder, such as proper maintenance, correct usage, and appropriate load distribution.

Product Installation Guide

Correct installation is crucial for the effective operation of the Replacement Of AHC15645 Hydraulic Cylinder. Follow these guidelines:

1. Ensure the mounting surface is clean and free from debris.
