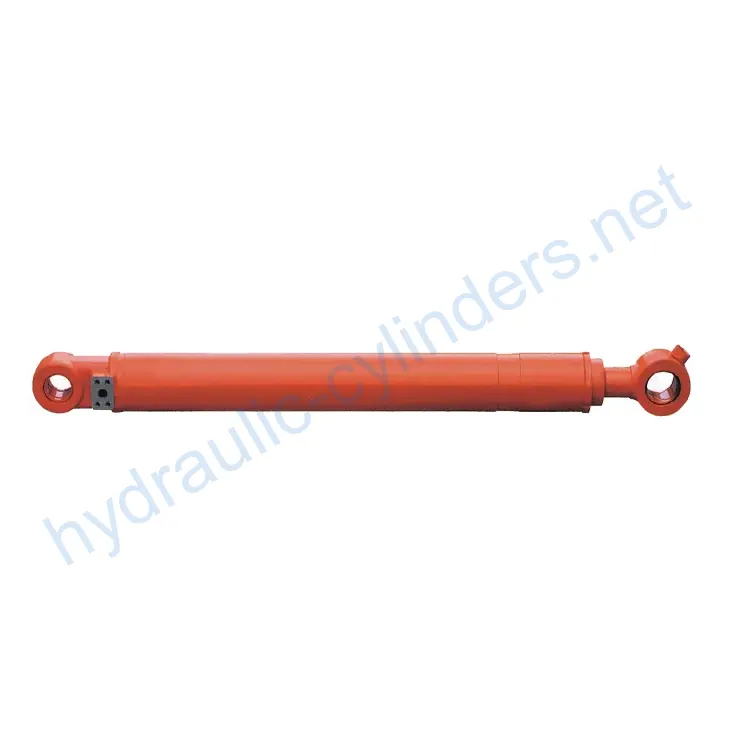

Boom Cylinder For Yuchai YC240LC-8

Product Overview

The Boom Cylinder for Yuchai YC240LC-8 is a critical component in hydraulic systems, designed specifically for controlling the movement of the bucket in various heavy machinery, such as excavators, backhoe loaders, and front loaders. This hydraulic cylinder enables the bucket to lift, lower, and tilt, facilitating efficient material handling tasks. The bucket cylinder is an essential part of the hydraulic system, utilizing hydraulic fluid to create movements that are both powerful and precise.

Definition and Purpose

The bucket cylinder is a type of hydraulic actuator that converts hydraulic energy into mechanical energy, allowing heavy machinery to perform various functions with ease. These cylinders are designed to withstand high pressures and heavy loads, making them suitable for demanding environments. The functionality provided by the bucket cylinder enhances operational efficiency, reduces downtime, and ensures the safety of operators during heavy lifting and moving tasks.

Features of the Boom Cylinder

• High Strength and Durability: Constructed from high-strength steel or aluminum, capable of withstanding high pressures and heavy loads, designed to endure harsh working conditions, with wear resistance and corrosion resistance for extended lifespan.
• Efficient Hydraulic Operation: Utilizes hydraulic fluid pressure to achieve smooth extension and retraction, responds quickly to operator commands, providing strong pushing and pulling power, ideal for handling heavy and complex tasks.
• Diverse Types: Available in single-acting (operating hydraulic fluid in one direction) or double-acting (operating in both directions) cylinders to meet different operational needs, with certain models being telescopic for greater extension without increasing external dimensions, ideal for space-constrained applications.
• Custom Solutions: Our products can perfectly replace various hydraulic cylinders, ensuring compatibility and performance.

Applications of the Boom Cylinder

Construction Equipment

In excavators, boom cylinders play a vital role in digging, loading, and moving soil or debris. They provide the necessary force for the bucket to penetrate the ground efficiently, enhancing the machine’s overall productivity. The precise control offered by these cylinders ensures that operators can perform complex tasks with accuracy and ease. Additionally, in backhoe loaders, bucket cylinders assist in both digging and lifting operations, making them indispensable for construction projects.

Agricultural Machinery

In front-end loaders, boom cylinders are crucial for scooping, lifting, and transporting soil, hay, and other materials. Their robust design allows them to handle the demanding tasks often required in agricultural settings, ensuring reliability and durability. By facilitating efficient material handling, these cylinders contribute significantly to increasing productivity on farms and agricultural operations.

Excavators

In excavators, bucket cylinders enable the bucket to penetrate the soil, which is essential for effective digging operations. The hydraulic power provided by these cylinders allows for deep excavation with minimal effort from the operator, improving operational efficiency and reducing the time required for projects.

Loaders

In front loaders, boom cylinders assist in lifting and dumping loads effectively. Their ability to provide strong lifting capabilities ensures that heavy materials can be efficiently loaded and unloaded, contributing to the smooth operation of construction, mining, and material handling tasks.

Design Considerations and Selection Criteria

Load Capacity

When selecting a boom cylinder, load capacity is a critical factor. The cylinder must be designed to handle the maximum weight that will be encountered during operation. This ensures safety and efficiency, as an inadequately rated cylinder may fail under stress, leading to equipment damage or accidents. Manufacturers typically provide detailed specifications regarding the load capacity, enabling operators to make informed decisions based on their specific needs.

Sealing and Durability

Effective sealing is vital for ensuring the longevity of the boom cylinder. High-quality seals prevent hydraulic fluid leakage, which can compromise performance and safety. Various materials, such as polyurethane and nitrile rubber, are used to create seals that resist wear and degradation. Proper sealing also enhances the cylinder’s ability to withstand harsh environmental conditions, ensuring consistent performance over time.

Safety Features

Safety is paramount in the design of boom cylinders. Features such as pressure relief valves and overload protection are essential for preventing failures and ensuring safe operation. Operators should be aware of these safety features and understand how they function within the hydraulic system. Additionally, regular maintenance and inspections are necessary to identify potential safety issues before they lead to incidents.

Maintenance Ease

Designing boom cylinders for ease of maintenance can significantly enhance their operational lifespan. Components should be accessible for inspection and repairs, reducing downtime and maintenance costs. Offering modular designs that allow for easy replacement of parts can also contribute to overall efficiency, ensuring that equipment remains operational and productive.

Sealing and Lubrication

The sealing and lubrication of boom cylinders are crucial for their performance and longevity. Various sealing components, such as piston seals and rod seals, are employed to maintain hydraulic pressure and prevent fluid leaks. Seals made from durable materials like polyurethane and nitrile rubber resist abrasion and chemical degradation, extending the life of the cylinder.

Additionally, the cylinder body and threaded end surfaces are precision machined to improve wear resistance, ensuring that the components operate smoothly over time. Regular lubrication is essential; operators should periodically refill hydraulic oil to maintain optimal performance and reduce wear, thereby extending the life of the hydraulic system. Proper lubrication also minimizes the risk of overheating and reduces friction, allowing for smoother operation.

Regular Inspection and Preventive Maintenance

• Routine Inspections: Conducting regular inspections of hydraulic cylinders is essential for identifying potential issues early on. Inspect for leaks, wear, and other signs of damage. Early detection can prevent costly repairs and ensure safety.
• Proper Lubrication: Ensure that the hydraulic oil levels are maintained and that lubrication points are regularly serviced. Proper lubrication reduces friction and wear, enhancing cylinder performance and lifespan.
• Seal Replacement: Over time, seals may degrade and require replacement. Regularly check the condition of the seals and replace them as necessary to prevent leaks and maintain system integrity.

Installation Guidelines

Installing a boom cylinder correctly is crucial for its performance and safety. Start by ensuring that the installation area is clean and free of debris. Align the cylinder properly to avoid misalignment, which can cause premature wear or failure. Use appropriate mounting brackets to secure the cylinder in place, ensuring that it is firmly attached and stable.

Follow the manufacturer’s specifications for torque settings and use high-quality fasteners to avoid loosening over time. After installation, perform a test run to check for leaks and ensure that the cylinder operates smoothly. Pay attention to any unusual noises or movements that may indicate a problem. Finally, document the installation process to maintain records for future reference.

Common Maintenance Tasks

Routine Inspections

Regular inspections are critical to maintaining hydraulic systems. Technicians should check for signs of wear, leaks, and other potential issues. Frequent inspections help ensure that any necessary repairs or replacements are made promptly, minimizing downtime and enhancing safety. Regularly documenting inspection results can also help track the condition of the equipment over time.

Appropriate Lubrication

Ensuring that hydraulic cylinders are properly lubricated is vital for their longevity. Technicians should establish a lubrication schedule that aligns with the manufacturer’s recommendations. This not only prevents wear and overheating but also contributes to the overall efficiency of the hydraulic system. Regularly checking fluid levels and replacing fluids as necessary is essential for maintaining optimal performance.

Seal Replacement and Calibration Checks

Over time, seals will degrade and require replacement to maintain system integrity. Technicians should be trained to identify signs of seal wear and understand the replacement process. Additionally, regular calibration checks ensure that the hydraulic system operates within specified parameters, preventing performance issues and enhancing safety. Proper training and adherence to maintenance schedules are instrumental in extending the lifespan of hydraulic cylinders.

Safety Considerations and Environmental Factors

When working with boom cylinders, safety measures are essential. Operators must adhere to safety protocols, including wearing appropriate personal protective equipment (PPE) and understanding the specific hazards associated with hydraulic systems. Regular training on safe operating procedures can help minimize risks. Additionally, compliance with environmental regulations is critical, ensuring that hydraulic fluids and other materials are handled and disposed of safely.

Troubleshooting and Common Issues

• Leakage: Hydraulic fluid leaks can occur due to worn seals or damaged components. Identifying the source of the leak and replacing seals or damaged parts promptly is essential to maintain system integrity.
• Unusual Noises: If the boom cylinder produces unusual noises during operation, it may indicate insufficient lubrication or internal damage. Shut down the equipment and conduct a thorough inspection to identify and rectify the issue.
• Inconsistent Performance: If the cylinder does not operate smoothly or exhibits inconsistent performance, it may be due to air in the hydraulic lines or low fluid levels. Bleeding the hydraulic system and checking fluid levels can resolve these issues.

Troubleshooting Tips

To effectively diagnose and resolve issues with boom cylinders, operators should maintain detailed records of maintenance and inspection activities. Regularly reviewing these records can help identify patterns and potential problems. Implementing preventive measures, such as routine maintenance and inspections, can minimize the occurrence of issues and enhance overall system performance.

About Our Company

We are a leading manufacturer of replacement hydraulic cylinders, offering a comprehensive range of products that have made us one of the prominent manufacturers and wholesalers in the domestic and international markets. Committed to excellence, we rely on a refined manufacturing strategy that emphasizes industrial production management. Our company continuously enhances its manufacturing platform through the integration of technical expertise, advanced digital manufacturing equipment, and professional testing systems.

Our robust capabilities allow us to efficiently meet diverse customer demands with a focus on high efficiency, precision, and quality. We offer customized solutions, ensuring that our clients receive products tailored to their specific requirements. Additionally, we have obtained international certifications that validate our commitment to quality and safety standards.
