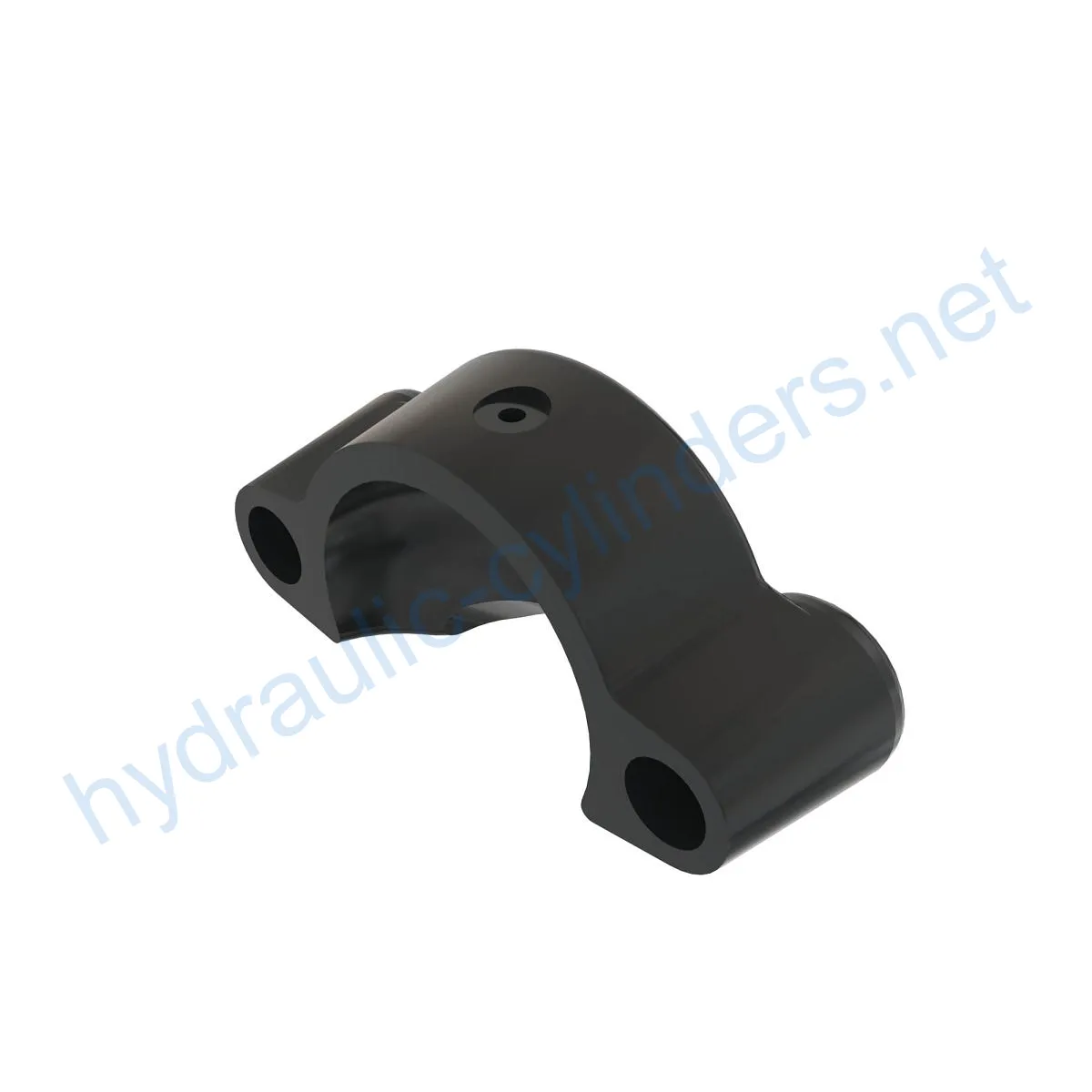

Replacement Of H232376 Hydraulic Cylinder End

Replacement Of H232376 Hydraulic Cylinder End

This hydraulic cylinder end is a replacement part designed to restore the normal operation of equipment. It is essential for maintaining the performance of various applications.

Specifications:

• Weight: 4.68 lb
• Height: 2.4 in
• Width: 3.3 in
• Length: 6.5 in

Compatible Models:

• 620 P
• 620G
• 622 P
• 622G
• 670 P
• 670G
• 672 P
• 672G
• 724K
• 770 P
• 770G
• 772 P
• 772G
• 870G
• 872G

Features

Replacing damaged or worn hydraulic cylinders can restore the normal operation of equipment, ensuring its performance in various applications.

Enhanced safety: Regular replacement of hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.

Overload protection: New cylinder designs often incorporate better overload protection mechanisms, improving safety.

Quick installation: Modern hydraulic cylinders are designed with ease of installation and replacement in mind, minimizing downtime.

Standardized components: Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

We can produce this product and our hydraulic cylinders are perfect replacements for the ones mentioned above.

Applications

1. Excavators: Hydraulic cylinders on the boom or bucket of excavators may become damaged due to prolonged use or overload, requiring replacement to restore normal operation.

2. Cranes: Hydraulic cylinders on the lifting arm of cranes can wear out due to frequent lifting and lowering processes, necessitating regular replacement for safety reasons.

3. Tractors: Hydraulic cylinders on the front-end loaders of tractors may develop leaks or experience performance degradation due to continuous lifting and tilting operations, requiring replacement.

4. Harvesters: The hydraulic system of harvesters operates under high pressure, and cylinders may suffer fatigue damage, necessitating timely replacement to maintain operational efficiency.

5. Automated production lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency and should be replaced immediately.

6. Die-casting machines: Hydraulic cylinders in die-casting machines may experience performance degradation in high-pressure and high-temperature environments. Regular replacement ensures product quality.

7. Mining equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh operating conditions, regular inspection and replacement are necessary to prevent equipment failures.

8. Bulldozers: The wear of hydraulic cylinders on the bulldozer’s blade can lead to a decrease in pushing capacity, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

Regular inspection, proper lubrication, seal replacement, and calibration checks are common maintenance tasks for hydraulic cylinders. It is important to provide guidance on proper installation, alignment, and the use of appropriate mounting brackets to secure the cylinders. Recommended inspection, repair, and replacement procedures, as well as replacement parts and rebuilding services, should be provided to extend the lifespan of the cylinders.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, safety precautions are essential. It is important to emphasize the significance of safety measures when handling hydraulic cylinders and the importance of proper sealing and lubrication to ensure their performance. Environmental factors should also be taken into account to select the appropriate hydraulic cylinders for specific applications, considering factors such as temperature, pressure, and potential exposure to corrosive substances.

Troubleshooting and Common Issues

1. Cylinder leakage: If there is noticeable leakage from the hydraulic cylinder, it may indicate a faulty seal or a damaged cylinder. Inspect the seals and replace them if necessary.

2. Slow or uneven operation: If the hydraulic cylinder operates slowly or unevenly, it may be due to insufficient lubrication or a blockage in the hydraulic system. Check the lubrication and clear any obstructions.

3. Cylinder drift: If the cylinder drifts or fails to hold its position, it may indicate internal leakage or a malfunctioning valve. Conduct a thorough inspection and repair or replace the faulty components.

4. Excessive noise or vibration: Unusual noise or vibration during cylinder operation may suggest misalignment, loose mounting, or damaged components. Check and correct any alignment issues, tighten mountings, and replace damaged parts if necessary.

5. Cylinder not extending or retracting: If the cylinder fails to extend or retract, it may indicate a problem with the hydraulic pump or a blockage in the hydraulic lines. Inspect the pump and lines for any issues and address them accordingly.

Preventive Measures

To prevent potential issues with hydraulic cylinders, regular maintenance and inspection are crucial. Implementing a preventive maintenance schedule, including lubrication, seal replacements, and system checks, can help identify and address problems before they escalate. Additionally, providing guidelines for proper operation and handling can minimize the likelihood of issues occurring in the first place.

Design Considerations and Selection Criteria

When selecting hydraulic cylinders, several design considerations should be taken into account:

• Load-bearing capacity: The hydraulic cylinder should be able to handle the expected loads without failure.
• Sealing: High-quality seals, such as piston seals and rod seals made of durable materials like polyurethane or nitrile rubber, should be used to ensure proper sealing and longevity.
• Durability: The cylinder body and threaded end should undergo fine processing to enhance wear resistance and overall durability.
• Safety: Hydraulic cylinders should be designed with safety features and mechanisms to prevent accidents and ensure safe operation.
• Maintainability: Consider ease of maintenance, including access to internal components and the availability of replacement parts.

Sealing and Lubrication

Hydraulic cylinders require various sealing components, such as piston seals and rod seals. These seals should be made of wear-resistant materials like polyurethane or nitrile rubber. The cylinder body and threaded end should undergo fine processing to improve wear resistance. Regular lubrication with an appropriate amount of hydraulic oil is necessary to ensure smooth operation and reduce friction.

Regular Inspection and Preventive Maintenance

Regularly inspecting hydraulic cylinders is important to identify any potential issues. Proper installation, lubrication, and adjustment are crucial for optimal performance. During installation
