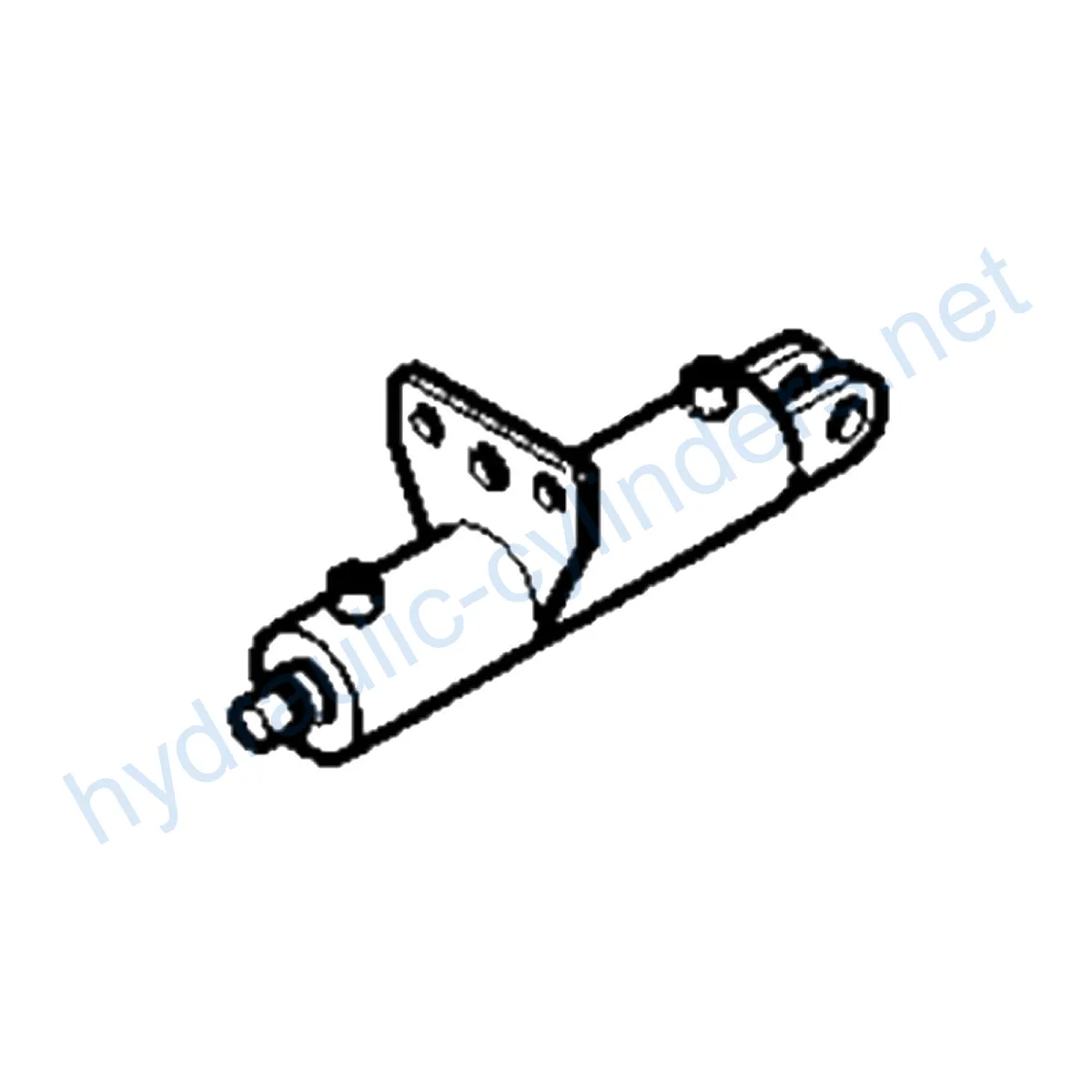

Replacement Of JL129795543 Flat Fold Hydraulic Cylinder

Replacement Of JL129795543 Flat Fold Hydraulic Cylinder

Product Introduction

The Replacement Of JL129795543 Flat Fold Hydraulic Cylinder is a crucial component in hydraulic systems. It is responsible for providing the necessary force and movement to various machinery and equipment. This hydraulic cylinder is designed to replace the original JL129795543 model, ensuring optimal performance and compatibility.

Specifications and Model

– Weight: 99 lb

– Height: 5.5 in

– Width: 7.5 in

– Length: 39 in

– Model: DB120

Key Features

• Enhanced Equipment Performance: Replacing damaged or worn-out hydraulic cylinders restores the normal operating capability of the equipment, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing overall safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

The Replacement Of JL129795543 Flat Fold Hydraulic Cylinder finds its applications in various industries and machinery:

1. Excavators: The hydraulic cylinder is used in the excavator’s boom or bucket, which may get damaged due to extended use or overload, requiring replacement to restore normal operations.
2. Cranes: The crane’s jib hydraulic cylinder experiences wear and tear during frequent lifting and lowering processes, necessitating regular replacement for safety purposes.
3. Tractors: The front-end loader hydraulic cylinder in tractors can develop leaks or performance issues due to continuous lifting and tilting operations, requiring replacement.
4. Harvesters: Hydraulic systems in harvesters operate under high pressure, and cylinders may get damaged due to fatigue, requiring timely replacement to maintain work efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency, necessitating immediate replacement.
6. Die Casting Machines: Hydraulic cylinders in die casting machines may experience performance degradation in high-pressure and high-temperature environments. Regular replacement ensures product quality.
7. Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to the harsh working conditions, regular inspection and replacement are necessary to avoid equipment failures.
8. Bulldozers: Wear on hydraulic cylinders in the bulldozer’s blade arm can lead to a decrease in pushing capacity, requiring timely replacement to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of JL129795543 Flat Fold Hydraulic Cylinder include:

1. Periodic Inspection: Regularly inspecting the cylinder for any signs of damage or wear is essential to identify potential issues and address them promptly.
2. Proper Lubrication: Adequate lubrication ensures smooth operation and extends the lifespan of the cylinder. Using the recommended hydraulic oil and following the manufacturer’s guidelines is crucial.
3. Seal Replacement and Calibration Checks: Over time, seals may deteriorate, leading to leaks and reduced performance. Regularly replacing seals and conducting calibration checks helps maintain optimal functionality.

Safety Considerations and Environmental Factors

When using the Replacement Of JL129795543 Flat Fold Hydraulic Cylinder, it is important to prioritize safety measures. This includes:

• Proper training and knowledge of hydraulic systems and cylinder installation
• Using appropriate personal protective equipment (PPE) when working with hydraulic cylinders
• Following safety guidelines provided by the equipment manufacturer
• Disposing of old or damaged cylinders properly to minimize environmental impact

Troubleshooting and Common Issues

Common issues that may arise with hydraulic cylinders include:

1. Leakage: Inspect seals and connections for leaks, and replace damaged or worn-out seals.
2. Poor Performance: Check for any restrictions in fluid flow, ensure proper lubrication, and inspect for any signs of damage or misalignment.
3. Noise or Vibrations: Inspect for loose or damaged components, and tighten or replace as necessary.
4. Slow Cylinder Movement: Check for low hydraulic fluid levels or restrictions in the hydraulic system, and address accordingly.

Preventive Measures

To minimize potential issues, consider the following preventive measures:

• Regular inspection and maintenance of hydraulic cylinders
• Using high-quality replacement parts from reliable suppliers
• Properly storing and handling cylinders to prevent damage
• Ensuring proper alignment during installation
• Implementing a preventive maintenance schedule

Product Design Considerations and Selection Criteria

When selecting and designing hydraulic cylinders, the following factors should be considered:

1. Load-Bearing Capacity: Ensure the cylinder can handle the required load without compromising performance or safety.
2. Sealing and Durability: Select high-quality seals and materials that can withstand the operating conditions and provide long-lasting performance.
3. Safety: Incorporate safety features such as overload protection and proper locking mechanisms to prevent accidents.
4. Maintainability: Design cylinders with easy access to seals and other components for efficient maintenance and repair.

Sealing and Lubrication

The Replacement Of JL129795543 Flat Fold Hydraulic Cylinder utilizes various sealing components, such as piston seals and rod seals. These seals are made of wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded end surfaces undergo precision machining to enhance wear resistance. Regular lubrication with hydraulic oil is essential for smooth operation and to prevent premature wear.

Regular Inspection and Preventive Maintenance

Regular inspection and preventive maintenance tasks include:

1. Proper installation, lubrication, and adjustment
2. Providing guidance for aligning the cylinder correctly during installation
3. Recommendations for inspection, repair, and replacement procedures
4. Availability of replacement parts and rebuilding services
5. Tips for extending the lifespan of hydraulic cylinders

Product Installation Guide

Proper installation of the Replacement Of JL129795543 Flat Fold Hydraulic Cylinder is crucial for optimal performance and safety. Please follow these guidelines:

1. Ensure the equipment is powered off and de-pressurized before installation.
2. Align the cylinder with the mounting points, ensuring proper fit and clearance.
