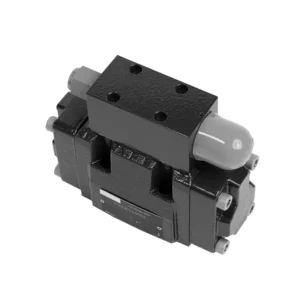

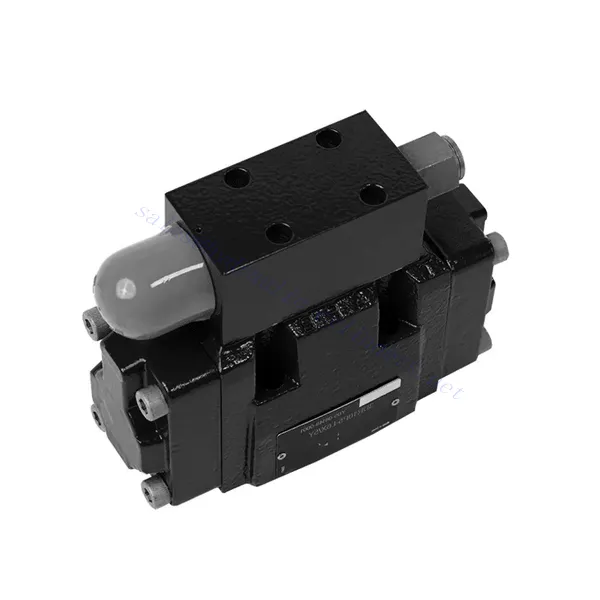

3DR Series Pilot Operated Pressure Reducing Hydraulic Valve

The 3DR series pilot-operated pressure-reducing hydraulic valve is a highly efficient and reliable component that delivers precise pressure control in hydraulic systems. With its advanced pilot-operated mechanism and exceptional performance, this valve ensures an accurate reduction of hydraulic pressure to meet specific system requirements.

The 3DR series pilot-operated pressure-reducing hydraulic valve is a high-performance solution for precise pressure control in hydraulic systems. Featuring a pilot-operated design, precise pressure control, wide pressure range, and high flow capacity, this valve ensures efficient and accurate pressure reduction while safeguarding system components. By following the recommended usage methods and maintenance practices, the 3DR series valve delivers reliable performance, extending the lifespan of hydraulic systems. Upgrade your hydraulic system with the 3DR series pilot-operated pressure-reducing hydraulic valve and experience optimal pressure control for enhanced system efficiency and productivity.

3DR Series Pilot Operated Pressure Reducing Hydraulic Valve Key Characteristics:

• Pilot-Operated Design:
  • The 3DR series valve features a pilot-operated design, which enables it to provide accurate, stable, and reliable pressure reduction in hydraulic systems.
  • It utilizes a separate control circuit, known as the pilot circuit, to regulate the opening of the main valve and control the pressure.
• Precise Pressure Control:
  • This valve offers exceptional precision in pressure control, allowing hydraulic systems to operate within the desired pressure limits.
  • It maintains consistent pressure levels, preventing over-pressurization and safeguarding sensitive system components.
• Wide Pressure Range:
  • The 3DR series valve is available in various pressure ranges, making it suitable for various hydraulic applications.
  • The flexibility in pressure range allows customization to match specific system requirements and optimize performance.
• High Flow Capacity:
  • This valve exhibits excellent flow capacity, enabling it to handle high flow rates without compromising pressure control accuracy.
  • It ensures efficient fluid regulation and uninterrupted system operation, even in demanding applications.

3DR Series Pilot Operated Pressure Reducing Hydraulic Valve Parameter:

3DR Series Pilot Operated Pressure Reducing Hydraulic Valve Advantages:

• Installation face follows DIN 24340 A and ISO 4401
• Four pressure ranges
• Two adjustment types: knob, adjustment screw with protection cap
• With pressure gauge interface

Usage Method Of 3DR Series Pilot Operated Pressure Reducing Hydraulic Valve:

• System Analysis:
  • Conduct a comprehensive hydraulic system analysis to determine the specific pressure control requirements.
  • Consider maximum operating pressure, desired pressure range, and flow rates.
• Valve Selection:
  • Select the appropriate 3DR series valve variant based on the system’s pressure control specifications.
  • Consider pressure rating, flow capacity, and compatibility with other system components.
• Installation:
  • Follow the manufacturer’s instructions to correctly install the 3DR series pilot-operated pressure-reducing valve in the hydraulic system.
  • Ensure proper alignment and secure connections to prevent leaks and optimize performance.
• Calibration:
  • Calibrate the valve to set the desired downstream pressure.
  • Use pressure gauges or other measurement devices to adjust the valve’s pilot circuit accurately.

How Does A Hydraulic Rupture Valve Work?

A hydraulic rupture valve, also known as a burst or pressure relief valve, is a safety device designed to protect hydraulic systems from catastrophic failure in the event of a sudden pressure surge or hydraulic line rupture. Its primary function is to limit the pressure within the system by diverting excess fluid flow when a predetermined pressure threshold is exceeded. Let’s explore how a hydraulic rupture valve works:

1. Valve Construction:
   • A hydraulic rupture valve typically consists of a valve body, a spring-loaded poppet or spool, and an adjustable spring.
   • The valve body contains fluid ports for the inlet, outlet, and a drain or return line to the reservoir.
2. Pressure Setting:
   • The rupture valve has an adjustable spring that determines the pressure at which the valve opens.
   • By adjusting the spring tension, the pressure threshold at which the valve will activate can be set according to system requirements.
3. Pressure Monitoring:
   • As the hydraulic system operates, the pressure level is constantly monitored.
   • The rupture valve is connected to the system at a strategic location, such as downstream of critical components or in high-pressure lines.
4. Pressure Surge or Rupture Detection:
   • If a sudden pressure surge occurs or a hydraulic line ruptures, the pressure within the system rapidly increases beyond the set threshold.
5. Valve Activation:
   • When the pressure exceeds the set threshold, the force exerted by the system pressure overcomes the spring tension.
   • This force causes the rupture valve to open, creating a path for excess fluid to flow out of the system and either return to the reservoir or a designated drain line.
6. Fluid Diversion:
   • By diverting excess fluid flow, the rupture valve effectively limits the pressure within the system, preventing further pressure buildup.
   • This safeguards system components from damage and minimizes the risk of catastrophic failure.
7. Pressure Equalization:
   • As the excess fluid is diverted, the pressure within the system begins to equalize.
   • Once the pressure drops below the set threshold, the spring tension overcomes the force exerted by the system pressure, causing the valve to close.
8. System Restoration:
   • After the rupture valve has closed, the normal flow of hydraulic fluid through the system is restored.
   • The system can continue to operate, albeit at a reduced pressure level, until the cause of the pressure surge or rupture is addressed.

Kemampuan & Kapasitas Pabrik:

(1) Perakitan

Kami memiliki platform perakitan penelitian dan pengembangan independen kelas satu. Bengkel produksi silinder hidrolik memiliki empat jalur perakitan silinder pengangkat semi-otomatis dan satu jalur perakitan silinder kemiringan otomatis, dengan kapasitas produksi tahunan yang dirancang sebesar 1 juta keping. Bengkel silinder khusus dilengkapi dengan berbagai spesifikasi sistem perakitan pembersihan semi-otomatis dengan kapasitas produksi tahunan yang dirancang sebesar 200.000 dan dilengkapi dengan peralatan permesinan CNC yang terkenal, pusat permesinan, peralatan khusus pemrosesan silinder presisi tinggi, mesin las robot, mesin pembersih otomatis, mesin perakitan silinder otomatis, dan jalur produksi pengecatan otomatis. Peralatan penting yang ada lebih dari 300 set (set). Alokasi optimal dan penggunaan sumber daya peralatan yang efisien memastikan persyaratan akurasi produk dan memenuhi kebutuhan produk berkualitas tinggi.

(2) Pemesinan

Bengkel permesinan dilengkapi dengan pusat pembubutan rel miring yang disesuaikan, pusat permesinan, mesin pengasah berkecepatan tinggi, robot pengelasan, dan peralatan terkait lainnya, yang dapat menangani pemrosesan tabung silinder dengan diameter bagian dalam maksimum 400mm dan panjang maksimum 6 meter.

(3) Pengelasan

(4) Pengecatan & pelapisan

Dengan jalur pelapisan cat berbasis air otomatis silinder kecil dan menengah, untuk mencapai bongkar muat robot otomatis dan penyemprotan otomatis, kapasitas desain 4000 buah per shift;
Kami juga memiliki lini produksi cat semi-otomatis untuk silinder besar yang ditenagai oleh rantai daya, dengan kapasitas desain 60 kasus per shift.

(5) Pengujian

Kami memiliki fasilitas inspeksi kelas satu dan test bed untuk memastikan bahwa kinerja silinder memenuhi persyaratan.

We are one of the best hydraulic cylinder manufacturers. We can offer comprehensive hydraulic cylinders. We also provide corresponding gearbox pertanian. Kami telah mengekspor produk kami ke klien di seluruh dunia dan mendapatkan reputasi yang baik karena kualitas produk dan layanan purna jual kami yang unggul. Kami menyambut pelanggan di dalam dan luar negeri untuk menghubungi kami untuk menegosiasikan bisnis, bertukar informasi, dan bekerja sama dengan kami!
