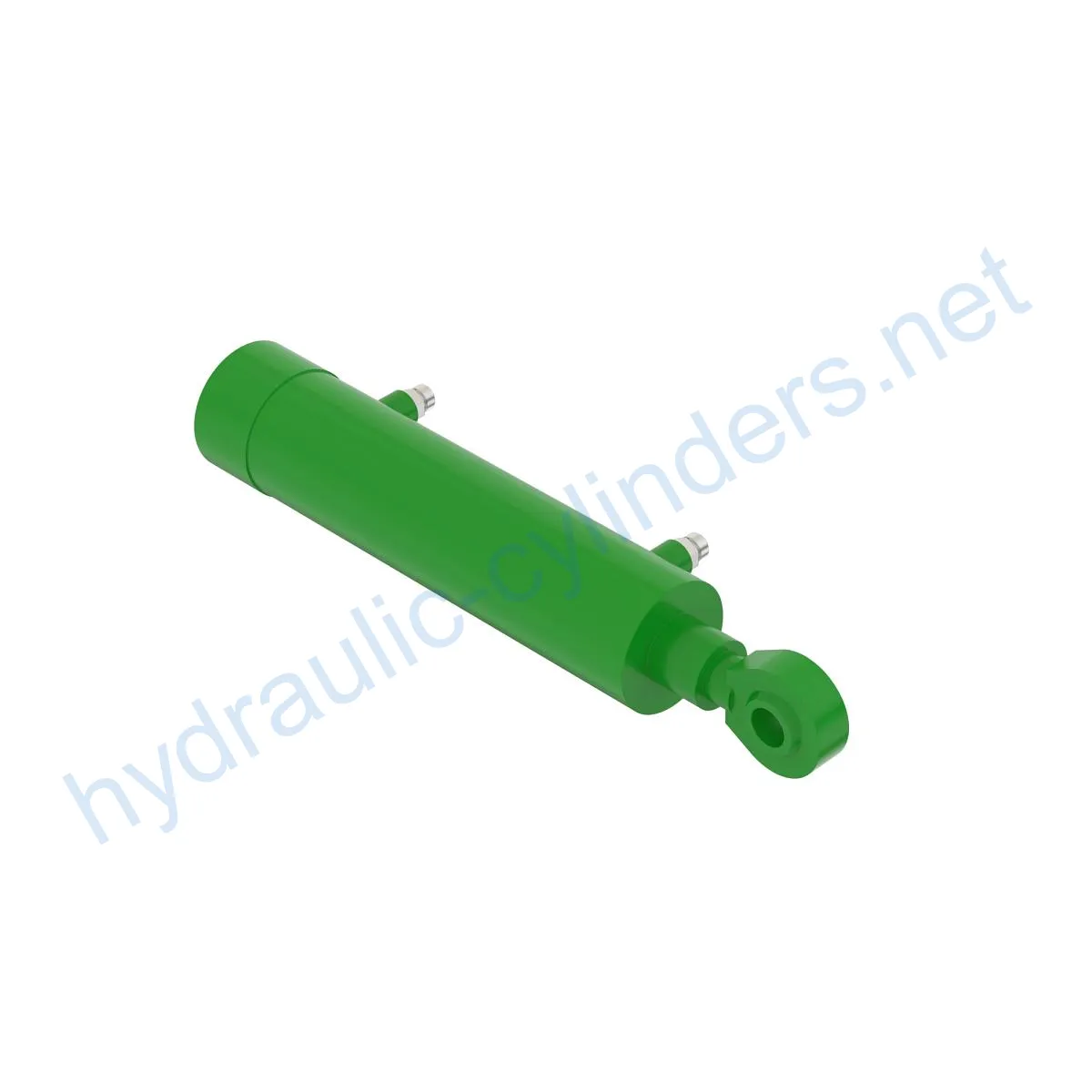

Replacement Of AHC17653 Hydraulic Cylinder

The Replacement Of AHC17653 Hydraulic Cylinder is a crucial component in hydraulic systems that help to convert energy from fluid pressure into mechanical force and motion. It is designed to replace the original hydraulic cylinder that is damaged or worn out, providing a perfect fit and restoring the equipment’s operational capabilities.

Specifications and Model

The Replacement Of AHC17653 Hydraulic Cylinder weighs 34.182 lb, has a height of 3.8 in, a width of 5.5 in, and a length of 20.5 in. The cylinder is compatible with M4030 and M4040 models, and it is made to meet the original equipment manufacturer specifications.

Features

Improves Equipment Performance

Replacing damaged or worn-out hydraulic cylinders can restore the equipment’s normal operational capabilities, ensuring its performance in various applications.

Enhances Safety

Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring operator and equipment safety.

Overload Protection

New cylinder designs typically consider better overload protection mechanisms, enhancing safety.

Quick Installation

Modern hydraulic cylinder designs typically consider ease of installation and replacement, reducing downtime.

Standardized Components

Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

Applications

The Replacement Of AHC17653 Hydraulic Cylinder is widely used in various heavy-duty equipment and machinery. Some examples of its common applications include:

Excavators

The hydraulic cylinder on the excavator’s arm or bucket may get damaged due to prolonged use or overload and needs to be replaced to restore normal operation.

Cranes

The boom hydraulic cylinder on a crane is susceptible to wear during frequent lifting and lowering, requiring periodic replacement to ensure safety.

Tractors

The hydraulic cylinder on the front-end loader of a tractor may leak or lose performance during continuous lifting and tilting operations, requiring replacement.

These are just a few examples of where the Replacement Of AHC17653 Hydraulic Cylinder can be applied.

Maintenance Tasks

Regular maintenance tasks for hydraulic cylinders include:

Periodic Inspection

Regular checks on the cylinder’s components, including the rod, piston, and seals, can help detect potential problems.

Lubrication

Proper lubrication of the cylinder rod and seals can prevent wear and extend the cylinder’s service life.

Seal Replacement

Replacing worn-out seals can prevent oil leaks and ensure the cylinder’s proper function.

Proper installation, lubrication, and adjustment are critical to the cylinder’s performance. It is essential to provide correct guidance on aligning the cylinder during installation, recommend using appropriate mounting brackets to secure it, and provide inspection, repair, and replacement procedures to increase its lifespan.

Safety Considerations and Environmental Factors

When dealing with hydraulic cylinders, it is important to follow appropriate safety measures. For instance, using protective gear such as gloves and goggles, and avoiding contacting hot or pressurized components.

The environmental factors that affect hydraulic cylinders include temperature, humidity, and contamination. Extreme weather conditions can cause cylinder components to wear or become corroded, leading to early failure.

Common Problems and Troubleshooting

Some common problems that could arise with the hydraulic cylinder include:

Leaking Cylinders

Oil leakage can be a result of worn-out seals, damaged piston rods, or cylinder tube scores. Seal replacement or cylinder repair may be necessary.

Slow Cylinder Movements

Slow cylinder movements may result from low hydraulic pressure, insufficient lubrication, or contamination in the system. These issues require inspection and repair.

Noisy Cylinders

Noisy cylinders may be due to damaged or loose piston rods, worn-out bearings, or insufficient lubrication. Check and repair as necessary.

It is important to provide tips on addressing these problems and effective methods for diagnosing and preventing them.

Design Considerations and Selection Criteria

When choosing and designing hydraulic cylinders, key factors to consider include:

Load-Bearing Capacity

Ensure that the hydraulic cylinder can withstand the maximum load it will be subjected to without failing, considering factors such as force, speed, and pressure.

Sealing and Durability

Choose materials that can withstand wear, tear, and high-pressure conditions, such as polyurethane and nitrile rubber seals. Treat cylinder surfaces to enhance wear resistance.

Safety and Maintenance

Design features that prioritize safety, such as incorporating overload protection mechanisms and making maintenance easy.

The use of various seals, including piston seals and rod seals, is necessary to ensure that the hydraulic cylinder functions optimally. Regular lubrication and addition of hydraulic fluid are necessary to reduce wear.

Provide information on how to choose and design hydraulic cylinders that meet specific needs.

Company Introduction

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, specializing in producing replacement cylinders. Our comprehensive range of products has made us a leading manufacturer and supplier in the domestic and international markets.

Our company prides itself on providing professional, international-certified, and custom services. We use advanced production equipment and offer after-sale services to our customers.
