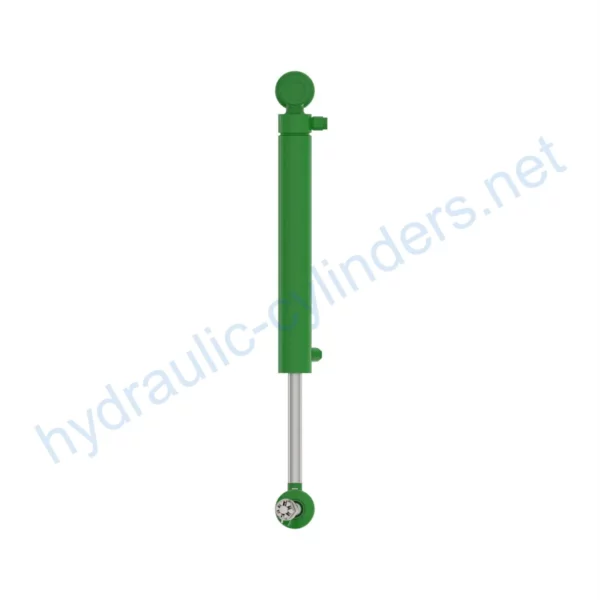

Replacement Of FYD00013567 Hydraulic Cylinder Boom

The Replacement Of FYD00013567 Hydraulic Cylinder Boom is an essential component in various industrial machinery. This hydraulic cylinder is designed to provide reliable and efficient performance in lifting and moving heavy loads. With a weight of 187.784 lb, a height of 11.3 in, a width of 15.9 in, and a length of 61 in, it offers the necessary strength and dimensions for demanding applications. This specific model, the 85G, is designed to fit a variety of equipment.

Introduction

The Replacement Of FYD00013567 Hydraulic Cylinder Boom is a crucial part of hydraulic systems, responsible for converting hydraulic energy into linear motion. It plays a vital role in various applications, such as excavators, cranes, tractors, harvesters, and automated production lines.

Specifications and Model

The Replacement Of FYD00013567 Hydraulic Cylinder Boom weighs 187.784 lb and has a height of 11.3 in, a width of 15.9 in, and a length of 61 in. It is specifically designed for the 85G model, ensuring compatibility and optimal performance.

Features

1. Improved Equipment Performance

Replacing damaged or worn-out hydraulic cylinders, such as the Replacement Of FYD00013567, can restore the normal operational capabilities of equipment, ensuring their performance in various applications.

2. Enhanced Safety

Regularly replacing hydraulic cylinders helps minimize safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.

3. Overload Protection

New cylinder designs often incorporate better overload protection mechanisms, enhancing the overall safety of the equipment.

4. Quick Installation

Modern hydraulic cylinders are designed for easy installation and replacement, reducing downtime and maximizing productivity.

5. Standardized Components

Many hydraulic cylinders, including the Replacement Of FYD00013567, are standardized products, making it easier to obtain replacement parts on the market.

Applications

The Replacement Of FYD00013567 Hydraulic Cylinder Boom finds its application in various industries. Here are a few examples:

Excavators

In excavators, the hydraulic cylinder in the boom or bucket may get damaged due to extended use or overload. Replacing it is crucial to restore normal operations.

Cranes

The crane’s boom hydraulic cylinder is subject to wear during frequent lifting and lowering processes. Regular replacement is necessary to ensure safety.

Tractors

The front-end loader hydraulic cylinder in tractors can experience leaks or performance degradation during continuous lifting and tilting operations. Replacement is required to maintain optimal performance.

Harvesters

Hydraulic cylinders in harvesters’ hydraulic systems undergo high pressure and fatigue during harvesting. Timely replacement is necessary to maintain efficiency.

Automated Production Lines

Hydraulic cylinders control mechanical arms and other automated equipment in production lines. Immediate replacement is essential to avoid disruptions in productivity.

Other Applications

The Replacement Of FYD00013567 Hydraulic Cylinder Boom also finds usage in mining equipment, bulldozers, and other machinery where lifting, moving, or pushing heavy loads is required.

Maintenance Tasks

To ensure the longevity and optimal performance of the Replacement Of FYD00013567 Hydraulic Cylinder Boom, the following maintenance tasks are recommended:

1. Regular Inspections

Periodically inspect the cylinder for any signs of wear, damage, or leaks. Address any issues promptly to prevent further damage.

2. Proper Lubrication

Ensure the cylinder is appropriately lubricated with the recommended hydraulic oil to minimize friction and extend its lifespan.

3. Seal Replacement and Calibration Checks

Replace seals when necessary to maintain the cylinder’s integrity. Regularly calibrate the cylinder to ensure accurate performance.

Safety Considerations and Environmental Factors

When using the Replacement Of FYD00013567 Hydraulic Cylinder Boom, it is crucial to adhere to safety measures and consider environmental factors. Proper usage of safety measures when handling hydraulic cylinders ensures the well-being of operators and the surrounding environment.

Fault Diagnosis and Common Problems

The Replacement Of FYD00013567 Hydraulic Cylinder Boom may encounter various issues over time. Here are some common problems:

1. Leakage

If the hydraulic cylinder exhibits signs of leakage, it may require seal replacement or repair.

2. Reduced Performance

Decreased performance, such as slow or insufficient movement, could indicate internal damage or worn-out components that require replacement.

3. Malfunction

If the hydraulic cylinder fails to function altogether, it may be due to internal valve issues or damage to the piston. Professional inspection and repair may be necessary.

Proper troubleshooting techniques and solutions are crucial for effective diagnosis and resolution of hydraulic cylinder problems. Adequate preventive measures minimize potential issues and ensure efficient operation.

Design Considerations and Selection Criteria

When considering the design and selection of hydraulic cylinders, several factors come into play:

1. Load-Bearing Capacity

The hydraulic cylinder must be designed to withstand the anticipated loads and provide sufficient force for the application.

2. Sealing and Durability

Using various sealing components, such as piston seals and rod seals made from wear-resistant materials like polyurethane and nitrile rubber, ensures longevity and prevents leaks.

3. Safety and Maintenance

Design features that prioritize safety, ease of installation, lubrication, and adjustment contribute to the overall performance and longevity of the hydraulic cylinder.

Sealing and Lubrication

The Replacement Of FYD00013567 Hydraulic Cylinder Boom utilizes a range of sealing components and lubrication methods to ensure optimal performance:

Sealing components, such as piston seals and rod seals, are carefully selected to withstand the demanding conditions. The cylinder body and threaded end surfaces undergo precise treatments to enhance wear resistance. Regular lubrication with the recommended hydraulic oil is necessary to provide proper lubrication and reduce friction.

Regular Inspections and Preventative Maintenance

To maximize the lifespan of the Replacement Of FYD00013567 Hydraulic Cylinder Boom, regular inspections and preventative maintenance are essential:

1. Proper Installation

Ensure correct alignment of the cylinder during installation and provide guidance on aligning the cylinder correctly. Use appropriate mounting brackets to secure the cylinder in place.

2. Recommended Inspection, Repair, and Replacement Procedures

Provide recommended procedures for inspecting, repairing, and replacing components, including information on sourcing replacement parts and rebuilding services.

3. Tips for Prolonging Lifespan

Offer tips and
