Replacement Of F683822 Hydraulic Cylinder

Replacement Of F683822 Hydraulic Cylinder

Product Definition

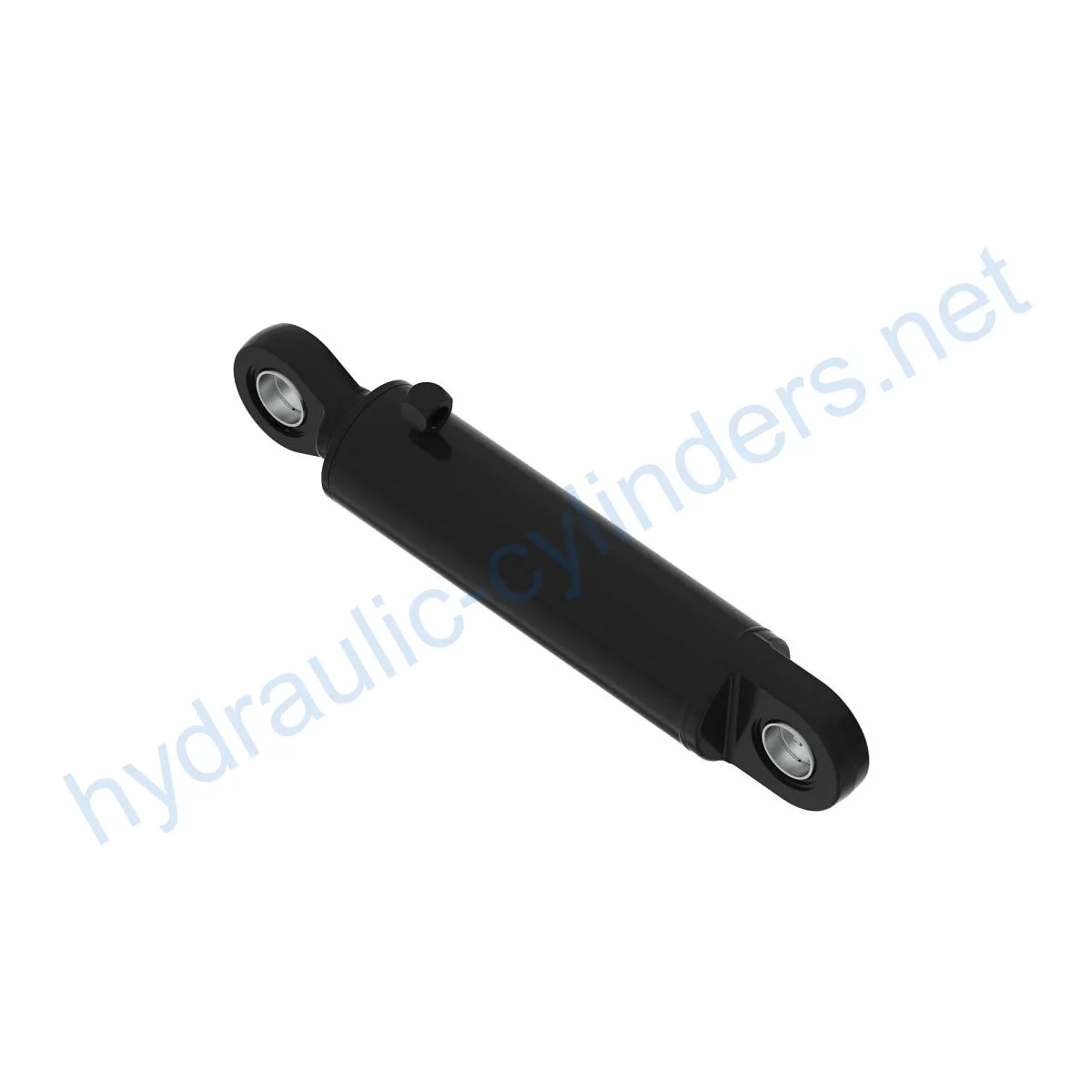

The Replacement Of F683822 Hydraulic Cylinder is a component of various types of heavy machinery, including 1070E, 1170E, 1270E, 1270G, 1470E, CH6, and CH7 machines. The hydraulic cylinder is responsible for the movement of the machinery’s arms or buckets. It is crucial for the proper functioning and operation of the machine.

Product Specifications and Models

The Replacement Of F683822 Hydraulic Cylinder comes with a weight of 150 lb and measures 15.5 inches in height, 15.5 inches in width, and 46 inches in length. It is compatible with the following machine models: 1070E, 1170E, 1270E, 1270G, 1470E, CH6, and CH7.

Product Features

Improved Equipment Performance

By replacing damaged or worn-out hydraulic cylinders, the Replacement Of F683822 Hydraulic Cylinder can restore the machine’s normal operating capabilities, ensuring its performance in various applications.

Enhanced Safety

Regular replacement of the hydraulic cylinder can reduce safety hazards caused by cylinder failure, ensuring the safety of both the operator and the machine.

Overload Protection

New cylinder designs typically consider better overload protection mechanisms, improving safety.

Quick Installation

Modern hydraulic cylinder designs are often easy to install and replace, reducing downtime.

Standardized Components

Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Application of the Hydraulic Cylinder

The Replacement Of F683822 Hydraulic Cylinder has various applications in heavy machinery. Here are some examples:

1. Excavator

The hydraulic cylinder on the arm or bucket of an excavator may become damaged due to long-term use or overload and require replacement to restore normal operation.

2. Crane

The crane’s boom hydraulic cylinder is prone to wear and tear during frequent lifting and lowering processes, requiring periodic replacement to ensure safety.

3. Tractor

The front-end loader hydraulic cylinder on a tractor may experience leaks or performance degradation during continuous lifting and tilting operations, requiring replacement.

4. Harvester

During the harvesting process, the hydraulic system is subjected to high pressure, and the cylinder may become damaged due to fatigue, requiring timely replacement to maintain work efficiency.

5. Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failure can affect production efficiency, requiring immediate replacement.

6. Die Casting Machine

The hydraulic cylinder may experience performance degradation under high pressure and high-temperature environments. Regular replacement can ensure product quality.

7. Mining Equipment

Hydraulic cylinders are used for lifting and moving heavy objects in mining equipment. The harsh working environment requires regular inspection and replacement to avoid equipment failure.

8. Bulldozer

The wear and tear of the hydraulic cylinder on the bulldozer’s push arm can lead to a decrease in pushing ability, requiring timely replacement to maintain work efficiency.

Maintenance Tasks

1. Regular Inspection

Regular inspection of the hydraulic cylinder ensures early detection of potential problems, reducing the risk of equipment failure and improving safety.

2. Proper Lubrication

Proper lubrication of the hydraulic cylinder can reduce wear and tear, prolonging the cylinder’s lifespan, and improving the machine’s performance.

3. Sealing Replacement and Calibration

Replacing the seals and calibrating the hydraulic cylinder can help maintain its performance and prevent leaks.

Product Safety and Environmental Considerations

When using the Replacement Of F683822 Hydraulic Cylinder, it is important to adhere to safety measures. Proper installation, lubrication, and maintenance are crucial for ensuring safe operation. Additionally, it is important to dispose of the hydraulic cylinder in an environmentally responsible manner.

Fault Diagnosis and Common Problems

Some common problems that may arise with the hydraulic cylinder include leaks, degraded performance, and failure to extend or retract. Fault diagnosis requires a thorough inspection of the cylinder’s internal components and connections. Proper identification of the problem can lead to effective solutions, including proper lubrication, sealing replacement, or cylinder replacement.

Product Design Considerations and Selection Criteria

The Replacement Of F683822 Hydraulic Cylinder’s design considers its load-bearing capacity, sealing, durability, safety, and repairability. The cylinder’s selection criteria should reflect these considerations and ensure compatibility with the machine’s model and application requirements. It is important to choose high-quality components from reputable manufacturers and suppliers.

Sealing and Lubrication

The hydraulic cylinder requires various sealing components, including piston seals and rod seals, which can be made of materials such as polyurethane or nitrile rubber for improved wear resistance. The cylinder’s body and thread surfaces undergo fine processing to enhance wear resistance and require periodic lubrication with hydraulic oil to ensure proper operation.

Preventive Maintenance Measures

1. Regular Inspection and Maintenance

Regular inspection and maintenance can help detect problems early and prevent equipment failures.

2. Proper Lubrication

Proper lubrication can extend the cylinder’s lifespan and improve its performance.

3. Sealing Replacement and Calibration

Replacing seals and calibrating the cylinder can help maintain its performance and prevent leaks.

Installation Guide

Proper installation of the Replacement Of F683822 Hydraulic Cylinder is critical for safe and efficient operation. Correct alignment of the cylinder is essential, and the use of suitable installation brackets can help secure it in place. Recommended inspection, repair, and replacement procedures can help extend the cylinder’s lifespan and improve its performance.

Company Introduction

We are a manufacturer of replacement hydraulic cylinders with a wide range of products. We are one of the leading manufacturers and wholesalers of hydraulic cylinders in the domestic and international markets. Our company is dedicated to providing professional, customized services, and high-quality products. We have obtained various international certifications, and we offer after-sales services, including replacement parts and rebuild services.
