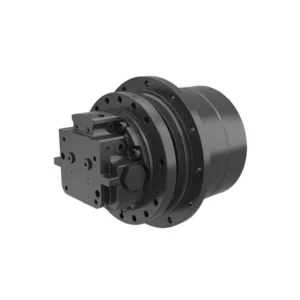

HM4V serijos ašinis stūmoklinis kintamo tūrio hidraulinis variklis
The HM4V series axial piston variable displacement hydraulic motor is a state-of-the-art product that delivers exceptional performance and versatility in hydraulic systems. Designed with advanced features, robust construction, and precise control, this hydraulic motor sets new benchmarks in the industry.
The HM4V series axial piston variable displacement hydraulic motor is a powerful and efficient solution for hydraulic systems. Its variable displacement capability, high power-to-size ratio, and precise control offer unparalleled performance and adaptability. Following the recommended usage methods and adhering to regular maintenance practices, the HM4V series motor will continue delivering outstanding power and efficiency. Harness the power and efficiency of the HM4V series axial piston variable displacement hydraulic motor to elevate the performance of your hydraulic system.
HM4V Serie Axial Piston Variable Displacement Hydraulic Motor Key Characteristics:
- Variable Displacement Capability:
- The HM4V series motor incorporates cutting-edge variable displacement technology, allowing operators to adjust the motor’s displacement and output to meet specific application requirements.
- This feature provides enhanced control, efficiency, and adaptability, making it suitable for various hydraulic systems.
- High Power-to-Size Ratio:
- Despite its compact size, the HM4V series motor offers an impressive power-to-size ratio, delivering substantial power output while occupying minimal space.
- This characteristic is advantageous in applications with limited installation area or weight constraints.
- Efektyvus našumas:
- The axial piston design of the HM4V series motor ensures efficient power transmission, minimizing energy losses and maximizing overall system efficiency.
- This results in reduced fuel consumption, lower operating costs, and improved environmental sustainability.
- Precise Speed Control:
- The HM4V series motor provides precise control over motor speed, enabling operators to match the output speed to the desired application requirements.
- This level of control ensures optimal performance, smooth operation, and increased productivity.
HM4V Serie Axial Piston Variable Displacement Hydraulic Motor Parameter:
| Specifikacija | 11 | 21 | 22 | |
| Max displacement (cc/rev) | 11.3 | 20.7 | 22.1 | |
| Sukimosi kryptis | bidirectional | |||
| Max rotation speed (rpm) | 75 | 70 | 70 | |
| Max service pressure (bar) | 245 | 245 | 245 | |
| Maximum braking torque(N·m) | – | 55.9 | 55.9 | |
| Two-speed switch pilot pressure | Normal (bar) | 33 | ||
| Max (bar) | 49 | |||
| Shell pressure | Rated (bar) | 3 | ||
| Max (bar) | 10 | |||
| Deceleration ratio | 36.96 | 36.51 | 52.73 | |
| Svoris kg | 16 Containing Gearbox |
34 Containing Gearbox |
44 Containing Gearbox |
|
| Oil viscosity mm2/s | 7~1600, Best range：12~80 | |||
| Oil Temperature ℃ | -20~90 | |||
| Oil Cleanliness | ISO 4406 20/18/15 | |||
HM4V Serie Axial Piston Variable Displacement Hydraulic Motor Advantages:
• It is a special motor for hydraulic excavator track walking.
• High efficiency plunger motor and high precision reducer composite products.
• Compact and capable of powerful walking.
HM4V serijos ašinis stūmoklinis kintamo tūrio hidraulinis variklis Taikymas:
Usage Method Of HM4V Serie Axial Piston Variable Displacement Hydraulic Motor:
- Montavimas ir integravimas:
- Identify a suitable location within the hydraulic system to mount the HM4V series axial piston variable displacement hydraulic motor.
- Ensure proper alignment and securely mount the motor using appropriate brackets or accessories.
- Connect the motor to the hydraulic system using compatible fittings and hoses, ensuring tight and leak-free connections.
- Displacement Adjustment:
- Familiarize yourself with the displacement adjustment mechanism provided with the HM4V series motor.
- Depending on the model, it may offer manual adjustment or electronic control options.
- Understand the recommended adjustment procedures and settings to optimize motor performance for your application.
- Sistemos integracija:
- Integrate the HM4V series motor into the hydraulic system by connecting it to other components such as pumps, valves, and actuators.
- Ensure the motor’s displacement and performance align with the system requirements.
- Apkrovos aspektai:
- Consider your application’s load requirements when using the HM4V series motor.
- Ensure the motor’s power and torque ratings suit the intended task.
- Avoid overloading the motor to prevent excessive wear and potential damage.
