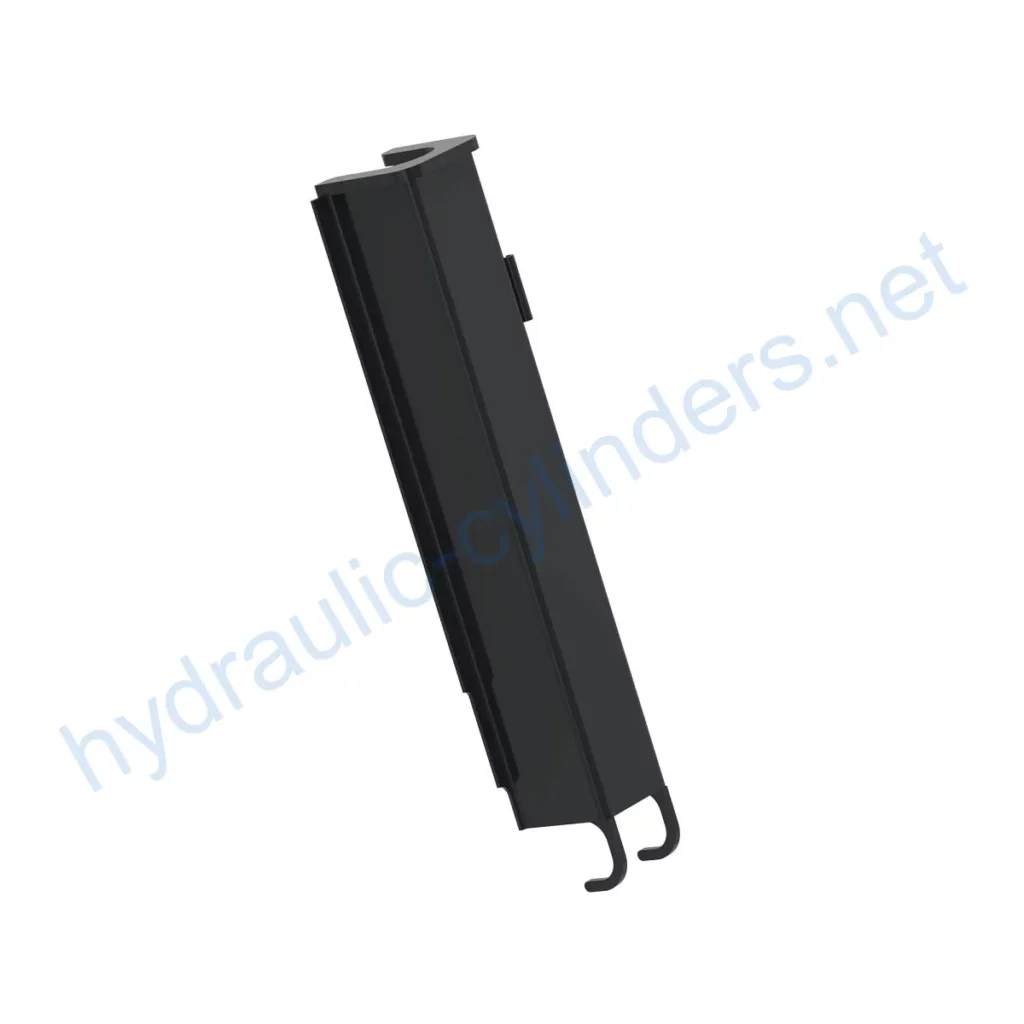

Replacement Of AH209789 Header Lift Hydraulic Cylinder Stop
The Replacement Of AH209789 Header Lift Hydraulic Cylinder Stop is a hydraulic cylinder designed to replace damaged or worn-out hydraulic cylinders in various machines, including the 9560 STS, 9650 STS, 9660 STS, 9750 STS, 9760 STS, 9860 STS, and 9880 STS. It has a weight of 23.69 lb, a height of 6 in, a width of 9 in, and a length of 31 in.
Introduction
The hydraulic cylinder is a mechanical actuator used to provide unidirectional force through a unidirectional stroke. The Replacement Of AH209789 Header Lift Hydraulic Cylinder Stop is designed to replace damaged or worn-out hydraulic cylinders in various machines like harvesters, tractors, excavators, cranes, and other heavy-duty equipment. It provides reliable performance and ensures the equipment operates at optimal levels.
Specifications and Models
The Replacement Of AH209789 Header Lift Hydraulic Cylinder Stop has a weight of 23.69 lb, a height of 6 in, a width of 9 in, and a length of 31 in. It is compatible with various John Deere harvester models like the 9560 STS, 9650 STS, 9660 STS, 9750 STS, 9760 STS, 9860 STS, and 9880 STS.
Features
- Improves Equipment Performance: Replacing damaged or worn-out hydraulic cylinders can restore the equipment??s normal operating ability, ensuring its performance in various applications.
- Enhances Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failure, ensuring the operator and equipment??s safety.
- Overload Protection: Modern hydraulic cylinder designs typically consider better overload protection mechanisms, improving safety.
- Quick Installation: Modern hydraulic cylinder designs usually consider easy installation and replacement, reducing downtime.
- Standardized Components: Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.
Our company can produce this product, which can perfectly replace these hydraulic cylinders.
Applications
The Replacement Of AH209789 Header Lift Hydraulic Cylinder Stop is widely used in various applications:
- Excavators: Damage or overload can cause the hydraulic cylinder to fail, requiring replacement to restore normal operation.
- Cranes: The hydraulic cylinder in the crane??s lifting arm is prone to wear during frequent lifting and lowering operations, requiring regular replacement to ensure safety.
- Tractors: The hydraulic cylinder in the front-end loader of the tractor may leak or have performance degradation during constant lifting and tilting operations, requiring replacement.
- Harvesters: During the harvesting process, the hydraulic system undergoes high pressure, and the cylinder may be damaged due to fatigue, requiring timely replacement to maintain work efficiency.
- Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. A cylinder failure can affect production efficiency and require immediate replacement.
- Die Casting Machines: In high-pressure and high-temperature conditions, hydraulic cylinders may experience performance degradation. Regular replacement can ensure product quality.
- Mining Equipment: Hydraulic cylinders are used to lift and move heavy objects in mining equipment. Due to the harsh working environment, regular inspection and replacement are necessary to avoid equipment failure.
- Bulldozers: The wear of the hydraulic cylinder in the bulldozer’s blade can cause a decrease in bulldozing capacity, requiring timely replacement to maintain work efficiency.
Maintenance
Regular maintenance is essential to ensure the longevity and optimal performance of the Replacement Of AH209789 Header Lift Hydraulic Cylinder Stop. The following are common maintenance tasks:
Inspection
Regular inspection can help identify potential issues and prevent them from escalating. Inspections should include checking for leaks, cracks, or any other damage on the cylinder??s body or piston rod.
Lubrication
Proper lubrication can reduce friction and prevent wear and tear. It is recommended to use a suitable hydraulic oil to lubricate the cylinder.
Seal Replacement
Seals can wear out over time and cause leaks. Replacing seals can prevent leaks and ensure optimal performance.
It is important to provide proper guidance for aligning the cylinder during installation. The use of suitable installation brackets to secure the cylinder is recommended. Recommended inspection, repair, and replacement procedures are also available, providing replacement parts and rebuilding services, and offering tips to extend the life of the hydraulic cylinder.
Safety Considerations and Environmental Factors
When using hydraulic cylinders, safety measures are essential. It is important to follow all safety protocols, including wearing protective equipment to prevent injury. Additionally, environmental factors can affect the performance of hydraulic cylinders. Regular inspection and replacement can help prevent failures due to environmental factors.
Fault Diagnosis and Common Issues
Common issues that may arise with hydraulic cylinders include leaks, cracks, and wear and tear. To diagnose faults, one should start by analyzing the symptoms and identifying any damage to the cylinder. Regular maintenance and inspection can help prevent these issues from escalating.
Providing fault handling tips and solutions is essential to help readers diagnose and solve problems effectively. Additionally, providing preventative measures can help reduce potential problems.
Design Considerations and Selection Criteria
When selecting hydraulic cylinders, several factors should be considered, including load-bearing capacity, sealing, durability, safety, and maintainability. Design considerations should also include the use of various seals and wear-resistant materials, as well as precise surface treatment of cylinder bodies and threaded ends to improve wear resistance.
Sealing and Lubrication
The use of various seals, including piston seal rings and rod seal rings, made of wear-resistant materials such as polyurethane and nitrile rubber, is recommended to ensure reliable sealing and prevent leaks. Additionally, regular lubrication with hydraulic oil can prolong the life of the hydraulic cylinder.
Preventative Maintenance
Preventative maintenance is essential to prevent potential issues before they become major problems. Regular inspections, lubrication, and seal replacement can help prevent cylinder damage and ensure optimal performance.
Installation Guide
Proper installation is essential to ensure the hydraulic cylinder operates optimally. It is important to provide proper guidance on aligning the cylinder during installation and using suitable installation brackets to secure the cylinder.
Conclusion
Our company is a leading manufacturer and wholesale distributor of hydraulic cylinders, with a wide range of product offerings for domestic and international markets. Our company provides customized services, international certifications, high-quality production equipment, and excellent after-sales service.
