Product Introduction

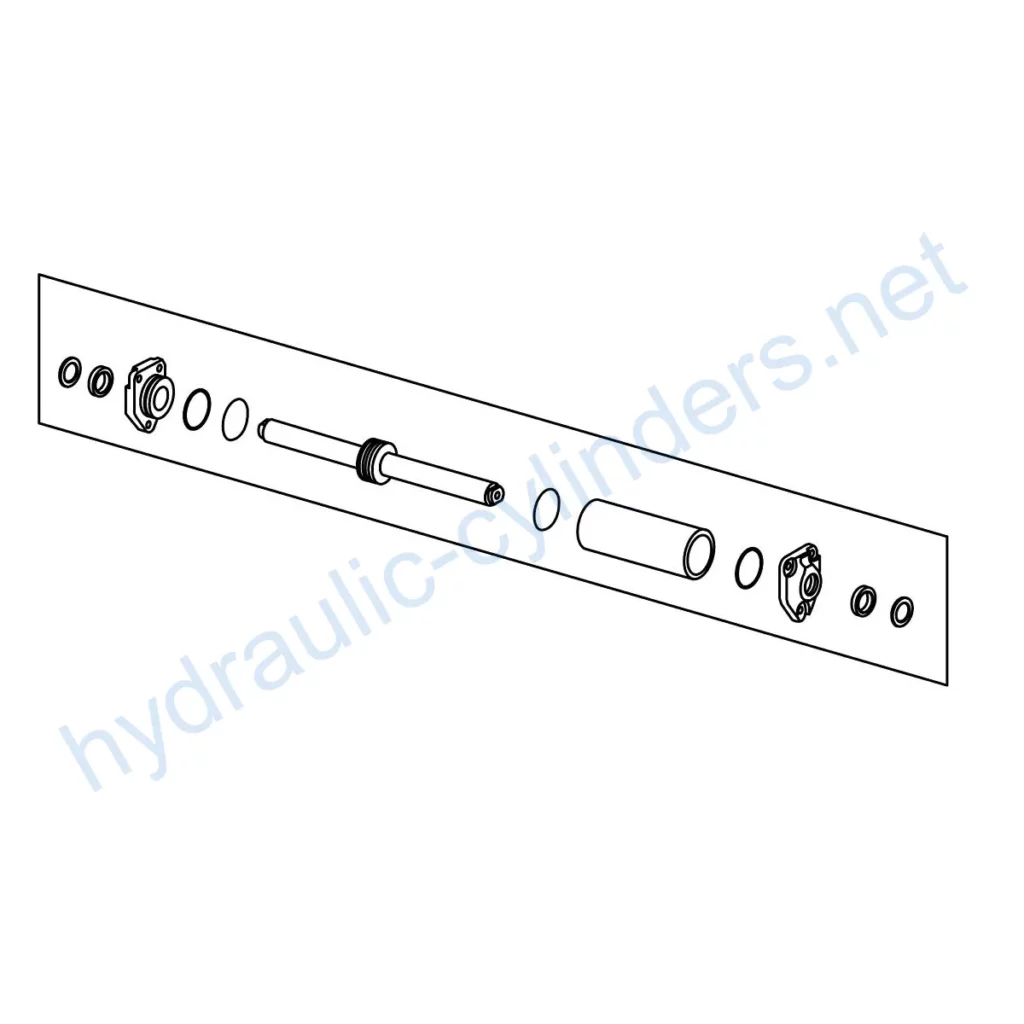

The Replacement Of SJ16478 MFWD Steering Hydraulic Cylinder is a crucial component used in various models such as 5060EN, 5075EF, 5075EN, and more. This hydraulic cylinder plays a vital role in the proper functioning of equipment by providing steering support.
Specifications and Models
Specifications:
- Weight: 12.32 lb
- Height: 4.3 in
- Length: 18.2 in
Models:
- 5060EN
- 5075EF
- 5075EN
- 5076E
- 5076EF
- 5076EL
- 5076EN
- 5080EN
- 5083EN
- 5090EL
- 5090EN
- 5093EN
- 5101EN
- 5310N
- 5320N
- 5325N
- 5420N
- 5425N
- 5510N
- 5520N
- 5525N
Product Features
- Improved Equipment Performance: Replacing damaged or worn-out hydraulic cylinders restores the equipment’s normal operational capability, ensuring optimum performance in various applications.
- Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
- Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, increasing overall safety.
- Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
- Standardized Components: Many hydraulic cylinders are standardized, making it easier to obtain replacement parts in the market.
Applications
- Excavators: Hydraulic cylinders in excavator arms or buckets may get damaged due to prolonged use or overload, requiring replacement to restore normal operations.
- Cranes: The hydraulic cylinders in crane boom lifts are prone to wear during frequent lifting and lowering processes, necessitating regular replacement to ensure safety.
- Tractors: Front-end loader hydraulic cylinders on tractors may experience leaks or performance degradation during continuous lifting and tilting operations, necessitating replacement.
- Harvesters: Hydraulic systems in harvesters endure high pressure during the harvesting process, and cylinders may get damaged due to fatigue, requiring timely replacement to maintain work efficiency.
- Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failure can significantly impact production efficiency, requiring immediate replacement.
- Die Casting Machines: Hydraulic cylinders in die casting machines may experience performance degradation under high pressure and temperature environments. Regular replacement ensures product quality.
- Mining Equipment: Hydraulic cylinders are used in mining equipment for lifting and moving heavy loads. Due to the harsh working conditions, regular inspection and replacement are necessary to avoid equipment failures.
- Bulldozers: Hydraulic cylinder wear on bulldozer blades can lead to a decrease in pushing power. Timely replacement is essential to maintain operational efficiency.
Maintenance Tasks
Regular maintenance tasks for hydraulic cylinders include:
- Periodic inspections
- Proper lubrication
- Seal replacements
- Calibration checks
It is crucial to emphasize the importance of correct installation, lubrication, and adjustment. Providing proper guidance for aligning the cylinder during installation and recommending the use of appropriate mounting brackets to secure the cylinder are essential. Additionally, suggesting inspection, repair, and replacement procedures, offering parts replacement and rebuilding services, and providing tips to extend the lifespan of the hydraulic cylinder contribute to effective maintenance.
Safety Considerations and Environmental Factors
When using hydraulic cylinders, it is vital to prioritize safety measures. Proper handling techniques, including the correct use of personal protective equipment, are essential to prevent accidents. Additionally, environmental factors such as proper disposal of used cylinders and adherence to relevant environmental regulations should be considered.
Troubleshooting and Common Issues
Common issues related to hydraulic cylinders include:
- Leakage
- Poor cylinder performance
- Excessive noise
- Inconsistent operation
- Failure to extend or retract
To address these problems, it is essential to provide troubleshooting tips and solutions to help readers effectively diagnose and resolve issues. Offering preventive measures to minimize potential problems is also crucial.
Product Design Considerations and Selection Criteria
When considering the design of hydraulic cylinders, factors such as load-bearing capacity, sealing effectiveness, durability, safety features, and ease of maintenance should be taken into account.
Sealing and Lubrication
To ensure optimal performance and longevity, hydraulic cylinders utilize various sealing components such as piston seals and rod seals made of durable materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to maintain smooth operation.
Regular Inspections and Preventive Maintenance
Regular inspections and preventive maintenance are crucial to prolonging the lifespan of hydraulic cylinders. Proper installation, lubrication, and adjustment are essential for optimal performance. Providing accurate guidance on cylinder alignment during installation, recommending the use of suitable mounting brackets, suggesting inspection, repair, and replacement procedures, offering parts replacement and rebuilding services, and providing tips to extend the cylinder’s lifespan are essential aspects of maintenance.
Product Installation Guide
Proper installation of the Replacement Of SJ16478 MFWD Steering Hydraulic Cylinder is essential to ensure its functionality and longevity. Follow the guidelines below for correct installation:
- Prepare the installation area and ensure it is clean and free from debris.
-
