Axial Tripod Type Metallurgical Hydraulic Cylinder

As one of the hydraulic cylinders manufacturers, suppliers, and exporters of mechanical products, We offer hydraulic cylinders and many other products.

Please get in touch with us for details.

Mail:[email protected]

Manufacturer supplier exporter of hydraulic cylinders.

Axial Tripod Type Metallurgical Hydraulic Cylinder

The axial tripod-type metallurgical hydraulic cylinder is a highly efficient and durable component explicitly designed for metallurgical applications. This product offers superior performance, precise control, and reliable operation in demanding industrial settings. Its unique axial tripod design ensures stability, accuracy, and enhanced safety.

Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of flange, earrings, pins, trippers (base) and different types.

High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

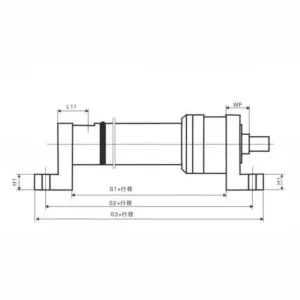

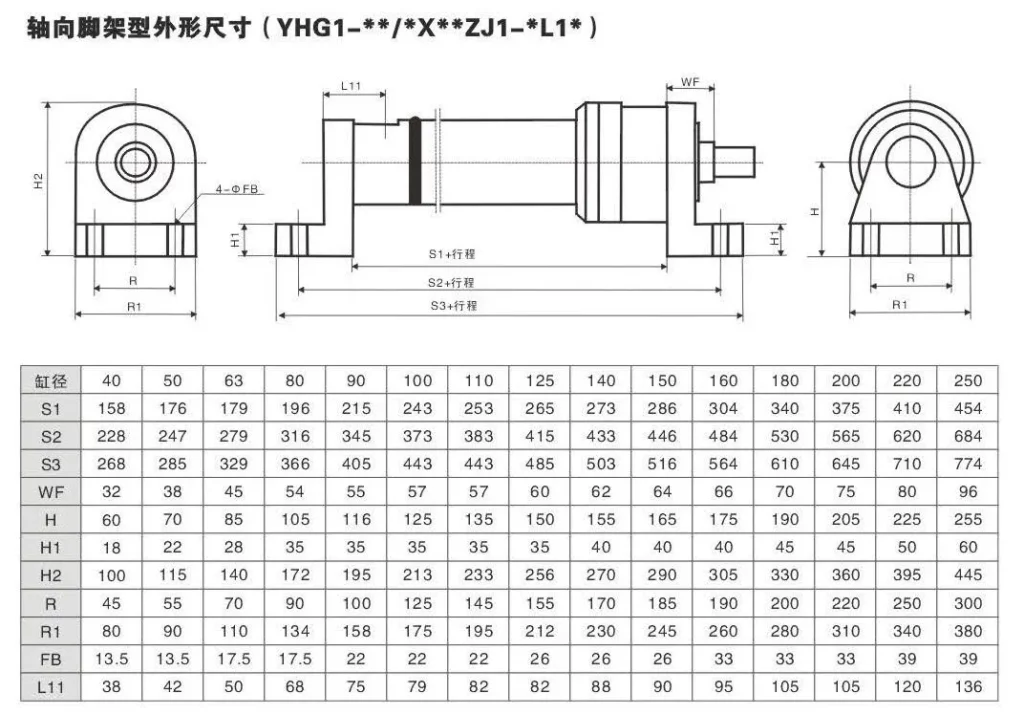

Axial Tripod Type Metallurgical Hydraulic Cylinder Parameter:

Axial Tripod Type Metallurgical Hydraulic Cylinder Usage Method:

  1. Mounting and Installation:
    • Determine the appropriate installation position of the hydraulic cylinder according to the specific metallurgical application and equipment requirements.
    • Ensure the mounting surface is clean, flat, and capable of withstanding the cylinder’s load.
  2. Connection to Hydraulic System:
    • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
    • Ensure proper alignment and secure connection to prevent leaks.
  3. System Integration and Calibration:
    • According to the manufacturer’s guidelines, integrate metallurgical hydraulic cylinders into metallurgical equipment or systems.
    • Calibrate the system to achieve desired performance and operating parameters.
  4. Operating the Cylinder:
    • Activate the hydraulic system to apply pressure and initiate the movement of the hydraulic cylinder.
    • The hydraulic control system controls the cylinder extension, retraction, and positioning.

Axial Tripod Type Metallurgical Hydraulic Cylinder Maintenance:

  1. Regular Inspection:
    • Perform a routine inspection of the hydraulic cylinder for signs of leakage, wear, or damage.
    • Check mounting brackets, fasteners, and connections to ensure they are safe and functioning correctly.
  2. Lubrication:
    • Follow the manufacturer’s recommendations for lubrication intervals and the type of lubricant used.
    • Apply lubricant to necessary parts such as piston rods, seals, and bearings to reduce friction and ensure smooth operation.
  3. Cleaning:
    • Keep the hydraulic cylinder and the surrounding environment clean to avoid dirt, debris, and pollutants affecting the hydraulic cylinder’s performance.
    • Use proper cleaning methods and materials to avoid damaging the cylinder or its components.

How To Take Apart A Hydraulic Cylinder?

Taking apart a hydraulic cylinder requires careful disassembly to avoid damage and ensure safe handling. Here are the general steps to follow:

  1. Safety Precautions:
    • Ensure the hydraulic system is depressurized and the cylinder is retracted.
    • Use appropriate personal protective equipment, such as gloves and safety glasses.
    • Prepare a clean and organized workspace with adequate lighting and ventilation.
  2. Identify Cylinder Components:
    • Familiarize yourself with the different parts of the hydraulic cylinder, including the cylinder body, piston, rod, seals, and end caps.
  3. Remove External Connections:
    • Disconnect any hydraulic hoses, fittings, or other external connections attached to the cylinder.
    • Use appropriate tools like wrenches or pliers to loosen and remove the connections carefully.
  4. Secure the Cylinder:
    • Place the cylinder securely in a vise or similar holding fixture, ensuring it is stable and won’t move during disassembly.
  5. Remove the Rod End Cap:
    • Locate the rod end cap, typically at the end of the cylinder opposite the piston.
    • Use the appropriate wrench or socket to loosen and remove the bolts securing the rod end cap.
    • Tap the end cap gently with a rubber mallet to break any seal or adhesive bond.
  6. Separate the Rod and Piston Assembly:
    • Once the rod end cap is removed, carefully slide the rod and piston assembly out of the cylinder body.
    • Support the weight of the assembly to prevent it from falling or causing damage.
  7. Disassemble the Rod and Piston Assembly:
    • Examine the rod and piston assembly for retaining rings, snap rings, or other controlling devices.
    • Use appropriate tools, such as pliers or snap ring pliers, to remove these retaining devices, allowing the assembly disassembly into its components.
    • Take note of the order and orientation of each component for reassembly.
  8. Inspect and Clean:
    • Inspect all the disassembled components for wear, damage, or signs of leakage.
    • Clean each component thoroughly using an appropriate solvent or cleaning agent to remove dirt, debris, and hydraulic fluid residue.
    • Dry the components completely before reassembly.
  9. Reassembly or Component Replacement:
    • Replace any damaged or worn components with new ones following the manufacturer’s specifications.
    • Reassemble the hydraulic cylinder in the reverse order of disassembly, ensuring proper alignment and orientation of components.
    • Tighten bolts or fasteners to the manufacturer’s recommended torque specifications.

Capability & Capacity Of Factory:

(1) Assembly

We have a first-class independent research and development assembly platform. The hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces. The special cylinder workshop is equipped with various specifications of a semi-automatic cleaning assembly system with a designed annual production capacity of 200,000 and equipped with famous CNC machining equipment, a machining center, a high-precision cylinder processing special equipment, a robot welding machine, an automatic cleaning machine, automatic cylinder assembly machine, and automatic painting production line. Existing critical equipment of more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high-quality needs of products.

(2) Machining

The machining shop is equipped with a customized inclined rail turning center, machining center, high-speed honing machine, welding robot, and other related equipment, which can handle the processing of cylinder tubes with a maximum inner diameter of 400mm and a maximum length of 6 meters.

(3) Welding

(4) Painting & coating

With small and medium-sized cylinder automatic water-based paint coating lines, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders powered by a power chain, with 60 cases per shift design capacity.

(5) Testing

We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.



We are one of the best metallurgical hydraulic cylinder manufacturers. We can offer comprehensive metallurgical hydraulic cylinder stock. We also provide corresponding agricultural gearboxes. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
