Forklift Distance Adjustment Hydraulic Cylinder
As one of the hydraulic cylinders manufacturers, suppliers, and exporters of mechanical products, We offer hydraulic cylinders and many other products.
Please get in touch with us for details.
Mail:sales@hydraulic-cylinders.net
Manufacturer supplier exporter of hydraulic cylinders.

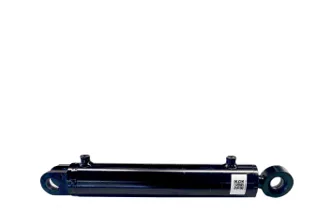

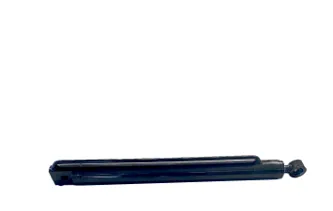

Forklift Distance Adjustment Hydraulic Cylinder
The forklift distance adjustment hydraulic cylinder, a versatile solution designed to enhance the reach and precision of forklift operations. This hydraulic cylinder allows for convenient and efficient adjustment of the forks’ distance, enabling operators to handle different load sizes and adapt to varying warehouse layouts with ease.
The hydraulic system of the forklift distance adjustment cylinder guarantees smooth and controlled movement during distance adjustment. Operators can achieve precise positioning without jarring or sudden movements, ensuring stable load handling and operator comfort.
Built to withstand the rigors of daily forklift operations, this hydraulic cylinder features a robust construction that resists wear, corrosion, and damage. It is designed to endure heavy loads, frequent adjustment cycles, and challenging working conditions, providing reliable performance in even the most demanding environments.
Forklift Distance Adjustment Hydraulic Cylinder Parameter:

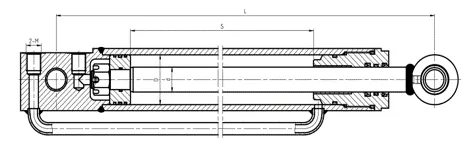

Cylinder Name | drawing number | bore diameter (D) | rod diameter (d) | stroke (S) | Installation distance (L) | working pressure | Interface dimensions (M) | weight |
Distance adjustment cylinder | 3CS17G-30-00T4 | Φ50 | Φ25 | 295 | 503 | 16MPa | 2-M16*1.5 | 7kg |

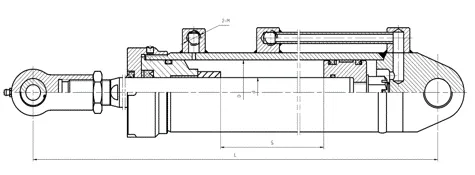

Cylinder Name | drawing number | bore diameter (D) | rod diameter (d) | stroke (S) | Installation distance (L) | working pressure | Interface dimensions (M) | weight |
Distance adjustment cylinder | 7B3-303000-00TA | Φ50 | Φ28 | 750 | 1040 | 18MPa | M14*1.5;M16*1.5 | 14kg |

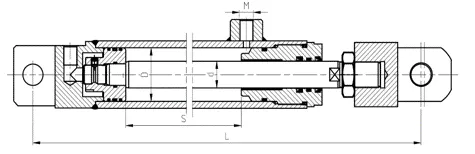

Cylinder Name | drawing number | bore diameter (D) | rod diameter (d) | stroke (S) | Installation distance (L) | working pressure | Interface dimensions (M) | weight |
Distance adjustment cylinder | 5CS17-40-00Z | Φ50 | Φ25 | 619 | 889 | 15MPa | M14*1.5 | 13kg |

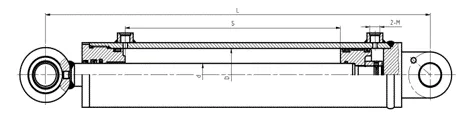

Cylinder Name | drawing number | bore diameter (D) | rod diameter (d) | stroke (S) | Installation distance (L) | working pressure | Interface dimensions (M) | weight |
Distance adjustment cylinder | 8M3-304000A-625 | Φ63 | Φ32 | 855 | 1174 | 20MPa | 2-M16*1.5 | 22kg |

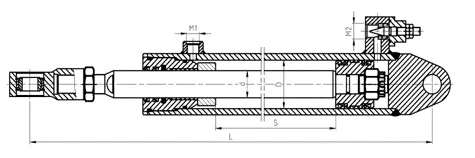

Cylinder Name | drawing number | bore diameter (D) | rod diameter (d) | stroke (S) | Installation distance (L) | working pressure | Interface dimensions (M) | weight |
Distance adjustment cylinder | 7B3-304000-00 | Φ70 | Φ30 | 300 | 536 | 18MPa | 2-M14*1.5 | 13.5kg |
Unleash the Power of Durability with the Hydraulic Cylinder:
When it comes to durability and longevity, the Hydraulic Cylinder stands out from the crowd. Crafted from top-quality materials and built to withstand the harshest conditions, this cylinder guarantees reliable performance even in the most demanding applications. Explore the exceptional features that make the Hydraulic Cylinder the ultimate choice for your hydraulic needs.
- Robust Construction: With its robust design and heavy-duty materials, the Hydraulic Cylinder is engineered for strength and durability. It effortlessly handles high pressures and heavy loads, ensuring long-lasting performance and reliability even in rugged environments.
- Resistance to Wear and Corrosion: Don’t let wear and corrosion slow you down. The Hydraulic Cylinder is resistant to the elements, protecting it from the damaging effects of moisture, contaminants, and harsh operating conditions. Count on this cylinder to endure and deliver exceptional results over time.
Capability & Capacity Of Factory:
(1) Assembly
We has a first-class independent research and development assembly platform. Forklift cylinder production workshop has 4 semi-automatic lifting cylinder assembly lines and 1 automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces; Special cylinder workshop is equipped with various specifications semi-automatic cleaning assembly system, designed annual production capacity of 200,000. Equipped with famous CNC machining equipment, machining center, high-precision cylinder processing special equipment, robot welding machine, automatic cleaning machine, automatic cylinder assembly machine, automatic painting production line. Existing key equipment more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high quality requirements of products.
(2)Machining
The machining shop is equipped with customized inclined rail turning center, machining center, high-speed honing machine, welding robot and other related equipment, which can handle the processing of cylinder tubes with a maximum inner diameter of 400mm and a maximum length of 6 meters.
(3) Welding
(4) Painting & coating
With small and medium-sized cylinder automatic water-based paint coating line, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders, powered by a power chain, with a design capacity of 60 cases per shift.
(5) Testing
We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.
We are one of the best hydraulic cylinder manufacturers. We can offer wide hydraulic cylinder stock. We also provide corresponding agricultural gearboxes. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
