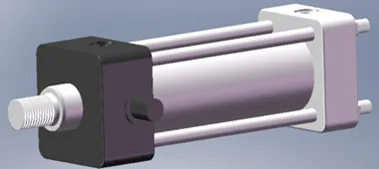

Low-Pressure Hydraulic Cylinder Front Pin

In the case of low-pressure hydraulic cylinders, the term “front pin” usually refers to the pin or shaft located at the front end of the cylinder. This pin is used as a connection point or pivot for attaching or mounting the cylinder to other components or equipment. Here is some information about the front pin of the low-pressure hydraulic cylinder:

Design and construction of low-pressure hydraulic cylinder

Front pin: The front pin is usually a sturdy metal pin or shaft that extends to the front end of the hydraulic cylinder. Its purpose is to provide a secure connection and pivot point for the cylinder.
Mounting holes: The front pin is inserted through mounting holes or brackets on the cylinder housing or front flange. These mounting holes are aligned with the corresponding holes or brackets on the equipment or structure to which the cylinder is attached.
Fixing mechanism: The front pin can be fixed with fixing clips, bolts or other fasteners to prevent accidental disconnection or movement.

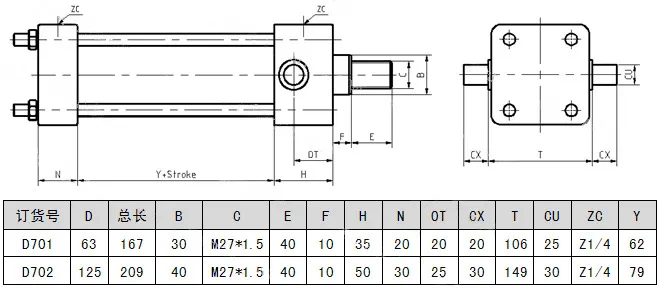

Low-Pressure Hydraulic Cylinder Front Pin Parameter:

Applications Of Low-Pressure Hydraulic Cylinder Front Pin:

  • Low-pressure hydraulic cylinders with front pins are used in a variety of industries and applications, especially in systems operating at lower hydraulic pressures.
  • They are commonly used in industrial machinery, mobile devices, and other systems where space limitations or specific installation requirements exist.
  • These cylinders are suitable for material handling, lifting mechanisms, conveying systems, and other equipment that requires linear force or movement.

Mounting and Connection Of Low-Pressure Hydraulic Cylinder Front Pin:

  • Mounting cylinders: Front pins allow direct connection of hydraulic cylinders to other equipment or structural elements. The pin is inserted through a mounting hole or bracket on the cylinder and a mating hole or bracket on the equipment or structure.
  • Fastening the front pin: Once the front pin is inserted through the mounting point, it is usually held in place using a retaining clamp, bolt, or other fastener. These fasteners ensure a stable and rigid connection between the cylinder and the mating surface.

How Does A Hydraulic Cylinder Work?

A hydraulic cylinder is a mechanical actuator that converts hydraulic energy (pressure and fluid flow) into linear force and motion. It consists of a cylinder, a piston, a piston rod and various seals. The following is a brief introduction to the working principle of the hydraulic cylinder:

  1. Hydraulic Fluid Supply: The hydraulic cylinder is connected to a hydraulic system that supplies pressurized hydraulic fluid, typically oil, to the cylinder.
  2. Cylinder Barrel and Piston: The cylinder barrel is a cylindrical tube that contains hydraulic fluid. The piston divides the cylinder barrel into two chambers: the rod side and the cap side.
  3. Piston and Piston Rod: The piston is a cylindrical component that fits tightly within the cylinder barrel. It is attached to a piston rod, which extends through a seal in the cylinder head.
  4. Seals: The hydraulic cylinder employs various seals to prevent fluid leakage between the piston and the cylinder barrel. These seals include piston seals, rod seals, and wiper seals.
  5. Hydraulic Pressure Application: Hydraulic fluid is supplied to the cylinder, creating pressure within the cylinder chambers—the pressurized fluid acts on the piston, generating a force.
  6. Force and Motion Generation: When hydraulic fluid is supplied to the cap side of the cylinder, the force generated by the fluid pressure pushes the piston and piston rod outward, creating extension or outward motion. Conversely, when fluid is supplied to the rod side, the force pushes the piston and piston rod inward, creating retraction or inward motion.
  7. Load Application: The piston rod is connected to the load or equipment that needs to be moved. As the piston and piston rod extend or retract due to hydraulic pressure, the linear force is transmitted to the load, allowing it to move.
  8. Control and Direction: The direction of motion and control of the hydraulic cylinder are achieved by controlling the flow of hydraulic fluid into the appropriate cylinder chamber. This is typically done using directional control valves, which selectively direct the fluid flow to the desired side of the cylinder.
  9. Return Stroke: When the fluid flow to one side of the cylinder is stopped or redirected, the hydraulic fluid on the opposite side is allowed to return to the hydraulic reservoir, and the cylinder returns to its original position due to external forces or springs.
