Middle Pin Type Metallurgical Hydraulic Cylinder

Medium pin type metallurgical hydraulic cylinder is a cutting-edge hydraulic component designed to meet the strict requirements of metallurgical applications. With superior performance, rugged construction, and innovative design, this hydraulic cylinder provides precise control, durability and efficiency in demanding industrial environments. Whether used in steel mills, foundries, or other metallurgical processes, intermediate pin type cylinders provide outstanding results.

Y-HG1 series of metallurgical equipment hydraulic cylinder for the double acting piston cylinder, cylinder diameter is generally in the range of 40~320mm, the working pressure <=16MPA, the hydraulic oil mechanical system can be used to lose emulsion and other working media, the installation of the flange, earrings, pins, trippers (base) and different types.

High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

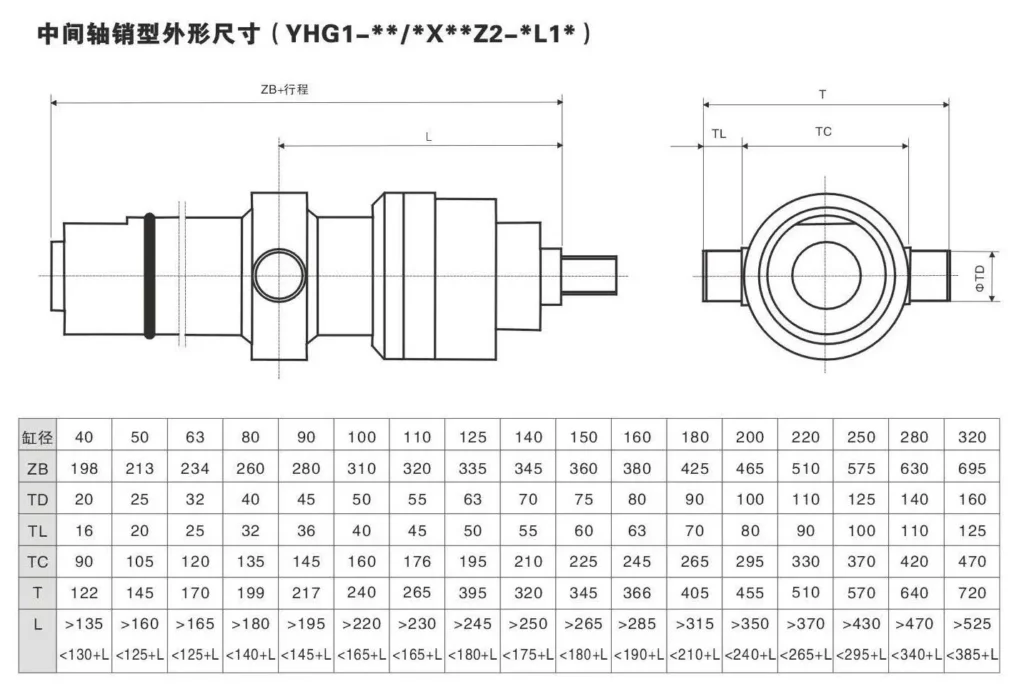

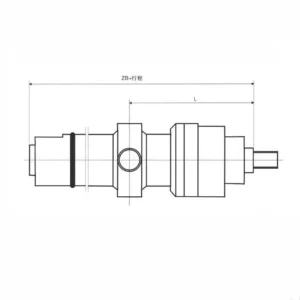

Middle Pin Type Metallurgical Hydraulic Cylinder Parameter:

Middle Pin Type Metallurgical Hydraulic Cylinder Usage Method:

  1. Mounting and Installation:
    • According to the specific requirements of metallurgical equipment, determine the appropriate installation position of the hydraulic cylinder.
    • Ensure that the mounting surface is clean, flat, and able to withstand the weight and load of the cylinder.
  2. Connection to Hydraulic System:
    • Connect the hydraulic cylinder to the hydraulic system using a compatible hydraulic hose or pipe.
    • Ensure proper alignment and secure connections to prevent leaks and ensure optimal performance.
  3. System Integration and Calibration:
    • Integrate hydraulic cylinders into metallurgical equipment or systems by the manufacturer’s guidelines.
    • Calibrate the system to achieve desired operating parameters and ensure smooth functioning.
  4. Operating the Cylinder:
    • Start the hydraulic system. Apply pressure to start the movement of the hydraulic cylinder.
    • The hydraulic control system controls cylinder extension, contraction, and positioning for efficient metallurgical operations.

Middle Pin Type Metallurgical Hydraulic Cylinder Characteristics:

  • Middle Pin Design: The unique center pin design provides enhanced stability, precise alignment, and improved load distribution during operation, ensuring optimal performance in metallurgical processes.
  • Metallurgical Application Focus: The cylinders are precisely designed to meet the stringent requirements of metallurgical applications, providing reliability and durability under extreme conditions.
  • Superior Performance:  Cylinders provide excellent performance, enabling accurate positioning, smooth operation, and increased productivity in metallurgical processes.
  • Robust Construction:  Manufactured from high-quality materials, the cylinders can withstand heavy loads and harsh operating conditions, ensuring long-term durability and reliable performance.
  • Safety Features:  The design combines overload protection and an emergency shutdown mechanism, prioritizing operator safety in the metallurgical process.

How To Measure Hydraulic Cylinder?

Measuring a hydraulic cylinder is a straightforward process that requires a few essential tools. Here’s a step-by-step guide on how to measure a hydraulic cylinder accurately:

  1. Gather the Necessary Tools:
    • Tape measure or caliper: Use a reliable measuring tool to obtain precise measurements.
    • Safety equipment: Wear appropriate personal protective equipment, such as gloves and safety glasses, to protect against potential hazards.
  2. Determine the Measuring Points:
    • Identify the key measuring points on the hydraulic cylinder that will provide the necessary information for accurate measurement.
    • The main measuring points typically include the cylinder’s stroke length, bore diameter, and rod diameter.
  3. Measure the Stroke Length:
    • Extend the hydraulic cylinder fully to its maximum length.
    • Position the tape measure or caliper at one end of the cylinder, aligning it with the reference point.
    • Measure from the reference point to the opposite end of the cylinder.
    • Record the size as the stroke length.
  4. Measure the Bore Diameter:
    • Locate the cylinder’s bore, which is the inner diameter of the cylinder tube.
    • Position the tape measure or caliper across the bore, ensuring it is perpendicular to the cylinder’s axis.
    • Measure one side of the bore from the inner wall to the opposite inner wall.
    • Record the measurement as the bore diameter.
  5. Measure the Rod Diameter:
    • Identify the rod, which is the piston rod extending from the hydraulic cylinder.
    • Position the tape measure or caliper across the rod’s diameter, perpendicular to its axis.
    • Measure one side of the rod, from the outer surface to the opposite outer surface.
    • Record the measurement as the rod diameter.
  6. Additional Measurements:
    • Depending on the specific requirements or applications, you may need to measure additional parameters, such as the overall length of the cylinder, the distance between mounting points, or the thread size of the rod.
  7. Document and Verify Measurements:
    • Double-check all recorded measurements to ensure accuracy.
    • Document the measurements clearly and organize them for future reference or ordering purposes.

Capability & Capacity Of Factory:

(1) Assembly

We have a first-class independent research and development assembly platform. The hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces. The special cylinder workshop is equipped with various specifications of a semi-automatic cleaning assembly system with a designed annual production capacity of 200,000 and equipped with famous CNC machining equipment, a machining center, a high-precision cylinder processing special equipment, a robot welding machine, an automatic cleaning machine, automatic cylinder assembly machine, and automatic painting production line. Existing critical equipment of more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high-quality needs of products.

(2) Machining

The machining shop is equipped with a customized inclined rail turning center, machining center, high-speed honing machine, welding robot, and other related equipment, which can handle the processing of cylinder tubes with a maximum inner diameter of 400mm and a maximum length of 6 meters.

(3) Welding

(4) Painting & coating

With small and medium-sized cylinder automatic water-based paint coating lines, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders powered by a power chain, with 60 cases per shift design capacity.

(5) Testing

We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.



We are one of the best metallurgical hydraulic cylinder manufacturers. We can offer comprehensive metallurgical hydraulic cylinder stock. We also provide corresponding agricultural gearboxes. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
