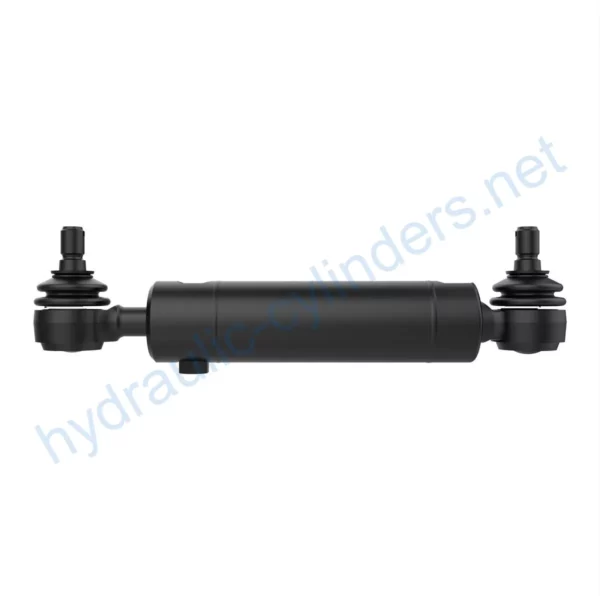

Replacement Of LVA802145 Power Steering Lines Hydraulic Cylinder

Introduction

The Replacement Of LVA802145 Power Steering Lines Hydraulic Cylinder is an essential component in various machinery, including the 2025R and 2320 models. This hydraulic cylinder plays a crucial role in the proper functioning of equipment by providing hydraulic power for steering lines. Its main purpose is to control the movement and direction of steering lines, ensuring smooth and efficient operation.

Specifications and Models

Weight: 5.44 lb

Height: 3 in

Width: 3.5 in

Length: 14 in

Compatible with: 2025R and 2320 models

Key Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operating capability, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, increasing overall safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, facilitating the availability of replacement parts in the market.

Applications

1. Excavators: Hydraulic cylinder replacement is necessary in the boom or bucket of excavators due to long-term usage or overloading, ensuring proper operation.
2. Cranes: The lifting arm hydraulic cylinder in cranes can experience wear during frequent lifting and lowering processes, requiring regular replacement for safety purposes.
3. Tractors: The front-end loader hydraulic cylinder in tractors may develop leaks or reduced performance due to continuous lifting and tilting operations, necessitating replacement.
4. Harvesters: The hydraulic system of harvesters operates under high pressure, and fatigue-related cylinder damage may occur, requiring timely replacement to maintain work efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failure can significantly impact production efficiency, necessitating immediate replacement.

Maintenance Tasks

1. Regular Inspections: Periodic inspections help identify any issues or potential problems with the hydraulic cylinder.
2. Proper Lubrication: Adequate lubrication ensures smooth operation and extends the lifespan of the hydraulic cylinder.
3. Seal Replacement and Calibration Checks: Regularly replacing seals and calibrating the cylinder helps maintain optimal performance and prevent leaks.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is crucial to follow safety measures to prevent accidents and ensure the well-being of operators and the environment. Proper training and adherence to safety guidelines are essential.

Troubleshooting and Common Issues

1. Leakage: Check for damaged seals or loose connections. Replace seals and tighten connections as necessary.

2. Slow Cylinder Movement: Inspect for insufficient lubrication or worn components. Apply appropriate lubrication or replace worn parts.

3. Cylinder Failure: If the cylinder fails to operate, check for hydraulic fluid levels, valve blockages, or damaged components. Address the issue accordingly.

Tips for Troubleshooting and Problem Resolution

To effectively diagnose and solve problems, consider the following tips:
– Refer to the manufacturer’s guidelines for troubleshooting procedures.
– Seek professional assistance if unsure about the problem or solution.
– Implement preventive measures to minimize potential issues.
– Regularly inspect and maintain the hydraulic cylinder to ensure optimal performance.

Design Considerations and Selection Criteria

When selecting a hydraulic cylinder, consider the following design aspects:
– Load-bearing capacity
– Seal effectiveness
– Durability
– Safety features
– Maintenance requirements

Sealing and Lubrication

Hydraulic cylinders use various seals, such as piston seals and rod seals, made from wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo precise surface treatments to enhance wear resistance. Regular lubrication with hydraulic oil is essential for optimal performance and longevity.

Regular Inspections and Preventive Maintenance

Regular inspections and preventive maintenance are vital for prolonging the lifespan of hydraulic cylinders. Proper installation, lubrication, and adjustment are essential during the installation process. Using suitable mounting brackets to secure the cylinder is recommended. Follow recommended inspection, repair, and replacement procedures. Replacement parts and rebuilding services are available to help extend the lifespan of the hydraulic cylinder.

Installation Guidelines

Proper installation of the hydraulic cylinder is crucial for optimal performance and safety. Follow these guidelines:
– Align the cylinder correctly during installation.
– Use appropriate installation brackets to secure the cylinder.
– Follow recommended procedures for inspection, repair, and replacement.
– Provide guidance on proper alignment during installation.
– Offer tips for enhancing the lifespan of the hydraulic cylinder.

About Our Company

We are a leading manufacturer and wholesale distributor of replacement hydraulic cylinders. Our extensive range of products caters to both domestic and international markets. We pride ourselves on our professionalism, international certifications, custom services, advanced production equipment, and exceptional post-sales support.
