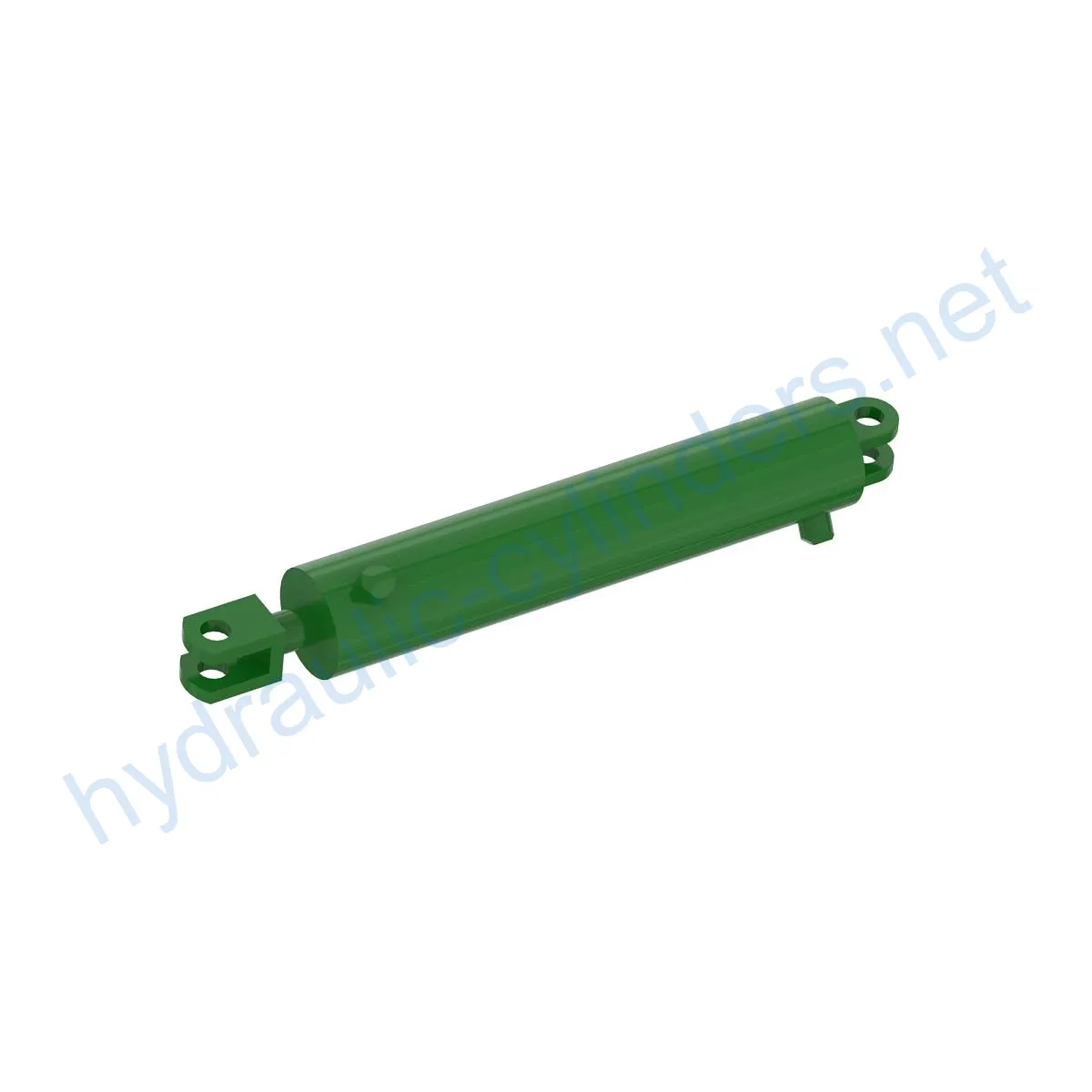

Replacement Of AN303346 Tread Adjust Hydraulic Cylinder

This hydraulic cylinder replacement, the AN303346 Tread Adjust Hydraulic Cylinder, is designed to provide optimal performance and functionality for various equipment models, including 4720, 4730, and 4830. With a weight of 34.32 lb and dimensions measuring 3.75 in (height), 4.75 in (width), and 27.25 in (length), this hydraulic cylinder offers reliability and durability in its construction.

Introduction to the AN303346 Tread Adjust Hydraulic Cylinder

The AN303346 Tread Adjust Hydraulic Cylinder is an essential component in hydraulic systems. It plays a crucial role in adjusting the tread of equipment, ensuring smooth and precise movements. This replacement hydraulic cylinder is designed to restore the proper functioning of machinery and enhance performance in various applications.

Specifications and Compatibility

The AN303346 Tread Adjust Hydraulic Cylinder has the following specifications:

• Weight: 34.32 lb
• Height: 3.75 in
• Width: 4.75 in
• Length: 27.25 in

It is compatible with the following equipment models:

• 4720
• 4730
• 4830

Key Features of the AN303346 Tread Adjust Hydraulic Cylinder

1. Improved Equipment Performance:

Replacing damaged or worn hydraulic cylinders can restore the normal operational capabilities of equipment and ensure optimal performance in various applications.

2. Enhanced Safety:

Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.

3. Overload Protection:

New cylinder designs often incorporate better overload protection mechanisms, improving overall safety during operation.

4. Quick Installation:

Modern hydraulic cylinders are designed with ease of installation and replacement in mind, minimizing downtime for equipment.

5. Standardized Components:

Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications of the AN303346 Tread Adjust Hydraulic Cylinder

The AN303346 Tread Adjust Hydraulic Cylinder finds its application in various scenarios. Here are a few examples:

1. Excavators:

In excavators, the hydraulic cylinder on the arm or bucket may become damaged or worn due to prolonged use or overload. Replacement is necessary to restore normal operations.

2. Cranes:

The hydraulic cylinder on a crane’s boom is subjected to frequent lifting and lowering, leading to wear and tear. Regular replacement is vital to ensure safety.

3. Tractors:

The hydraulic cylinder on the front-end loader of a tractor may experience leaks or decreased performance during continuous lifting and tilting operations. Replacement is required.

These are just a few examples of the AN303346 Tread Adjust Hydraulic Cylinder’s applications, highlighting the versatility and importance of this essential component in various industries.

Maintenance and Care

To ensure the longevity of the AN303346 Tread Adjust Hydraulic Cylinder, regular maintenance tasks should be conducted. Here are three common maintenance tasks:

1. Regular Inspections:

Periodic inspections help identify any issues or abnormalities in the hydraulic cylinder. Prompt action can prevent major problems and ensure optimal performance.

2. Proper Lubrication:

Applying appropriate lubrication to the hydraulic cylinder keeps it running smoothly and minimizes wear and tear. Regular lubrication is essential for optimal performance.

3. Seal Replacement and Calibration Checks:

Checking and replacing seals as needed helps maintain the hydraulic cylinder’s integrity. Regular calibration checks ensure accurate performance.

By following proper installation, lubrication, and adjustment procedures, the AN303346 Tread Adjust Hydraulic Cylinder can provide extended service life and reliability.

Safety Considerations and Environmental Factors

When working with hydraulic cylinders, safety measures are crucial. Proper usage and adherence to safety protocols are essential for preventing accidents and ensuring a secure working environment.

It is important to consider environmental factors when selecting and using hydraulic cylinders. Factors such as temperature, pressure, and operating conditions can impact the cylinder’s performance and lifespan. Taking these factors into account ensures optimal operation and longevity.

Fault Diagnosis and Common Issues

Faults and issues may arise with hydraulic cylinders. Here are some common problems and their possible solutions:

1. Leakage:

Leakage can occur due to worn seals or damaged components. Inspect and replace seals or parts as necessary to resolve the issue.

2. Poor Performance:

If the hydraulic cylinder is not providing the expected performance, check for any blockages, leaks, or misalignment. Rectify the issue accordingly to restore optimal performance.

3. Overheating:

Overheating can indicate problems with the hydraulic system. Check fluid levels, cooling mechanisms, and ensure proper lubrication to prevent overheating.

Troubleshooting Tips and Preventive Measures

Here are some troubleshooting tips and preventive measures to help diagnose and resolve issues with hydraulic cylinders:

1. Regular Maintenance:

Perform regular checks, lubrication, and inspections to identify and address potential issues before they become major problems.

2. Proper Installation:

Ensure correct alignment and installation of the hydraulic cylinder. Provide guidance on aligning the cylinder correctly and recommend the use of appropriate installation brackets for secure fixation.

3. Inspection, Repair, and Replacement Procedures:

Provide recommended inspection, repair, and replacement procedures to guide users through the process. Offer replacement parts and rebuilding services to ensure the longevity of the hydraulic cylinder.

By following these tips and implementing preventive measures, potential issues can be minimized, ensuring the optimal operation and lifespan of the AN303346 Tread Adjust Hydraulic Cylinder.

Design Considerations and Selection Criteria

When selecting hydraulic cylinders, several design considerations should be taken into account:

1. Load-Bearing Capacity:

The hydraulic cylinder’s load-bearing capacity must match the equipment’s requirements to ensure safe and efficient operation.

2. Sealing and Durability:

The use of various sealing components, such as piston seals and rod seals, made from wear-resistant materials like polyurethane or nitrile rubber, enhances the cylinder’s durability.

3. Safety and Maintenance:

Design features that prioritize safety and ease of maintenance contribute to the overall effectiveness and longevity of the hydraulic cylinder.

Sealing and Lubrication of the Hydraulic Cylinder

The AN303346 Tread Adjust Hydraulic Cylinder utilizes a range of sealing components, including piston seals and rod seals. These seals are made of durable materials such as polyurethane and nitrile rubber. The cylinder’s body and threaded
