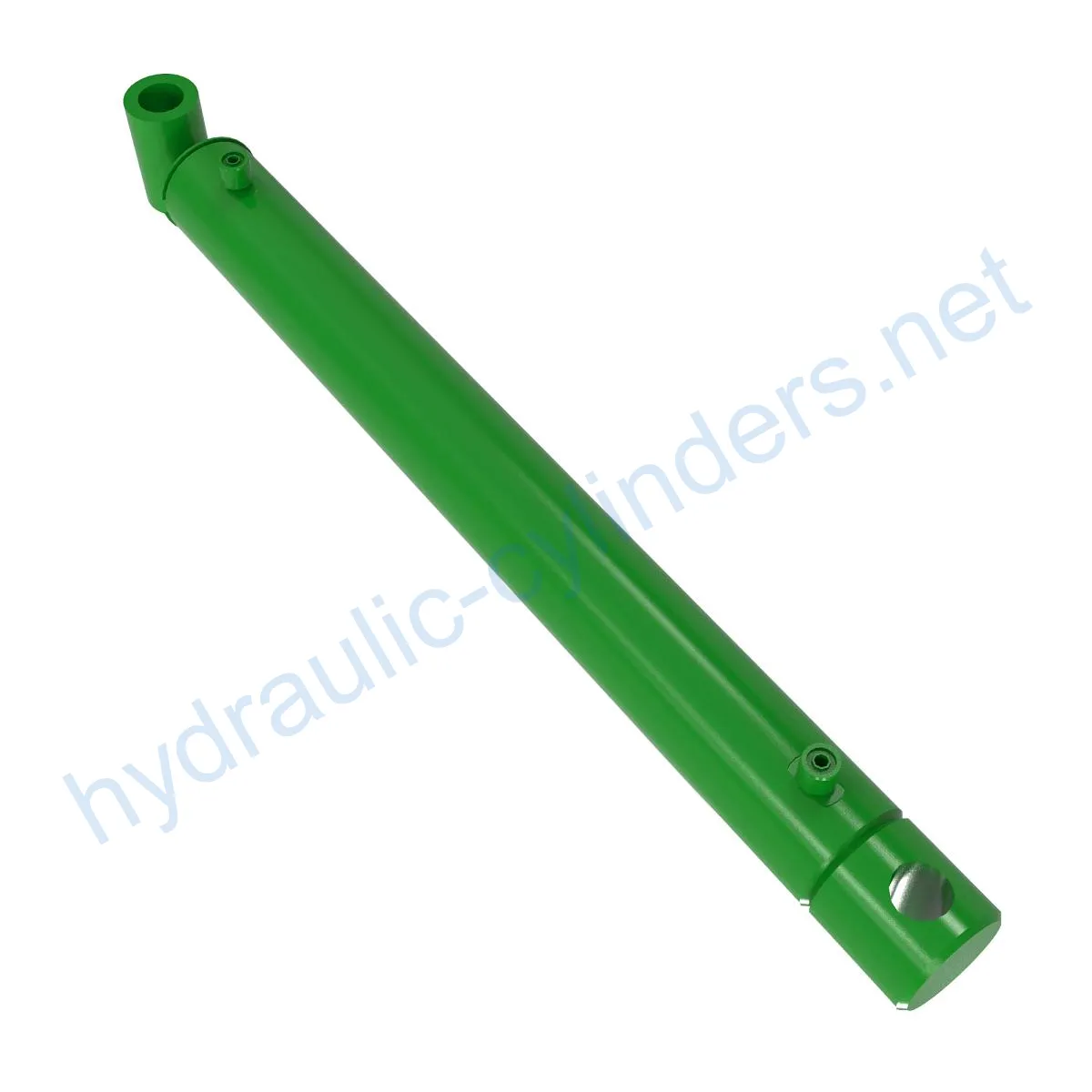

Replacement Of AH210821 Bucket Hydraulic Cylinder

Product Definition

The Replacement Of AH210821 Bucket Hydraulic Cylinder is a hydraulic component designed for replacing damaged or worn-out hydraulic cylinders in various applications. It plays a crucial role in restoring the normal operation of equipment and ensuring performance in different scenarios.

Specifications and Models

Weight: 18.9 lb

Height: 2.5 in

Length: 25 in

Models: 300, 300CX, 300X, 320R, H160, H165

Product Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operational capabilities of equipment, ensuring performance in various applications.
• Enhanced Safety: Regular replacement of hydraulic cylinders reduces the safety risks associated with cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

1. Excavators: Hydraulic cylinders in excavator arms or buckets may get damaged due to prolonged use or overload and require replacement for normal operation.
2. Cranes: Hydraulic cylinders in crane booms are prone to wear during frequent lifting and lowering processes, requiring regular replacement for safety.
3. Tractors: Hydraulic cylinders in front-end loaders of tractors can develop leaks or performance issues due to continuous lifting and tilting operations, necessitating replacement.
4. Harvesters: Hydraulic cylinders in harvesters endure high pressure during harvesting, and fatigue can lead to damage, requiring timely replacement to maintain efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automation equipment. Cylinder failures can disrupt production efficiency and should be replaced promptly.

Maintenance Tasks

1. Regular Inspections: Periodic inspections ensure the proper functioning of hydraulic cylinders and identify any potential issues.
2. Proper Lubrication: Adequate lubrication is essential for optimal performance and longevity of hydraulic cylinders.
3. Seal Replacement and Calibration Checks: Regular seal replacements and calibration checks help maintain the efficiency and reliability of hydraulic cylinders.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, it is important to prioritize safety measures to prevent accidents and ensure a secure working environment.

Troubleshooting and Common Issues

1. Cylinder leakage: If there is fluid leakage from the hydraulic cylinder, it may indicate a seal or piston malfunction. Check and replace the faulty components.

2. Insufficient or slow cylinder movement: This could be caused by low hydraulic fluid levels or a clogged hydraulic line. Check and refill the fluid or clear any blockages.

3. Excessive noise or vibrations: Unusual noise or vibrations may indicate worn-out bearings or misalignment. Inspect and replace the damaged parts.

Failure Diagnosis and Problem Solving

To diagnose and address hydraulic cylinder issues effectively, consider the following:

• Refer to the manufacturer’s manual for troubleshooting guidance.
• Inspect all connections and fittings for leaks or damage.
• Use pressure gauges to measure and monitor hydraulic pressure.
• Consult a professional if the problem persists or if you are unsure about the appropriate solution.

Design Considerations and Selection Criteria

When choosing hydraulic cylinders, it is essential to consider their load-bearing capacity, sealing efficiency, durability, safety features, and ease of maintenance.

Sealing and Lubrication

Hydraulic cylinders utilize various sealing components, such as piston seals and rod seals, made of wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary for optimum performance.

Regular Inspections and Preventive Maintenance

Ensure proper installation, lubrication, and adjustment during the installation process. Provide accurate guidance for aligning the cylinder and recommend using suitable mounting brackets to secure it. Follow recommended inspection, repair, and replacement procedures, and offer part replacement and rebuilding services to extend the lifespan of hydraulic cylinders.

Installation Guide

1. Prepare the installation area and ensure it is clean and free from debris.

2. Align the hydraulic cylinder with the mounting brackets or connections.

3. Carefully attach and tighten all necessary bolts and fittings according to the manufacturer’s specifications.

4. Verify that the cylinder is securely installed and free from any misalignments or obstructions.

Company Introduction

We are a leading manufacturer and wholesale distributor of replacement hydraulic cylinders, offering a comprehensive range of products for both domestic and international markets.

Our company stands out in the industry due to:

• Professionalism and expertise in hydraulic cylinder production
• International certifications ensuring quality and reliability
• Customization services to meet specific customer requirements
• State-of-the-art production equipment for superior manufacturing capabilities
• Dedicated after-sales service for customer satisfaction
