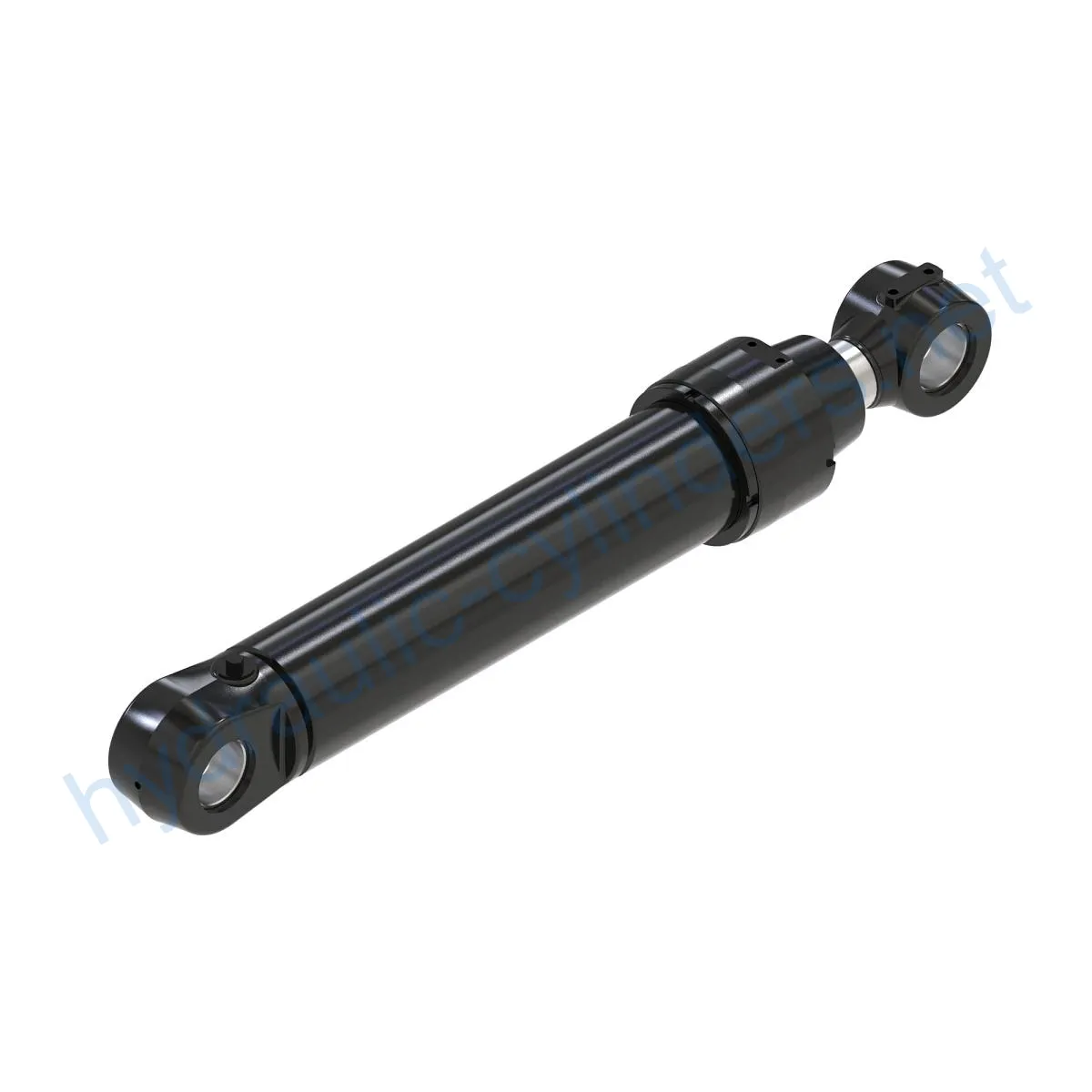

Replacement Of AT383236 Hydraulic Thumb Kit Hydraulic Cylinder

Introduction

The Replacement Of AT383236 Hydraulic Thumb Kit Hydraulic Cylinder is a crucial component used in various models such as 120D, 130P, 130G, 135P, 135D, 135G, 160P, 160D, 160G, 180G, 190DW, 190GW, 200G, 200D, 200G, 210P, 210CW, 210G, 220DW, 225D, 230GW, 245P, 245G, and 2154D. This hydraulic cylinder is designed to replace damaged or worn-out cylinders, ensuring optimal performance in a wide range of applications.

Specifications and Models

The Replacement Of AT383236 Hydraulic Thumb Kit Hydraulic Cylinder has the following specifications:

• Weight: 157 lb
• Height: 7.5 in
• Width: 9 in
• Length: 63 in

It is compatible with the following machine models:

• 120D
• 130P
• 130G
• 135P
• 135D
• 135G
• 160P
• 160D
• 160G
• 180G
• 190DW
• 190GW
• 200G
• 200D
• 200G
• 210P
• 210CW
• 210G
• 220DW
• 225D
• 230GW
• 245P
• 245G
• 2154D

Features

• Improved Equipment Performance: Replacing damaged or worn-out hydraulic cylinders can restore the equipment’s normal operating capabilities, ensuring performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, improving safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

The Replacement Of AT383236 Hydraulic Thumb Kit Hydraulic Cylinder finds application in various scenarios:

Excavators

In excavators, the hydraulic cylinder on the boom or bucket may become damaged due to prolonged use or overload, requiring replacement to restore normal operation.

Cranes

The lifting arm hydraulic cylinders in cranes are prone to wear during frequent lifting and lowering, requiring regular replacement to ensure safety.

Tractors

The front-end loader hydraulic cylinders in tractors may experience leaks or performance degradation during continuous lifting and tilting operations, necessitating replacement.

Harvesters

In the harvesting process, the hydraulic system experiences high pressures, and fatigue can cause cylinder damage. Timely replacement is necessary to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated equipment in production lines. Cylinder failures can significantly impact productivity and should be promptly replaced.

Die Casting Machines

In high-pressure and high-temperature environments, hydraulic cylinders in die casting machines may experience performance degradation. Regular replacement ensures product quality.

Mining Equipment

Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to the harsh working environment, regular inspections and replacement are required to avoid equipment failures.

Bulldozers

The wear of hydraulic cylinders on bulldozer blades can lead to a decrease in pushing capacity and should be replaced in a timely manner to maintain operational efficiency.

Maintenance Tasks

Common maintenance tasks for the Replacement Of AT383236 Hydraulic Thumb Kit Hydraulic Cylinder include:

• Regular inspections
• Proper lubrication
• Seal replacement
• Calibration checks

It is essential to emphasize the importance of correct installation, lubrication, and adjustment. Providing proper guidance for aligning the cylinder during installation and recommending the use of appropriate installation brackets for secure fixation are crucial. Recommended inspection, repair, and replacement procedures, as well as parts replacement and rebuilding services, can extend the lifespan of the cylinder.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, safety measures are of utmost importance to prevent accidents. Proper handling and adherence to safety protocols can ensure a secure working environment. Additionally, considering environmental factors when using hydraulic cylinders can contribute to sustainability efforts and minimize negative impacts on the environment.

Troubleshooting and Common Issues

When encountering problems or faults with the Replacement Of AT383236 Hydraulic Thumb Kit Hydraulic Cylinder, the following troubleshooting steps and solutions can be helpful:

• Issue 1: Cylinder Leakage

Solution: Inspect the seals and replace if necessary. Ensure proper tightening and alignment of all components.

• Issue 2: Cylinder Not Extending or Retracting

Solution: Check for fluid blockages or insufficient hydraulic pressure. Verify proper valve operation and actuator connections.

• Issue 3: Abnormal Noises

Solution: Inspect for loose or worn-out components. Lubricate moving parts and ensure correct alignment.

Preventive Measures

To minimize potential issues, the following preventive measures can be implemented:

• Regular maintenance and inspections
• Correct and timely repairs
• Appropriate lubrication and fluid levels
• Ensuring proper alignment and connections

Design Considerations and Selection Criteria
