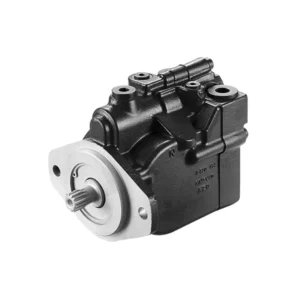

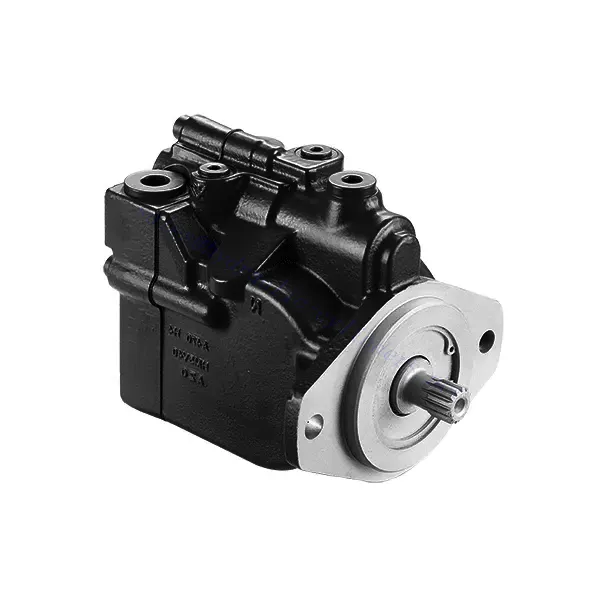

HM5V Series Axial Piston Variable Displacement Hydraulic Motor

The HM5V series axial piston variable displacement hydraulic motor is a game-changer in hydraulic systems. Engineered with precision and built for exceptional performance, this motor combines power, efficiency, and versatility to meet the demands of various applications.

The HM5V series axial piston variable displacement hydraulic motor is a powerful and efficient solution for various hydraulic systems. Its variable displacement capability, compact design, and precise control delivers unmatched performance and adaptability. Following the recommended usage methods and adhering to regular maintenance practices, the HM5V series motor will continue providing exceptional power and efficiency. Experience the true potential of your hydraulic system with the HM5V series axial piston variable displacement hydraulic motor.

HM5V Series Axial Piston Variable Displacement Hydraulic Motor Key Characteristics:

1. Variable Displacement Capability:

• The HM5V series motor boasts advanced variable displacement technology, allowing users to adjust the motor’s displacement according to specific requirements. This feature delivers unmatched flexibility and control over hydraulic systems.

2. High Power-to-Weight Ratio:

• Despite its compact size, the HM5V series motor offers an exceptional power-to-weight ratio. It delivers impressive power output while minimizing the weight and space occupied within the system.

3. Efficient Performance:

• With its axial piston design, the HM5V series motor ensures efficient power transmission, minimizing energy losses. This results in improved overall system efficiency, reduced fuel consumption, and lower operating costs.

4. Precise Speed Control:

• The HM5V series motor provides precise speed control, enabling operators to tailor the motor’s output speed to match specific application requirements. This level of control ensures optimal performance, improved productivity, and enhanced safety.

HM5V Series Axial Piston Variable Displacement Hydraulic Motor Parameter:

HM5V Series Axial Piston Variable Displacement Hydraulic Motor Advantages:

• Flange design, easy to disassemble, high strength, good sealing performance
• Compact installation size, easy for wheel installation
• Two-position variable motor, integrated servo variable piston
• The oil ports are arranged on one side, which is convenient for installation and oil circuit arrangement
• High volumetric efficiency
• Based on mature technology, high reliability

HM5V Series Axial Piston Variable Displacement Hydraulic Motor Application:

Usage Method Of HM5V Series Axial Piston Variable Displacement Hydraulic Motor:

1. Installation:

• Identify a suitable position within the hydraulic system to mount the HM5V series axial piston variable displacement hydraulic motor.
• Securely mount the motor using appropriate brackets or accessories, ensuring proper alignment.
• Connect the motor to the hydraulic system using compatible fittings and hoses, ensuring tight and leak-free connections.

2. Displacement Adjustment:

• Familiarize yourself with the displacement adjustment mechanism provided with the HM5V Series Motor.
• Depending on the model, it may offer manual adjustment or electronic control options.
• Follow the manufacturer’s guidelines to adjust the motor’s displacement to meet the specific requirements of your application.

3. System Integration:

• Integrate the HM5V Series Motor into the hydraulic system by connecting it to other components such as pumps, valves, and actuators.
• Ensure the motor’s displacement and performance align with the system requirements.

4. Load Considerations:

• Consider the load requirements of your application when utilizing the HM5V Series Motor.
• Ensure the motor’s power and torque ratings suit the intended task.
• Avoid overloading the motor, which may lead to excessive wear and potential damage.

How To Rebuild Hydraulic Cylinder Diagram?

Rebuilding a hydraulic cylinder can be a complex process that requires technical expertise. While providing a detailed diagram in this text-based format is not possible, I can offer you a step-by-step guide on how to rebuild a hydraulic cylinder. Please note that it is crucial to consult the manufacturer’s documentation and specifications for your specific hydraulic cylinder model before attempting any rebuild. Here is a general overview of the process:

1. Preparation:
   • Ensure you have the necessary tools, safety equipment, and a clean workspace.
   • Drain the hydraulic fluid from the cylinder and dispose of it properly.
   • Remove the cylinder from the equipment or machinery.
2. Disassembly:
   • Use a suitable wrench or socket to remove the cylinder’s end caps.
   • Carefully remove the piston, piston rod, seals, and any other internal components.
   • Take note of the order and orientation of the components as you disassemble the cylinder.
   • Inspect all parts for wear, damage, or deformation. Replace any components that are worn or damaged.
3. Cleaning:
   • Thoroughly clean all disassembled components using an appropriate cleaning agent.
   • Remove any dirt, debris, or old seal remnants from the cylinder bore, piston, and piston rod.
   • Ensure all parts are completely dry before proceeding.
4. Reassembly:
   • Lubricate the new seals and components with hydraulic fluid or a recommended lubricant.
   • Carefully install the new seals onto the piston, ensuring they are properly seated.
   • Slide the piston and piston rod back into the cylinder bore, aligning them correctly.
   • Reattach the end caps, ensuring they are tightened to the manufacturer’s specifications.
   • Double-check the position and orientation of all components to ensure proper assembly.
5. Testing and Installation:
   • Reinstall the hydraulic cylinder onto the equipment or machinery.
   • Connect the necessary hydraulic lines and fittings.
   • Refill the hydraulic system with the recommended fluid.
   • Perform a thorough test by operating the equipment or machinery, checking for any leaks, abnormal noises, or other issues.
   • Make any necessary adjustments or repairs before putting the equipment back into full operation.
