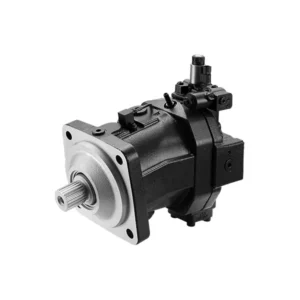

HM6V Series Axial Piston Variable Displacement Hydraulic Motor

The HM6V series axial piston variable displacement hydraulic motor is a versatile, high-performance product designed to deliver exceptional power and flexibility in hydraulic systems. With its advanced features, robust construction, and precise control, this hydraulic motor sets new benchmarks in the industry.

The HM6V series axial piston variable displacement hydraulic motor is a versatile, high-performance solution for hydraulic systems. Its variable displacement capability, high power density, and precise control offer unparalleled versatility and performance. Following the recommended usage methods and adhering to regular maintenance practices, the HM6V series motor will continue delivering outstanding power and efficiency. Harness the versatility and performance of the hm6v series axial piston variable displacement hydraulic motor to unlock the full potential of your hydraulic system.

HM6V Series Axial Piston Variable Displacement Hydraulic Motor Key Characteristics:

• Variable Displacement Capability: The HM6V series motor is equipped with variable displacement technology, allowing operators to adjust the motor’s displacement and output to match the application’s specific requirements. This feature provides enhanced control, efficiency, and versatility, making it suitable for various hydraulic systems.
• High Power Density: Despite its compact size, the HM6V series motor offers an impressive power density, delivering substantial power output while occupying minimal space. This characteristic is advantageous in applications with limited installation area or weight restrictions.
• Efficient Performance: The axial piston design of the HM6V series motor ensures efficient power transmission, minimizing energy losses and maximizing overall system efficiency. This results in reduced fuel consumption, lower operating costs, and improved environmental sustainability.
• Precise Speed Control: The HM6V series motor controls motor speed, allowing operators to match the output speed to the desired application requirements. This level of control ensures optimal performance, smooth operation, and increased productivity.

HM6V Series Axial Piston Variable Displacement Hydraulic Motor Parameter:

HM6V Series Axial Piston Variable Displacement Hydraulic Motor Advantages:

• Flange and plug-in designs are optional to meet different installation methods.
• Higher pressure and higher speed
• Superior performance in low speed operation provides excellent controllability.
• High activation efficiency.
• Various controllers are optional.
• Wide control range (to an angle of 0° ).
• High torque and long service life.
• Flush valve and high-pressure balance valves are optional.
• Suitable for engineering machinery and general industrial vehicles, especially rotary drilling rigs and cranes.

HM6V Series Axial Piston Variable Displacement Hydraulic Motor Application:

Usage Method Of HM6V Series Axial Piston Variable Displacement Hydraulic Motor :

• Mounting and Integration: Select an appropriate location within the hydraulic system to mount the HM6V Series Axial Piston Variable Displacement Hydraulic Motor. Ensure proper alignment and securely mount the motor using suitable brackets or accessories. Connect the motor to the hydraulic system using compatible fittings and hoses, ensuring tight and leak-free connections.
• Displacement Adjustment: Familiarize yourself with the displacement adjustment mechanism provided with the HM6V Series Motor. Depending on the specific model, it may offer manual adjustment or electronic control options. Understand the recommended adjustment procedures and settings to optimize motor performance for your application.
• System Integration: Integrate the HM6V Series Motor into the hydraulic system by connecting it to other components, such as pumps, valves, and actuators. Ensure that the motor’s displacement and performance are compatible with the overall system requirements.
• Load Considerations: Consider the load requirements of your application when using the HM6V Series Motor. Ensure that the motor’s power and torque ratings align with the intended task. Avoid overloading the motor to prevent excessive wear and potential damage.

How Do Hydraulic Cylinders Work?

Hydraulic cylinders are mechanical devices that generate linear force and motion using the power of hydraulic fluid. They play a crucial role in various applications, such as construction equipment, manufacturing machinery, and automotive systems. Here’s a simplified explanation of how hydraulic cylinders work:

1. Basic Components:
   • Cylinder Barrel: The cylindrical housing that accommodates the piston and hydraulic fluid.
   • Piston: A solid, cylindrical component that divides the cylinder barrel into two chambers.
   • Piston Rod: The rod attached to the piston, extending from one end of the cylinder.
   • Hydraulic Fluid: Usually oil-based, pressurized fluid that transmits force and motion.
2. Working Principle:
   • When hydraulic fluid is supplied under pressure to one of the chambers (referred to as the “cap” end), it exerts force on the piston, causing it to move.
   • As the piston moves, it pushes the hydraulic fluid from the opposite chamber (referred to as the “rod” end) back into the hydraulic reservoir or another part of the hydraulic system.
   • The fluid displacement from one chamber to the other creates a pressure difference, resulting in the generation of linear force and motion.
3. Single-Acting vs. Double-Acting Cylinders:
   • Single-Acting Cylinders: These cylinders have hydraulic force acting on one side of the piston only. The opposite side is usually equipped with a spring or another mechanism to facilitate the return stroke of the piston when the hydraulic pressure is released.
   • Double-Acting Cylinders: These cylinders have hydraulic force acting on both sides of the piston. The hydraulic fluid alternates between the cap and rod ends to extend or retract the piston, enabling bidirectional linear motion.
4. Control Mechanisms:
   • Direction Control Valve: Hydraulic cylinders are typically controlled by a directional control valve that governs the flow of hydraulic fluid into and out of the cylinder chambers. The valve determines the direction of piston movement (extension or retraction).
   • Pressure Control Valve: In some applications, pressure control valves are used to regulate the hydraulic pressure supplied to the cylinder. These valves ensure safe and controlled operation by maintaining the desired pressure levels within the system.
5. Force and Speed:
   • The force exerted by a hydraulic cylinder is determined by the hydraulic pressure applied to the piston and the effective area of the piston.
   • The speed of the cylinder’s linear motion depends on various factors, including the flow rate and volume of hydraulic fluid supplied, the size of the piston, and the load on the cylinder.

Capability & Capacity Of Factory:

(1) Assembly

We have a first-class independent research and development assembly platform. The hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces. The special cylinder workshop is equipped with various specifications of a semi-automatic cleaning assembly system with a designed annual production capacity of 200,000 and equipped with famous CNC machining equipment, a machining center, a high-precision cylinder processing special equipment, a robot welding machine, an automatic cleaning machine, automatic cylinder assembly machine, and automatic painting production line. Existing critical equipment of more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high-quality needs of products.

(2) Machining

The machining shop is equipped with a customized inclined rail turning center, machining center, high-speed honing machine, welding robot, and other related equipment, which can handle the processing of cylinder tubes with a maximum inner diameter of 400mm and a maximum length of 6 meters.

(3) Welding

(4) Painting & coating

With small and medium-sized cylinder automatic water-based paint coating lines, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders powered by a power chain, with 60 cases per shift design capacity.

(5) Testing

We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.

We are one of the best hydraulic cylinder manufacturers. We can offer comprehensive hydraulic cylinders. We also provide corresponding agricultural gearboxes. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
