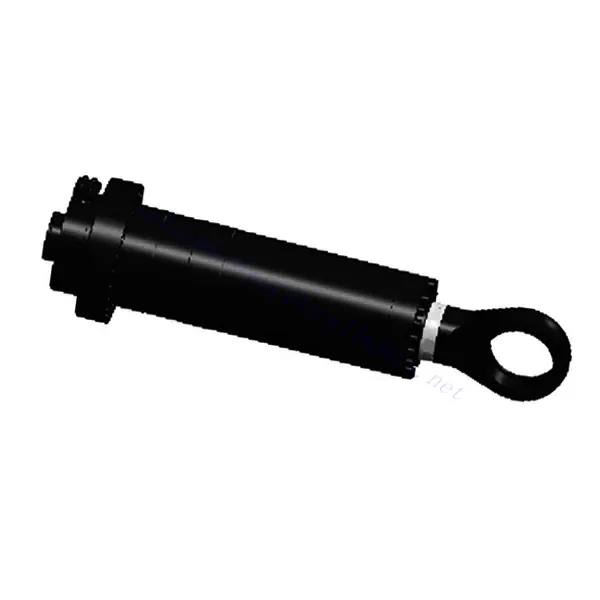

Pritisnite nagibni valj

The press tilt cylinder is a cutting-edge product that provides versatile and precise tilt control in various industrial applications. With its advanced features and robust construction, this cylinder offers reliable tilting capabilities, enabling efficient and accurate positioning of workpieces or equipment.

The press tilt cylinder is a valuable tool for achieving versatile and precise tilt control in industrial applications. With its adjustable tilt range, robust construction, and smooth movement capabilities, this cylinder empowers you to optimize the positioning and alignment of workpieces or equipment. By following the recommended usage methods and maintenance practices, you can maximize the performance, longevity, and safety of the press tilt cylinder in your industrial setup. Choose this cylinder to enhance industrial operations’ productivity, flexibility, and precision.

Press Tilt Cylinder Key Characteristics:

1. Adjustable Tilt Range:

• The press tilt cylinder allows for a wide range of tilt angles, providing flexibility and adaptability to different workpiece or equipment positioning requirements.
• This cylinder’s adjustable tilt range enables precise control over the tilt angle, ensuring optimal alignment and desired outcomes.

2. Robustna konstrukcija:

• Ta valj je izdelan iz trpežnih materialov, kar zagotavlja njegovo sposobnost, da prenese velike obremenitve in težke delovne pogoje.
• The sturdy construction of the press tilt cylinder guarantees longevity and reliability, making it suitable for demanding industrial environments.

3. Smooth and Precise Movement:

• The cylinder features a precision-engineered hydraulic system that ensures smooth and controlled tilt movement.
• The press tilt cylinder’s precise movement capabilities enable accurate positioning and eliminate jerky or abrupt motions that could compromise workpiece integrity.

4. Kompaktna zasnova:

• The press tilt cylinder is designed to be compact and space-efficient while maintaining high performance.
• Its compact design allows easy integration into existing industrial systems, saving valuable floor space and streamlining operations.

Press Tilt Cylinder Parameter:

Tovarna stiskalnih valjev:

Usage Method Of Press Tilt Cylinder:

1. Montaža in priklop:

• Identify the appropriate mounting points on the equipment or work surface where the press tilt cylinder will be installed.
• Securely attach the cylinder using the provided mounting brackets or hardware, ensuring proper alignment and stability.
• Connect the hydraulic lines according to the manufacturer’s guidelines, ensuring correct fluid flow and avoiding leaks.

2. Adjusting the Tilt Angle:

• Activate the hydraulic system and control mechanism to adjust the tilt angle of the press tilt cylinder.
• Follow the manufacturer’s instructions to achieve the desired tilt angle, taking into account the specific requirements of your application.
• Utilize integrated controls or external control systems to fine-tune the tilt angle for precise positioning.

3. Locking and Securing:

• Once the desired tilt angle is achieved, engage the locking mechanism to secure the press tilt cylinder.
• The locking mechanism ensures stability and prevents unintended movement or changes in the tilt angle during operation.

Kako izmeriti hidravlični valj?

Measuring a hydraulic cylinder accurately is essential for various purposes, such as replacement, repair, or ordering a new cylinder. Here’s a step-by-step guide on how to measure a hydraulic cylinder:

1. Določite vrsto cilindra:
   Identify the type of hydraulic cylinder you are measuring. Common types include single-acting, double-acting, telescopic, and welded cylinders. Each type may have specific measurement considerations.
2. Izmerite premer izvrtine:
   Premer izvrtine se nanaša na notranji premer cilindra. Za merjenje sledite tem korakom:
   • Ensure the cylinder is fully retracted.
   • Measure the inside diameter of the cylinder barrel using a caliper or micrometer. Place the measuring tool on opposite sides of the barrel and record the measurement.
3. Izmerite premer palice:
   The rod diameter refers to the diameter of the piston rod. To measure it:
   • Extend the cylinder completely.
   • Measure the diameter of the rod using a caliper or micrometer. Take the measurement at the exposed end of the rod.
4. Določite dolžino giba:
   The stroke length is the distance the piston rod can travel within the cylinder. To determine the stroke length:
   • Fully extend the cylinder.
   • Measure the distance from the fully retracted position to the fully extended part of the piston rod. This measurement represents the stroke length.
5. Note the Closed Length:
   The closed length is the overall length of the cylinder when fully retracted. To measure it:
   • Ensure the cylinder is in the fully retracted position.
   • Measure the distance between the mounting points or end connections of the cylinder.
6. Identify Mounting Styles and Dimensions:
   Take note of the mounting styles and dimensions of the cylinder. This includes the type of mounts (e.g., flange, clevis, trunnion), the distance between mounting holes, and the hole diameter. Measure the appropriate dimensions accurately using a measuring tape or caliper.
7. Consider Additional Specifications:
   Depending on your requirements, you may need to measure additional specifications such as the overall length when fully extended, the working pressure, and the type of seals used.

Zmogljivost in zmogljivost tovarne:

(1) Sestavljanje

Imamo prvovrstno neodvisno platformo za raziskave in razvoj. Delavnica za proizvodnjo hidravličnih cilindrov ima štiri polavtomatske montažne linije za dvižne cilindre in eno avtomatsko montažno linijo za nagibne cilindre z letno proizvodno zmogljivostjo 1 milijona kosov. Delavnica za posebne cilindre je opremljena z različnimi specifikacijami polavtomatskega sistema za čiščenje in montažo z letno proizvodno zmogljivostjo 200.000 kosov ter znano CNC obdelovalno opremo, obdelovalnim centrom, visoko precizno posebno opremo za obdelavo cilindrov, robotskim varilnim strojem, avtomatskim čistilnim strojem, avtomatskim strojem za montažo cilindrov in avtomatsko proizvodno linijo za barvanje. Obstoječa kritična oprema obsega več kot 300 kompletov (kompletov). Optimalna razporeditev in učinkovita uporaba opremnih virov zagotavljata zahteve glede natančnosti izdelkov in izpolnjujeta visoke zahteve glede kakovosti izdelkov.

(2) Strojna obdelava

Strojna delavnica je opremljena s prilagojenim centrom za struženje nagnjenih tirnic, obdelovalnim centrom, visokohitrostnim strojem za honanje, varilnim robotom in drugo sorodno opremo, ki lahko obdeluje cilindrične cevi z največjim notranjim premerom 400 mm in največjo dolžino 6 metrov.

(3) Varjenje

(4) Barvanje in premazovanje

Z majhnimi in srednje velikimi cilindričnimi avtomatskimi linijami za barvanje na vodni osnovi, za doseganje avtomatskega nakladanja in razkladanja robotov ter avtomatskega brizganja, je projektna zmogljivost 4000 kosov na izmeno;
Imamo tudi polavtomatsko linijo za proizvodnjo barv za velike jeklenke, ki jo poganja veriga, s projektno zmogljivostjo 60 zabojev na izmeno.

(5) Testiranje

Imamo prvovrstne inšpekcijske prostore in testne postaje, s katerimi zagotavljamo, da delovanje jeklenke izpolnjuje zahteve.

Smo eden najboljših proizvajalcev hidravličnih cilindrov. Ponujamo vam celovite hidravlične cilindre. Zagotavljamo tudi ustrezne kmetijski menjalnikiNaše izdelke smo izvozili strankam po vsem svetu in si prislužili dober ugled zaradi vrhunske kakovosti izdelkov in poprodajnih storitev. Z veseljem vas vabimo, da nas kontaktirate za poslovne dogovore, izmenjavo informacij in ... sodelujte z nami!
