Replacement Of AFH223623 Hydraulic Cylinder

Introduction

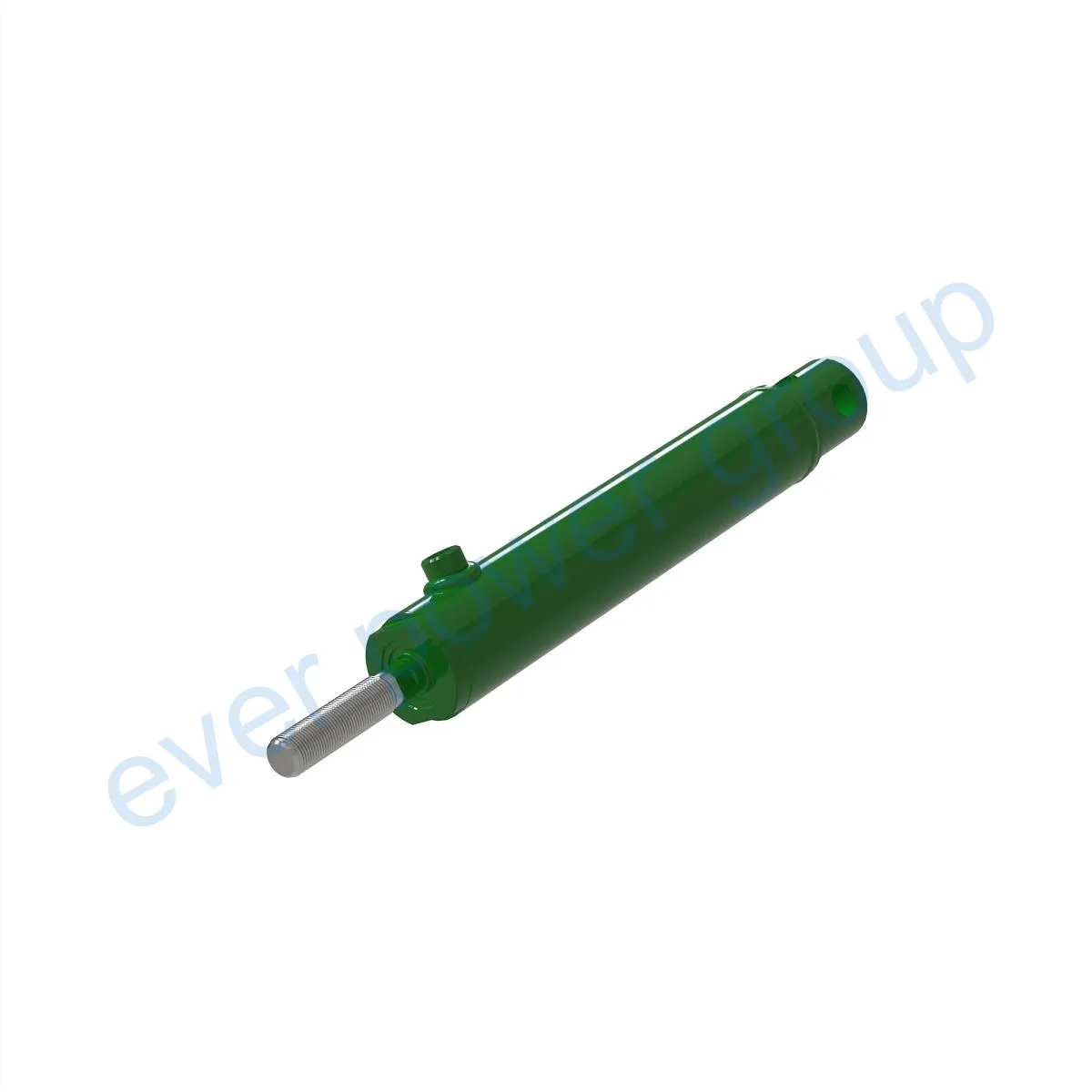

The Replacement of AFH223623 Hydraulic Cylinder is an essential part of various machines, including 440E, 449, 450E, 450M, 451M, 459, 460M, 460R, 461M, 469, 550M, 551M, 559, 560M, 560R, and 561M. It is a hydraulic cylinder that is used in construction equipment, pressure machines, transportation vehicles, and aircraft. It weighs 6.233 lbs, has a height of 1.9 in, a width of 2.9 in, and a length of 15.9 in. In this article, we will discuss the specifications, features, applications, design considerations, maintenance, safety, and troubleshooting of this hydraulic cylinder.

Specifications and Models

The Replacement of AFH223623 Hydraulic Cylinder is compatible with various models, as mentioned earlier. Its weight, height, width, and length are 6.233 lbs, 1.9 in, 2.9 in, and 15.9 in, respectively. These specifications make it suitable for various applications, such as handling heavy loads, shaping materials, and stabilizing vehicles and aircraft.

Features

The Replacement of AFH223623 Hydraulic Cylinder has several features that make it stand out. Some of these features include:

• High load-bearing capacity
• Excellent sealing properties
• Durable and long-lasting
• Safe and easy to maintain
• Perfect replacement for various hydraulic cylinders

Applications

The Replacement of AFH223623 Hydraulic Cylinder is versatile and finds its application in various industries. Some of the common applications of this hydraulic cylinder are:

1. Construction Equipment

   It is commonly used in construction equipment, such as cranes, hoists, and elevators, to securely hold heavy objects in place.

2. Manufacturing

   This hydraulic cylinder is used in pressure machines, where it is used to shape materials under high pressure. It is also used to hold the material in place during the machining process.

3. Transportation

   This hydraulic cylinder is used in vehicles, such as stabilizers and jacks, to ensure safety during repair or transportation.

4. Aerospace

   It is used in the landing gear system of aircraft to hold the landing gear in place during takeoff and landing.

Design Considerations

The Replacement of AFH223623 Hydraulic Cylinder is designed to meet specific requirements. It is important to consider the following factors while designing this hydraulic cylinder:

• Load-bearing capacity
• Sealing properties
• Durability
• Safety
• Maintainability

Sealing and Lubrication

The Replacement of AFH223623 Hydraulic Cylinder has various sealing components, such as piston seals and rod seals, made of wear-resistant materials, such as polyurethane and nitrile rubber, to ensure excellent sealing properties. The cylinder body and threaded end surface undergo fine processing to improve wear resistance. Regular lubrication with suitable hydraulic oil is required to maintain optimum performance.

Maintenance

The Replacement of AFH223623 Hydraulic Cylinder requires regular maintenance to ensure its optimal performance. Some common maintenance tasks include:

1. Regular Inspection

   Regular inspection of the hydraulic cylinder is necessary to identify any potential problems and take corrective action before they become major issues.

2. Lubrication

   Regular lubrication of the hydraulic cylinder with suitable hydraulic oil is necessary to reduce friction and minimize wear and tear.

3. Seal Replacement

   Regular replacement of sealing components, such as piston seals and rod seals, is necessary to maintain optimum sealing properties.

Installation

Proper installation of the Replacement of AFH223623 Hydraulic Cylinder is critical to ensure its optimal performance. It is recommended to use suitable installation fixtures to securely hold the cylinder in place during installation. The following steps should be followed during installation:

1. Clean the mounting surface of the cylinder and the machine.
2. Align the hydraulic cylinder properly with the mounting holes.
3. Securely tighten the mounting bolts to the recommended torque value.

A properly installed hydraulic cylinder can operate smoothly and safely for a long time.

Maintenance Tips

Regular maintenance of the Replacement of AFH223623 Hydraulic Cylinder can increase its lifespan and reduce downtime. Some maintenance tips include:

1. Regular Inspection

   Regularly inspect the hydraulic cylinder for any signs of damage or wear and take corrective action immediately.

2. Lubrication

   Use suitable hydraulic oil for lubrication and ensure that the oil level is maintained within the recommended range.

3. Seal Replacement

   Regularly replace the sealing components, such as piston seals and rod seals, to maintain optimum sealing properties.

Proper maintenance can ensure the reliable and safe operation of the hydraulic cylinder.

Safety Considerations

The Replacement of AFH223623 Hydraulic Cylinder should be used with utmost care to ensure the safety of the user and the equipment. Some safety considerations include:

• Follow the recommended installation procedure and torque values to ensure proper installation.
• Regularly inspect the hydraulic cylinder for any signs of damage or wear and take corrective action immediately.
• Use appropriate personal protective equipment, such as gloves and goggles, while handling the hydraulic cylinder.

Troubleshooting

The Replacement of AFH223623 Hydraulic Cylinder may encounter various problems during its operation. Some common problems and their solutions include:

1. Cylinder Leakage

   Cylinder leakage may occur due to worn seals or damaged piston or rod surfaces. In such cases, the seals need to be replaced, and the damaged surfaces need to be repaired or replaced.

2. Cylinder Drift

   Cylinder drift may occur due to worn seals or damaged surfaces. In such cases, the seals need to be replaced, and the damaged surfaces need to be repaired or replaced.

3. Cylinder Overheating

   Cylinder overheating may occur due to excessive friction or inadequate lubrication. In such cases, proper lubrication and maintenance are required to avoid overheating.

About Us

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, including the Replacement of AFH223623 Hydraulic Cylinder. Our products are known for their quality, reliability, and performance. We offer customized solutions to meet specific customer requirements, and our production facilities are equipped with state-of-the-art machinery. We have earned various international certifications, such as ISO 9001 and CE, and our after-sales service is second to none.
