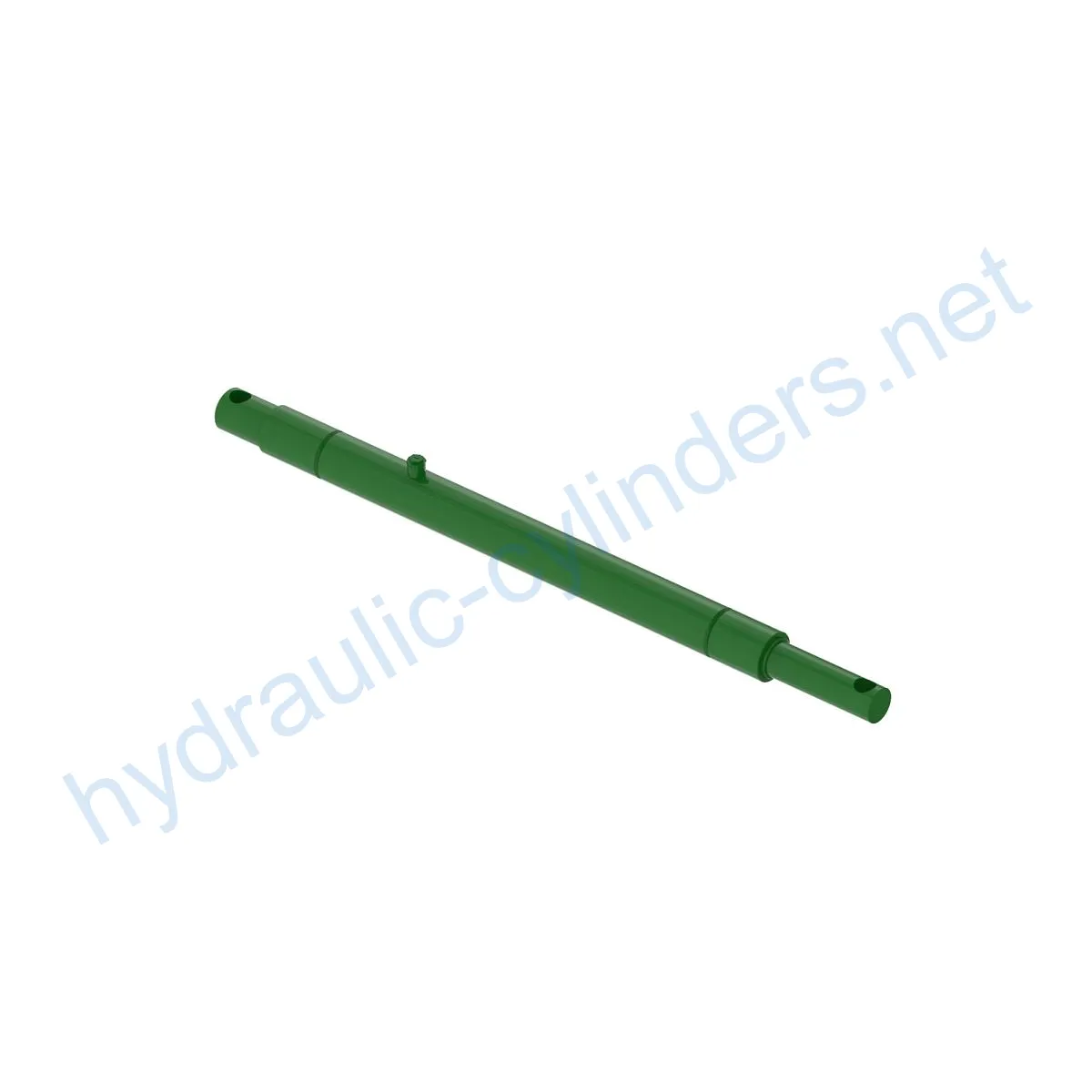

Replacement Of AH155264 Hydraulic Cylinder

First, let’s introduce the product and define what this hydraulic cylinder is and its purpose. The Replacement Of AH155264 Hydraulic Cylinder is a vital component used in various machinery, including models 9410, 9450, 9500, 9510, 9550, 9600, 9610, 9650, 9780, CTS, and CTS II. This hydraulic cylinder weighs 69 lb and has a height of 3 in, width of 4.1 in, and length of 46.8 in.

Product Specifications and Models

Specifications:

• Weight: 69 lb
• Height: 3 in
• Width: 4.1 in
• Length: 46.8 in

Compatible Models:

• 9410
• 9450
• 9500
• 9510
• 9550
• 9600
• 9610
• 9650
• 9780
• CTS
• CTS II

Product Features

Here are five key features of the Replacement Of AH155264 Hydraulic Cylinder:

1. Improved Equipment Performance: Replacing damaged or worn out hydraulic cylinders can restore the normal operational capabilities of your equipment, ensuring optimal performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failures, ensuring the safety of both operators and equipment.
3. Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing overall safety.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Furthermore, our company is capable of producing this product, providing a perfect replacement for these hydraulic cylinders.

Applications

The Replacement Of AH155264 Hydraulic Cylinder finds its application in various scenarios, including:

1. Excavators: Hydraulic cylinders in the arm or bucket of excavators may get damaged due to prolonged use or overload, requiring replacement to restore normal operation.
2. Cranes: Hydraulic cylinders in crane boom arms are susceptible to wear and tear due to frequent lifting and lowering, necessitating regular replacement for safety.
3. Tractors: Front-end loader hydraulic cylinders in tractors may experience leaks or performance decline during constant lifting and tilting operations, demanding replacement.
4. Harvesters: The hydraulic system in harvesters operates under high pressure, causing fatigue damage to the cylinders. Timely replacement is crucial to maintain work efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failure can significantly impact production efficiency and immediate replacement is recommended.
6. Die Casting Machines: Hydraulic cylinders in die casting machines may experience performance degradation under high pressure and temperature. Regular replacement ensures product quality.
7. Mining Equipment: Hydraulic cylinders are employed in lifting and moving heavy loads in mining equipment. Due to harsh working environments, regular inspections and replacements are necessary to avoid equipment failures.
8. Bulldozers: Hydraulic cylinder wear on the bulldozer’s blade can lead to decreased pushing power. Timely replacement is essential to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AH155264 Hydraulic Cylinder include:

1. Periodic Inspections: Regularly inspect the hydraulic cylinder for any signs of damage or wear.
2. Proper Lubrication: Ensure appropriate lubrication by using the recommended hydraulic oil.
3. Seal Replacement: Replace seals when necessary to prevent leaks and maintain optimal performance.
4. Calibration Checks: Periodically check and calibrate the hydraulic cylinder to ensure accurate operation.

During installation, provide proper alignment guidance for the cylinder. It is advisable to use suitable mounting brackets to secure the cylinder. We recommend following the recommended inspection, repair, and replacement procedures, offering replacement parts and rebuilding services to enhance the lifespan of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of AH155264 Hydraulic Cylinder, it is essential to prioritize safety measures. Proper usage and adherence to safety protocols are crucial to prevent accidents and injuries. Additionally, considering environmental factors when using the cylinder is important to ensure sustainable and responsible operations.

Troubleshooting and Common Issues

Here are some common troubleshooting tips and solutions related to the Replacement Of AH155264 Hydraulic Cylinder:

1. Issue: Cylinder Leaks

Solution: Inspect and replace seals or gaskets, ensuring proper tightening.

2. Issue: Cylinder Malfunction

Solution: Check for any mechanical issues, such as misalignment or damage, and replace the cylinder if necessary.

3. Issue: Insufficient Pressure

Solution: Inspect the hydraulic system for any restrictions, replace worn-out parts, and ensure proper fluid levels.

By following these troubleshooting tips and solutions, readers can effectively diagnose and resolve problems related to the hydraulic cylinder. Additionally, we provide preventive measures to minimize potential issues.

Product Design Considerations and Selection Criteria

When selecting the Replacement Of AH155264 Hydraulic Cylinder, it is essential to consider the following design aspects:

1. Load-Bearing Capacity: The cylinder should be capable of withstanding the intended load.
2. Sealing Capability: Ensure the cylinder has proper sealing components, such as piston seals and rod seals, made of durable materials like polyurethane or nitrile rubber.
3. Durability: The cylinder should be designed to withstand demanding operating conditions.
4. Safety: Prioritize cylinder designs that incorporate safety features and mechanisms.
5. Maintainability: Opt for cylinders that are easy to maintain and repair.

Furthermore, the Replacement Of AH155264 Hydraulic Cylinder incorporates various sealing and lubrication techniques to ensure optimal performance. It utilizes high-quality sealing materials, such as polyurethane and nitrile rubber, and undergoes meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to ensure smooth operation.

Regular Inspection and Preventive Maintenance

Regular inspection and preventive maintenance procedures for the Replacement Of
