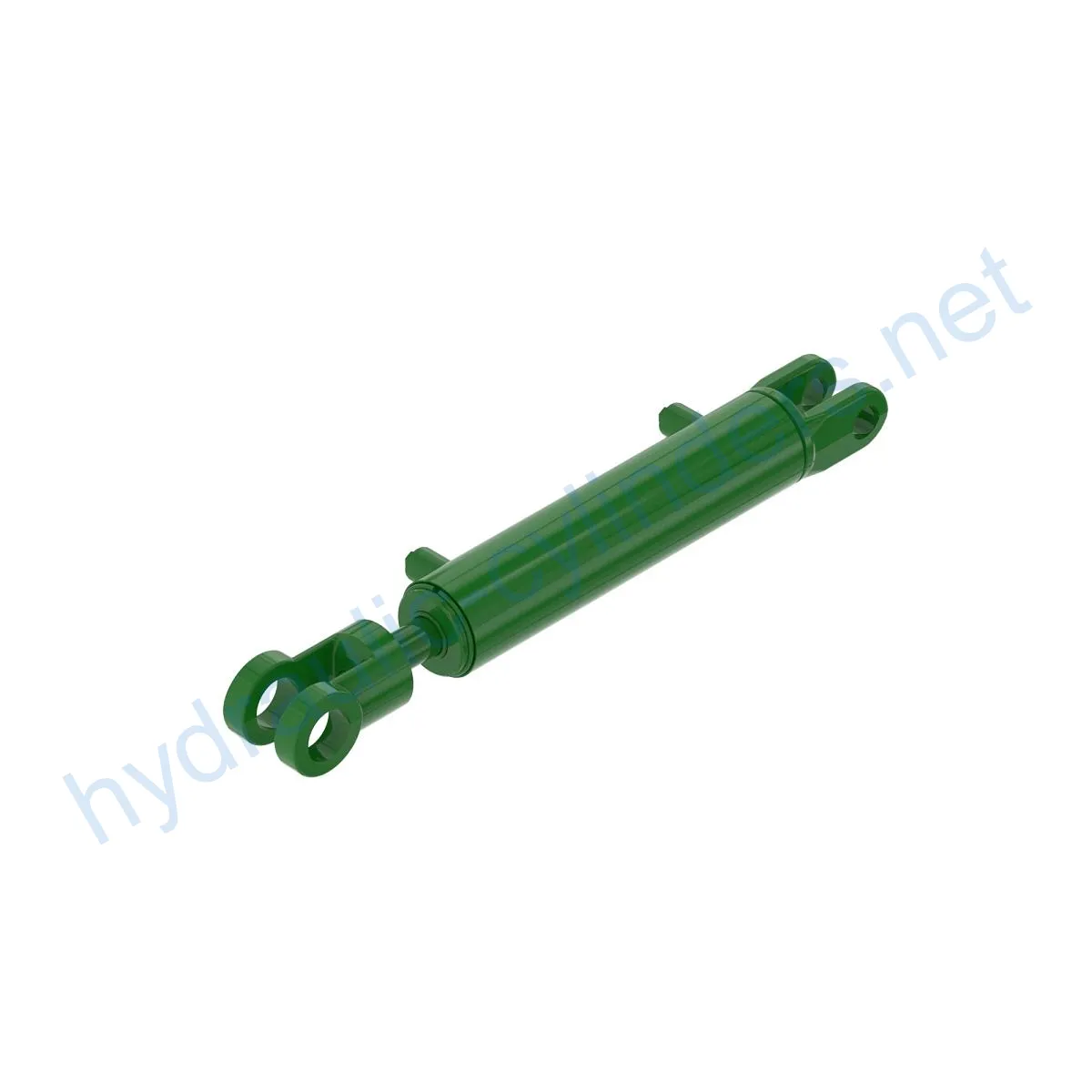

Replacement Of AH207336 Hydraulic Cylinder

This hydraulic cylinder, with the title “Replacement Of AH207336 Hydraulic Cylinder,” is a crucial component in various machinery models such as 1760NT and 1765. It weighs 19.6 lb and has dimensions of 5.5 in (height), 5.5 in (width), and 28 in (length).

Introduction to the Hydraulic Cylinder

The hydraulic cylinder is a mechanical actuator that is responsible for creating linear motion using hydraulic fluid power. Its primary function is to convert hydraulic energy into mechanical force, allowing machines to perform tasks efficiently.

Specifications and Models

The Replacement Of AH207336 Hydraulic Cylinder has the following specifications:

• Weight: 19.6 lb
• Height: 5.5 in
• Width: 5.5 in
• Length: 28 in

This hydraulic cylinder is compatible with the 1760NT and 1765 models.

Key Features

1. Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operational capabilities of equipment, ensuring optimal performance across various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failures, ensuring the safety of operators and equipment.
3. Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing safety during operations.
4. Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Application Scenarios

The Replacement Of AH207336 Hydraulic Cylinder finds application in various scenarios, including:

1. Excavators: Hydraulic cylinders in excavator arms or buckets may get damaged due to prolonged use or overload, requiring replacement to restore normal operation.
2. Cranes: Hydraulic cylinders in crane boom arms are prone to wear during frequent lifting and lowering processes, necessitating regular replacement for safety reasons.
3. Tractors: Hydraulic cylinders in front-end loader attachments of tractors may experience leaks or performance decline during continuous lifting and tilting operations, necessitating replacement.
4. Harvesters: Hydraulic cylinders in harvesting equipment endure high pressure during the harvesting process, leading to fatigue damage and requiring timely replacement to maintain efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Any cylinder failure can significantly impact production efficiency, calling for immediate replacement.

Maintenance Tasks

Regular maintenance tasks for hydraulic cylinders include:

1. Periodic Inspection
2. Proper Lubrication
3. Seal Replacement
4. Calibration Check

Proper installation, lubrication, and adjustment are vital. Providing proper guidance for aligning the cylinder during installation is recommended. The use of appropriate mounting brackets to secure the cylinder is advised. Recommended procedures for inspection, repair, and replacement should be followed. Replacement parts and rebuilding services are available to extend the lifespan of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of AH207336 Hydraulic Cylinder, it is important to adhere to safety measures. The proper use of safety precautions while handling hydraulic cylinders cannot be overstated. Ensuring a safe working environment is essential to prevent accidents and injuries.

Troubleshooting and Common Issues

Common issues and troubleshooting tips for the Replacement Of AH207336 Hydraulic Cylinder:

1. Leakage: Check the seals and connections for any signs of leakage. Replace faulty seals and tighten loose connections.
2. Slow Operation: Inspect the hydraulic fluid levels and ensure they are within the recommended range. Replace or top up the fluid as necessary.
3. Sticking or Jerking Motion: Check for any obstructions or misalignment that may be hindering the smooth operation of the hydraulic cylinder. Correct any issues and ensure proper alignment.

Effective troubleshooting and problem-solving techniques can help diagnose and resolve issues promptly. Providing preventive measures can minimize potential problems.

Product Design Considerations and Selection Criteria

When considering the design and selection of hydraulic cylinders, several aspects should be taken into account:

1. Load-Bearing Capacity
2. Sealing Performance
3. Durability
4. Safety Features
5. Maintainability

Sealing and Lubrication

To ensure optimal sealing and lubrication, the Replacement Of AH207336 Hydraulic Cylinder utilizes various sealing components such as piston seals and rod seals made of wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo meticulous surface treatment to enhance wear resistance. Regular lubrication with the appropriate amount of hydraulic fluid is necessary.

Regular Inspection and Preventive Maintenance

Regular inspection and preventive maintenance measures include:

1. Proper Installation
2. Correct Lubrication
3. Calibration Check

Providing accurate installation guidelines, aligning the cylinder correctly during the installation process, and recommending the use of suitable mounting brackets to secure the cylinder are important. Inspection, repair, and replacement procedures should be followed. Replacement parts and rebuilding services are available to extend the lifespan of the hydraulic cylinder.

Company Overview

We are a leading manufacturer and wholesale distributor of replacement hydraulic cylinders. Our comprehensive range of products has made us a prominent player in both domestic and international markets.

Key aspects of our company:

• Professionalism
• International Certifications
• Customization Services
• State-of-the-Art Production Equipment
• Excellent After-Sales Service
