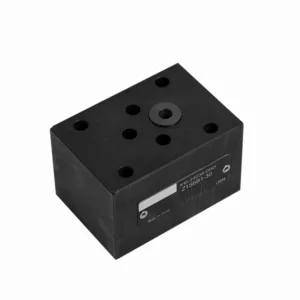

Z1S Series Check Hydraulic Valve

The Z1S series check hydraulic valve is a direct-operated check valve in a sandwich plate design. It is used for leakage-free blocking in one direction and allows free flow in the opposite direction. The Z1S series check hydraulic valve is critical in many hydraulic systems, including mobile equipment, construction machinery, and industrial automation equipment.

The Z1S series check hydraulic valve is a high-quality, durable valve that is ideal for a wide range of hydraulic applications. It is easy to use and maintain and provides excellent flow control and pressure retention. If you are looking for a reliable and efficient check valve for your hydraulic system, the Z1S series is a great option.

Z1S Series Check Hydraulic Valve Key Characteristics:

• High-pressure Capacity: The Z1S series check hydraulic valve can withstand operating pressures up to 350 bar.
• Low-pressure Drop: The Z1S series check hydraulic valve has a very low-pressure drop, which maximizes system efficiency.
• Excellent Flow Control: The Z1S series check hydraulic valve provides precise flow control, even at high flow rates.
• Durable Construction: The Z1S series check hydraulic valve is made from high-quality materials and is built to withstand the rigors of demanding hydraulic applications.
• Easy To Maintain: The Z1S series check hydraulic valve is easy to disassemble and inspect, making it simple to maintain and repair.

Z1S Series Check Hydraulic Valve Parameter:

Z1S Series Check Hydraulic Valve Advantages:

• Sandwich type structure, used in vertical sandwich type installation
• Eight models (see model description)

Usage Method Of Z1S Series Check Hydraulic Valve:

The Z1S series check hydraulic valve is typically used in the following applications:

• To prevent backflow in hydraulic systems
• To protect hydraulic components from damage
• To control the flow of hydraulic fluid in one direction
• To hold hydraulic pressure in a system

Maintenance Of Z1S Series Check Hydraulic Valve:

The Z1S series check hydraulic valve requires minimal maintenance. However, inspecting the valve regularly for signs of wear or damage is important. If any problems are found, the valve should be replaced immediately.

Here are some tips for maintaining your Z1S series check hydraulic valve:

• Inspect the valve regularly for signs of wear or damage. Look for cracks, leaks, and other imperfections.
• Clean the valve regularly with a mild soap and water solution. Avoid using harsh chemicals or solvents.
• Lubricate the moving parts of the valve with a light-duty oil or grease.
• If the valve is not working correctly, replace it immediately.

Kako deluje hidravlični cilinder?

Here is a simplified explanation of how a hydraulic cylinder works:

1. Hydraulic fluid is pumped into one side of the cylinder bore.
2. The hydraulic fluid pressure pushes the piston in the opposite direction.
3. The piston rod extends from the cylinder and transmits the force to the load being moved.
4. To retract the piston, hydraulic fluid is pumped into the other side of the cylinder bore.
5. The hydraulic fluid pressure pushes the piston in the opposite direction.
6. The piston rod retracts into the cylinder.

Hydraulic cylinders are available in a variety of sizes and configurations to meet the needs of different applications. They can be single-acting or double-acting. Single-acting cylinders only produce force in one direction, while double-acting cylinders can produce force in both directions.

Capability & Capacity Of Factory:

(1) Assembly

We have a first-class independent research and development assembly platform. The hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces. The special cylinder workshop is equipped with various specifications of a semi-automatic cleaning assembly system with a designed annual production capacity of 200,000 and equipped with famous CNC machining equipment, a machining center, a high-precision cylinder processing special equipment, a robot welding machine, an automatic cleaning machine, automatic cylinder assembly machine, and automatic painting production line. Existing critical equipment of more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high-quality needs of products.

(2) Machining

The machining shop is equipped with a customized inclined rail turning center, machining center, high-speed honing machine, welding robot, and other related equipment, which can handle the processing of cylinder tubes with a maximum inner diameter of 400mm and a maximum length of 6 meters.

(3) Welding

(4) Painting & coating

With small and medium-sized cylinder automatic water-based paint coating lines, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders powered by a power chain, with 60 cases per shift design capacity.

(5) Testing

We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.

We are one of the best hydraulic cylinder manufacturers. We can offer comprehensive hydraulic cylinders. We also provide corresponding agricultural gearboxes. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
