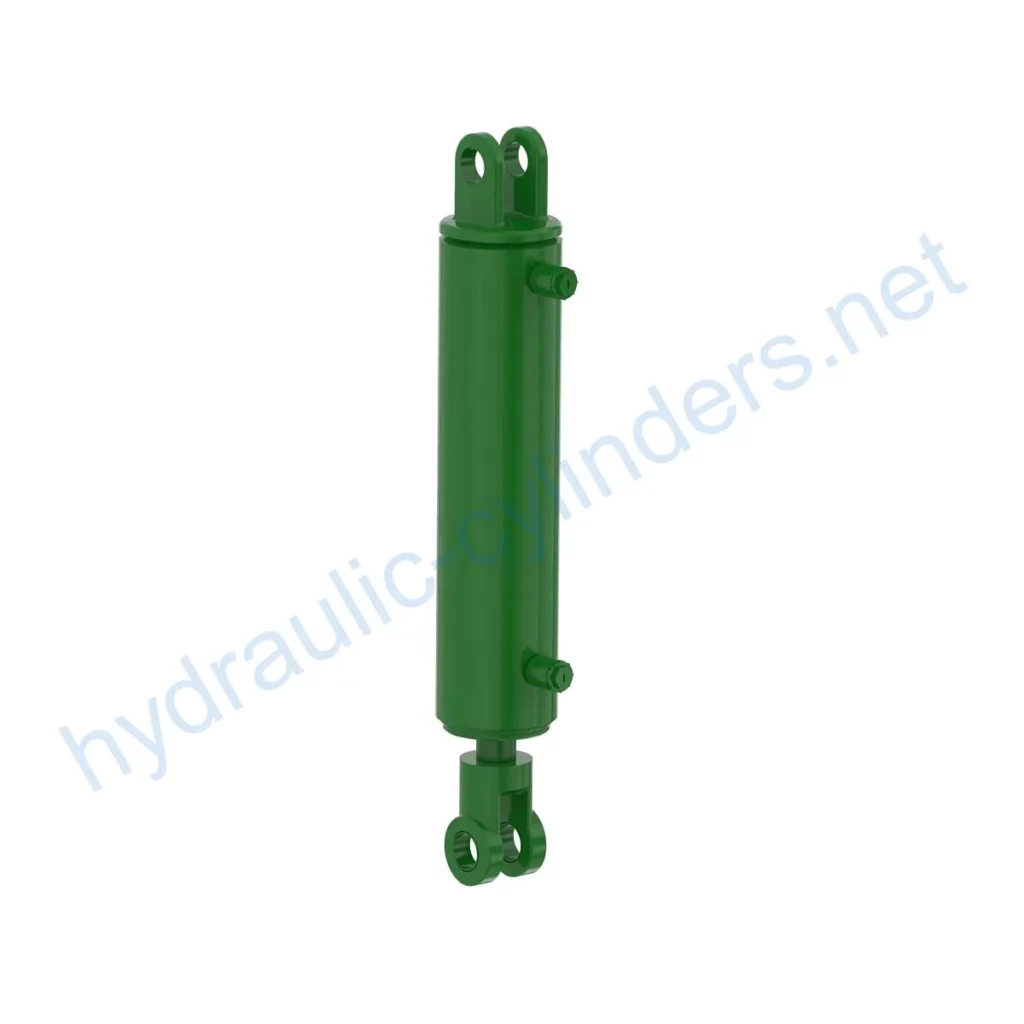

Replacement Of AH212709 Hydraulic Cylinder

Replacement Of AH212709 Hydraulic Cylinder

Product Definition

The Replacement of AH212709 Hydraulic Cylinder is a hydraulic component used for heavy machinery such as excavators, cranes, tractors, harvesters, and more. Its main function is to convert hydraulic energy into mechanical force, which allows the machinery to move or lift heavy loads. The Replacement of AH212709 Hydraulic Cylinder is designed as a direct replacement to the AH212709 model and is compatible with 512, 2230FH, 2230LL, 2330, 2660VT, and 2730 machine models.

Product Specifications

• Weight: 42.8 lb
• Height: 4.5 in
• Width: 6 in
• Length: 27 in

Product Features

• Improves Equipment Performance: Replacing a damaged or worn hydraulic cylinder can restore the normal operating capacity of the equipment, ensuring its performance in various applications.
• Enhances Safety: Regularly replacing hydraulic cylinders reduces safety hazards caused by cylinder failure, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs usually consider better overload protection mechanisms, enhancing safety.
• Quick Installation: Modern hydraulic cylinder designs usually take into account ease of installation and replacement, reducing downtime.
• Standardized Parts: Many hydraulic cylinders are standardized products, making it easy to obtain replacement parts in the market.

We can produce this product and provide a perfect replacement for these hydraulic cylinders.

Product Applications

The Replacement of AH212709 Hydraulic Cylinder is used in various heavy machinery and equipment. Here are some examples:

• Excavators: The hydraulic cylinder in an excavator’s arm or bucket may be damaged due to long-term use or overload, requiring replacement to restore normal operation.
• Cranes: The hydraulic cylinder in a crane’s boom is prone to wear through frequent lifting and lowering, requiring regular replacement to ensure safety.
• Tractors: The hydraulic cylinder in a tractor’s front loader may leak or experience reduced performance due to continuous lifting and tilting operations, requiring replacement.
• Harvesters: During harvesting, the hydraulic system is under high pressure, and the cylinder may be damaged due to fatigue, requiring timely replacement to maintain work efficiency.
• Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. If a cylinder fails, it can affect production efficiency and requires immediate replacement.
• Die Casting Machines: In high-pressure and high-temperature environments, hydraulic cylinders may experience reduced performance, regular replacement can ensure product quality.
• Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy objects in mining equipment. Due to the harsh working environment, regular inspection and replacement are necessary to avoid equipment failure.
• Bulldozers: The wear of the hydraulic cylinder on the bulldozer’s blade will lead to a decrease in the bulldozing ability, and timely replacement is required to maintain operation efficiency.

Maintenance Tasks

Regular maintenance is essential to prolong the life of a hydraulic cylinder. Here are some common maintenance tasks:

• Regular Inspection: Checking for leaks, deformations, and other signs of damage can prevent potential problems.
• Lubrication: Proper lubrication reduces friction and wear, preventing cylinder failure.
• Seal Replacement: Worn seals can cause leaks, reducing cylinder performance. Replacing seals can prevent loss of hydraulic fluid and reduce the potential for cylinder failure.
• Calibration Check: Regular calibration checks maintain accuracy and ensure the cylinder is functioning properly.

Correct installation, lubrication, and adjustment are crucial to a cylinder’s longevity. Proper alignment of the cylinder is essential during installation. Using appropriate mounting brackets to secure the cylinder can prevent damage. Recommended inspection, repair, and replacement procedures are provided, as well as replacement parts and rebuilding services to improve the cylinder’s lifespan.

Safety Considerations and Environmental Factors

Safety precautions should be taken when handling hydraulic cylinders. Proper training and protective gear can prevent injuries.

Environmental factors such as moisture, temperature, and debris can affect the performance of hydraulic cylinders. Regular inspection and maintenance can prevent potential problems.

Troubleshooting and Common Issues

Here are some common issues that may arise with hydraulic cylinders:

• Noise: Hydraulic cylinders that are too loose or too tight can cause noise during operation.
• Leaking: Worn seals or incorrect installation can cause leaks.
• Slow Operation: Lack of lubrication or air in the hydraulic system can cause slow operation.

Proper diagnosis and problem-solving can prevent cylinder failure. Troubleshooting tips and solutions are provided for effective diagnosis and problem-solving. Preventive measures are also suggested to minimize potential problems.

Design Considerations and Selection Criteria

The Replacement of AH212709 Hydraulic Cylinder is designed with various considerations such as load-bearing capacity, sealing, durability, safety, and maintainability. These are crucial factors in maintaining the cylinder’s performance.

• Load-bearing Capacity: Choosing the right cylinder with sufficient load-bearing capacity is essential for heavy machinery.
• Sealing: High-quality seals prevent leaks and reduce cylinder failure.
• Durability: Selecting a cylinder made of high-quality materials increases durability and extends the cylinder’s lifespan.
• Safety: Ensuring safety during operation is a critical consideration in cylinder design.
• Maintainability: Easy maintenance and replacement processes ensure that the cylinder can function properly for an extended period.

The Replacement of AH212709 Hydraulic Cylinder uses various sealing components such as piston seals and rod seals made with wear-resistant materials such as polyurethane and nitrile rubber. The cylinder’s cylinder body and thread end surface undergo precise treatment to improve durability. Regularly adding an appropriate amount of hydraulic oil can maintain the cylinder’s lubrication. Proper installation and maintenance can extend the cylinder’s lifespan.

Installation Guide

Proper installation of the hydraulic cylinder is essential to ensure its proper function. Here are some guidelines for proper installation:

• Align the cylinder correctly with the attachment points.
• Use suitable mounting brackets to secure the cylinder.
• Follow recommended installation procedures and torque values.

These guidelines can prevent damage to the cylinder during installation and ensure proper alignment.

About Our Company

We are a manufacturer of replacement hydraulic cylinders with a complete range of products. We are one of the leading manufacturers and wholesale distributors of hydraulic cylinders in the domestic and international markets.

We pride ourselves on our professionalism, international certifications, custom services, production equipment, and after-sales services. We offer custom hydraulic cylinders to meet individual customer requirements, and we have the expertise and technology to provide high-quality products.
