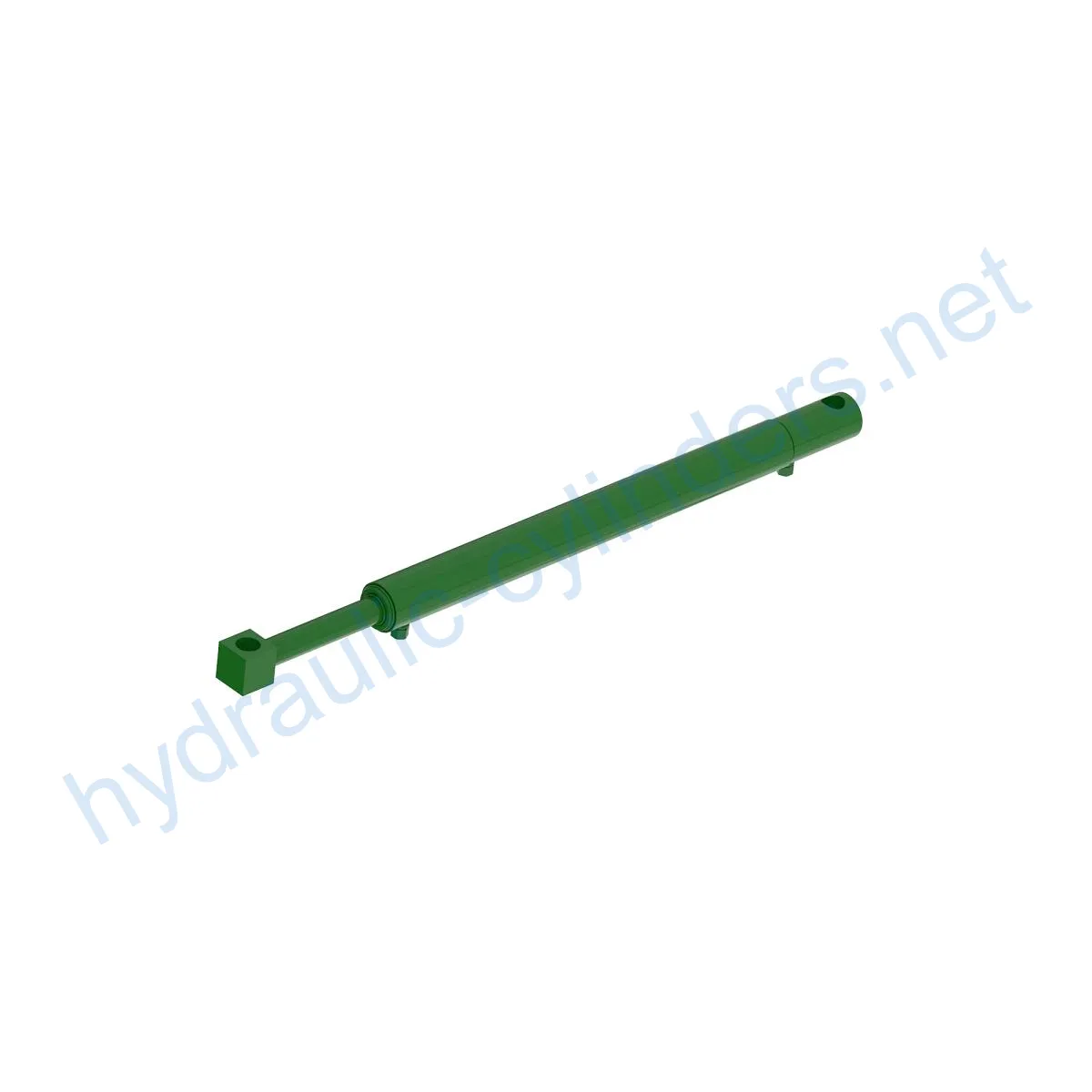

Replacement Of AH220697 Hydraulic Cylinder

Introduction

The Replacement Of AH220697 Hydraulic Cylinder is a crucial component in various industrial applications. As a leading manufacturer and wholesaler of hydraulic cylinders, we provide a perfect replacement for this specific model. In this article, we will explore the specifications, features, applications, maintenance tasks, safety considerations, troubleshooting, design considerations, and company profile related to this hydraulic cylinder replacement.

Specifications and Model

The Replacement Of AH220697 Hydraulic Cylinder has the following specifications:

• Weight: 50.13 lb
• Height: 2.3 in
• Width: 4 in
• Length: 47 in

Compatible models: 562, 563, 673

Features

The Replacement Of AH220697 Hydraulic Cylinder offers the following key features:

1. Improved Equipment Performance: By replacing damaged or worn-out hydraulic cylinders, the equipment’s normal operating capability can be restored, ensuring optimal performance in various applications.
2. Enhanced Safety: Regularly replacing hydraulic cylinders reduces the safety risks associated with cylinder failures, ensuring the safety of operators and equipment.
3. Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing overall safety.
4. Quick Installation: Modern hydraulic cylinders are designed with ease of installation and replacement in mind, minimizing downtime.
5. Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts from the market.

Applications

The Replacement Of AH220697 Hydraulic Cylinder finds applications in various scenarios, including:

1. Excavators: The hydraulic cylinder may require replacement on the boom or bucket of an excavator due to prolonged use or overloading, ensuring smooth operations.
2. Crane: The lifting arm hydraulic cylinder of a crane is prone to wear during frequent lifting and lowering processes, necessitating regular replacements to ensure safety.
3. Tractors: The front-end loader hydraulic cylinder of a tractor may experience leaks or performance degradation during constant lifting and tilting operations, requiring replacements.
4. Harvesters: The hydraulic cylinders in the hydraulic system of a harvester endure high pressure during operation, and timely replacements are necessary to maintain efficiency.
5. Automated Production Lines: Hydraulic cylinders are employed to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency and should be promptly replaced.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of AH220697 Hydraulic Cylinder include:

1. Periodic Inspections: Regularly inspect the cylinder for any signs of wear, leaks, or damage.
2. Proper Lubrication: Ensure the cylinder is adequately lubricated with the recommended hydraulic oil.
3. Seal Replacement and Calibration Checks: Replace worn-out seals and perform calibration checks to maintain optimal performance.

Safety Considerations and Environmental Factors

When using the Replacement Of AH220697 Hydraulic Cylinder, it is crucial to follow proper safety measures. Safety precautions must be taken into account to prevent accidents and ensure the safe operation of the equipment. Additionally, considering environmental factors is essential to minimize the impact on the surroundings.

Troubleshooting and Common Issues

Common issues and troubleshooting tips related to the Replacement Of AH220697 Hydraulic Cylinder include:

1. Leakage: If the cylinder is leaking, check for damaged seals and replace them if necessary.
2. Slow Operation: Insufficient lubrication or worn-out components may cause slow operation. Ensure proper lubrication and consider replacing worn parts.
3. Unusual Noises: Unusual noises during cylinder operation may indicate internal damage or misalignment. Inspect and realign the cylinder if needed.

Preventive Measures

To minimize potential issues, it is important to take preventive measures such as regular inspections, proper lubrication, and following recommended maintenance procedures. These measures can effectively diagnose and resolve problems before they become major concerns.

Design Considerations and Selection Criteria

When considering the design of the Replacement Of AH220697 Hydraulic Cylinder, several factors should be taken into account, including load-bearing capacity, sealing performance, durability, safety features, and ease of maintenance. Each of these aspects is crucial for ensuring optimal performance and longevity.

Sealing and Lubrication

The Replacement Of AH220697 Hydraulic Cylinder utilizes various sealing components, such as piston seals and rod seals, made of wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded end surfaces undergo meticulous treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to ensure smooth operation.

Regular Inspections and Preventive Maintenance

Regular inspections and preventive maintenance are crucial for the Replacement Of AH220697 Hydraulic Cylinder. Proper installation, lubrication, and adjustment play vital roles in its performance. During installation, providing proper alignment guidance and recommending the use of suitable mounting brackets to secure the cylinder are essential. We offer inspection, repair, and replacement services to improve the lifespan of the cylinder.

Installation Guide

For correct installation of the Replacement Of AH220697 Hydraulic Cylinder, follow these guidelines:

1. Inspect the cylinder for any signs of damage before installation.
2. Ensure proper alignment and orientation of the cylinder according to the equipment’s specifications.
3. Use appropriate tools and techniques to securely fasten the cylinder.
4. Follow the recommended installation procedures provided by the manufacturer.

Company Profile

We are a renowned manufacturer and wholesaler of replacement hydraulic cylinders, offering a wide range of products. With our comprehensive selection, we have become a leading supplier in both domestic and international markets. We pride ourselves on our professionalism, international certifications, customized services, advanced production equipment, and excellent after-sales support.
