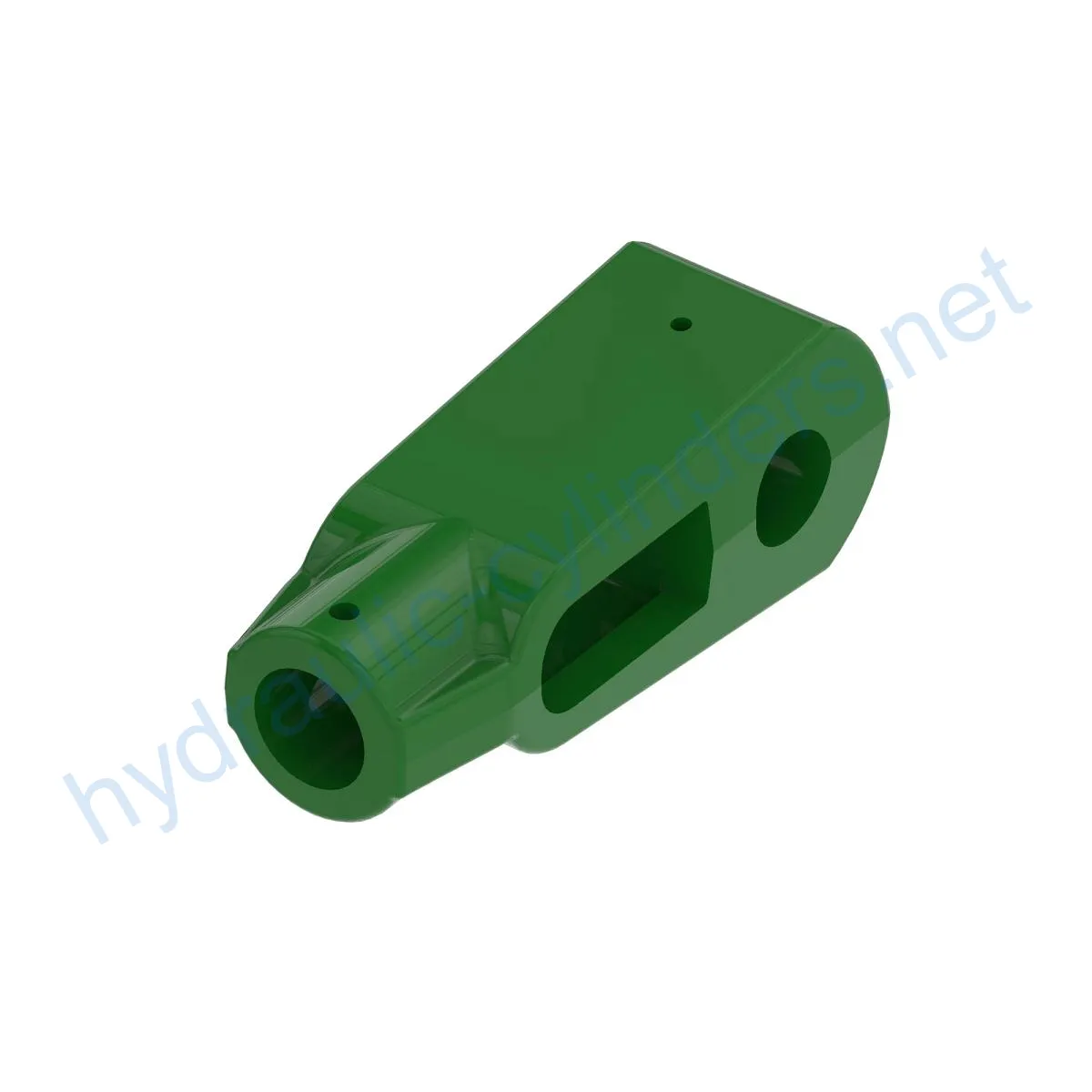

Replacement Of N240773 Hydraulic Cylinder End

Introduction

The Replacement Of N240773 Hydraulic Cylinder End is a crucial component used in various industrial applications. This hydraulic cylinder plays a vital role in converting hydraulic energy into linear motion, enabling the efficient operation of machinery.

Specifications and Models

Specifications:

• Weight: 8.59 lb
• Height: 3 in
• Width: 3.1 in
• Length: 8.3 in
• Screw Size: 1.5 in

Compatible models:

• 637
• 650
• 2230LL
• 2310
• 2330
• 2620
• 2623
• 2623VT
• 2625
• 2630
• 2633
• 2633VT
• 2635
• 2660VT

Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the normal operational capabilities of equipment, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces the safety hazards caused by cylinder failures, ensuring the well-being of both operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, enhancing overall safety.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Our company specializes in the production of replacement hydraulic cylinders that perfectly match the specifications and models mentioned above. Our products are designed to meet the highest standards of quality and performance.

Applications

Here are a few examples of the applications where the Replacement Of N240773 Hydraulic Cylinder End can be used:

Excavators

In excavators, the hydraulic cylinder located in the boom or bucket may get damaged due to prolonged use or overload, requiring replacement to restore normal operation.

Cranes

The hydraulic cylinders in a crane’s lifting arm are prone to wear and tear due to frequent lifting and lowering operations. Regular replacement ensures safety and reliable performance.

Tractors

The front-end loader hydraulic cylinders in tractors can experience leaks or performance degradation due to continuous lifting and tilting operations. Replacement is necessary to maintain optimal functionality.

Harvesters

Hydraulic cylinders in harvesters endure high pressure during the harvesting process and may suffer from fatigue. Timely replacement is crucial to maintain work efficiency.

Automated Production Lines

Hydraulic cylinders are used to control robotic arms and other automated equipment in production lines. Immediate replacement is necessary in case of cylinder failure to avoid disrupting production efficiency.

Die Casting Machines

In high-pressure and high-temperature environments, hydraulic cylinders in die casting machines may experience performance degradation. Regular replacement ensures product quality.

Mining Equipment

Hydraulic cylinders are used in mining equipment for lifting and moving heavy loads. Due to the harsh working conditions, regular inspections and replacements are necessary to avoid equipment failures.

Bulldozers

Worn hydraulic cylinders in a bulldozer’s push arm can lead to a decrease in pushing capacity. Timely replacement is essential to maintain operational efficiency.

Maintenance Tasks

Regular maintenance tasks for the Replacement Of N240773 Hydraulic Cylinder End include:

1. Periodic Inspection

Regular inspections help identify any signs of damage or wear in the hydraulic cylinder. Prompt detection allows for timely replacement or repairs.

2. Proper Lubrication

Applying the appropriate amount of hydraulic oil ensures smooth operation and reduces the risk of cylinder damage. Regular lubrication helps extend the lifespan of the cylinder.

3. Seal Replacement and Calibration Check

Replacing seals when necessary prevents leakage and maintains the cylinder’s performance. Regular calibration checks ensure accurate operation and optimal efficiency.

During installation, it is crucial to provide proper guidance for aligning the cylinder. Using suitable installation brackets to secure the cylinder is recommended. We also offer inspection, repair, and replacement procedures, along with rebuilding services, to enhance the longevity of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the Replacement Of N240773 Hydraulic Cylinder End, it is essential to follow appropriate safety measures to prevent accidents. Ensuring a safe working environment is crucial for both operators and equipment.

Fault Diagnosis and Common Problems

Common problems that may occur with hydraulic cylinders include:

1. Leakage

Leakage can result from damaged seals or faulty connections. Regular inspection and prompt seal replacement are necessary to prevent further issues.

2. Insufficient Performance

If the hydraulic cylinder fails to deliver the required force or speed, it can indicate internal damage. Proper diagnosis and appropriate repairs or replacements are essential in such cases.

3. Cylinder Drift

Cylinder drift can occur due to internal leaks or improper pressure control. Identifying the root cause and addressing it promptly is crucial to maintain stability and performance.

To resolve these issues, it is important to provide troubleshooting tips and effective solutions. Precautionary measures should also be suggested to minimize potential problems.

Design Considerations and Selection Criteria

When selecting a hydraulic cylinder, the following design considerations should be taken into account:

1. Load Bearing Capacity

The hydraulic cylinder should be capable of handling the intended load without compromising performance or safety.

2. Sealing Efficiency

Effective sealing mechanisms, such as piston seals and rod seals made from durable materials like polyurethane or nitrile rubber, ensure optimal performance and longevity.

3. Durability

The cylinder body and threaded ends should undergo precise surface treatments to enhance wear resistance, ensuring prolonged usage.

4. Safety

Considerations like overload protection mechanisms and safety features should be incorporated into the cylinder’s design for reliable operation.

5. Maintainability

Easy access for inspection, repair, and replacement procedures simplifies maintenance tasks, reducing downtime.

Sealing and Lubrication
