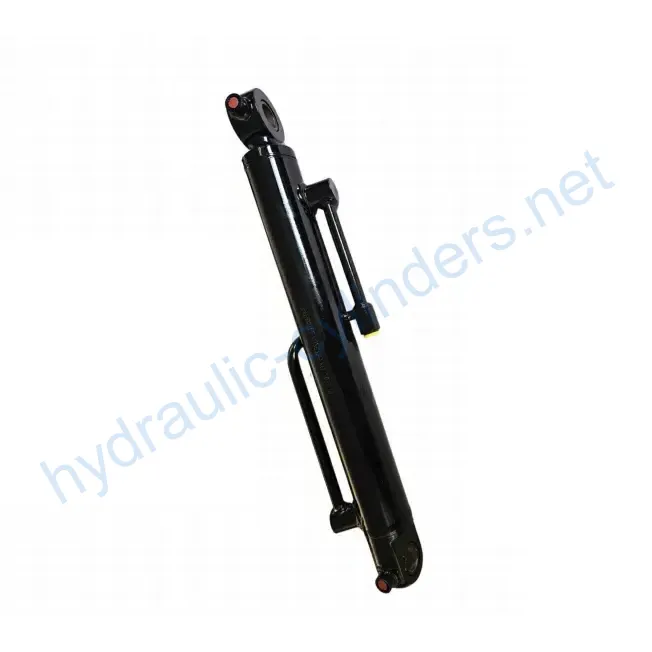

CSYG2075B Micro Digging Bucket Arm Cylinder

Product Overview

The CSYG2075B Micro Digging Bucket Arm Cylinder is an essential hydraulic component designed for various digging applications. This hydraulic cylinder operates with precision and efficiency, allowing operators to maneuver digging buckets with ease. It is specifically engineered to facilitate digging operations in tight spaces, making it ideal for mini excavators and other compact machinery. The cylinder boasts a robust design that ensures durability and long-lasting performance, making it a reliable choice for construction and excavation projects.

Product Specifications

• Cylinder Diameter: 50mm
• Rod Diameter: 30mm
• Travel: 325mm
• Installation Distance: 535mm

These specifications highlight the cylinder’s compact size and operational capabilities, making it suitable for a range of applications where space and power are crucial.

Key Features

• High durability due to quality material selection
• Compact design allowing for use in confined spaces
• Reliable sealing technology that prevents leaks
• Easy installation with standardized fittings
• Versatile applications across various machinery

We manufacture this product to perfectly replace existing hydraulic cylinders in your machinery, ensuring seamless integration and optimal performance.

Application Scenarios

Construction Sites

In construction sites, the CSYG2075B Micro Digging Bucket Arm Cylinder is used in mini excavators for tasks such as trenching and foundation work. Its compact design allows operators to maneuver in tight areas, executing precise digging operations. The cylinder’s reliability ensures that it can handle demanding tasks consistently while minimizing downtime, making it an essential tool for contractors.

Landscaping Projects

Landscapers benefit from this hydraulic cylinder by using it in small excavators for planting trees, digging ponds, or shaping landscapes. Its travel distance of 325mm provides enough reach for various tasks, while its robustness ensures it can withstand the pressures of digging in diverse soil conditions.

Road Maintenance

For road maintenance, this hydraulic cylinder aids in the repair of infrastructure by operating attachments that remove asphalt or soil. Its efficiency in small spaces allows for quick repairs, enhancing roadway safety and longevity.

Design Considerations and Selection Criteria

Load Capacity

The load capacity of the CSYG2075B is crucial for ensuring it can operate effectively under various conditions. It is designed to handle substantial loads, making it reliable for heavy-duty applications. When selecting a hydraulic cylinder, it is important to assess the load requirements of the machinery it will be used with to ensure compatibility and safety.

Sealing Integrity

Sealing is a critical factor in the design of hydraulic cylinders. The CSYG2075B features advanced sealing technology that minimizes leakage and maintains hydraulic pressure, ensuring efficient operation. Proper sealing extends the life of the cylinder and reduces maintenance costs. Regular inspection of seals is necessary to prevent performance issues.

Durability and Longevity

Durability is a key consideration in the design of the CSYG2075B. It is constructed from high-quality materials that resist wear and tear. This ensures a longer lifespan, even under rigorous usage conditions. When selecting hydraulic cylinders, durability should be a priority to avoid frequent replacements and associated costs.

Safety Features

Incorporating safety features into the design of hydraulic cylinders is essential. The CSYG2075B includes mechanisms that prevent overextension and ensure stable operation. Operators should always prioritize safety by following guidelines and ensuring that equipment is in proper working order before use.

Maintenance and Serviceability

Designing for serviceability is another important aspect. The CSYG2075B is engineered for easy access during maintenance, allowing for quick inspections and repairs. Regular maintenance is vital to ensure ongoing performance and safety, making this feature a significant advantage.

Sealing and Lubrication

Effective sealing and lubrication are vital for the performance and longevity of hydraulic cylinders. The CSYG2075B utilizes various sealing components, such as piston seals and rod seals, made from wear-resistant materials like polyurethane and nitrile rubber. These materials provide excellent durability against harsh operating conditions. The cylinder’s body and threaded ends undergo precision treatment to enhance wear resistance and ensure smooth operation.

Regular lubrication with the appropriate hydraulic oil is necessary to maintain performance. It is recommended to periodically check and refill the hydraulic oil to prevent friction and wear, which can lead to premature failure.

Preventive Maintenance Measures

• Regular inspection of seals for wear and damage
• Routine checks for hydraulic fluid levels and quality
• Monitoring for any signs of leakage around connections

Implementing these preventive maintenance measures can significantly reduce the risk of failure and extend the life of the hydraulic cylinder.

Installation Guide

Installing the CSYG2075B Micro Digging Bucket Arm Cylinder requires careful attention to detail to ensure optimal performance:

• Ensure all components are clean and free of debris before installation.
• Align the cylinder correctly with the attachment points to prevent misalignment.
• Use appropriate mounting brackets to secure the cylinder in place.
• Tighten bolts to the manufacturer’s specified torque to ensure a secure fit.
• Test the system under low pressure to check for leaks before full operation.

Proper installation is critical to the performance and safety of the hydraulic system.

Common Maintenance Tasks

Regular inspections

Regular inspections are essential to identifying potential issues before they become severe. Check for wear on seals, signs of leakage, and hydraulic fluid levels. This proactive approach helps maintain system integrity and performance.

Proper lubrication

Lubrication is vital for preventing wear on moving parts. Ensure that the cylinder is lubricated according to the manufacturer’s specifications and that the hydraulic fluid is clean. This will enhance performance and extend the life of the cylinder.

Seal replacement and calibration checks

Over time, seals can wear out, leading to leaks and reduced performance. Regularly inspect seals and replace them as needed. Additionally, calibration checks ensure that the cylinder operates within the specified parameters for pressure and travel.

Safety Considerations and Environmental Factors

When using the CSYG2075B, safety measures are paramount. Operators must adhere to safety protocols to prevent accidents and injuries. This includes ensuring that the cylinder is used within its load capacity and that all safety features are functioning correctly. Environmental factors should also be considered in operational settings, as exposure to extreme conditions can affect cylinder performance.

Fault Diagnosis and Common Issues

• Hydraulic Leaks: Check seals and connections for wear.
• Reduced Performance: Ensure proper lubrication and fluid levels.
• Misalignment: Regularly inspect installation to prevent operational issues.

Identifying these common issues early can prevent further complications and ensure continued operation of machinery.

Troubleshooting Tips

If you encounter issues with the CSYG2075B, consider the following troubleshooting tips:

• Check hydraulic fluid levels and quality.
• Inspect seals for signs of wear and replace as necessary.
• Ensure all connections are tight and leak-free.

Taking these preventive measures can minimize potential problems and ensure efficient operation.

About Our Company

We are a leading manufacturer of hydraulic cylinders, offering a wide range of products to meet the needs of domestic and international markets. Our expertise in hydraulic technology positions us as a top wholesale distributor and manufacturer in the industry.

Our commitment to professionalism is evident through our internationally recognized certifications, ensuring our products meet stringent quality standards. We also offer custom services tailored to meet specific client requirements, supported by state-of-the-art production equipment that enhances our manufacturing capabilities.

Our after-sales service is dedicated to providing ongoing support and maintenance, ensuring customer satisfaction and long-term partnerships.
