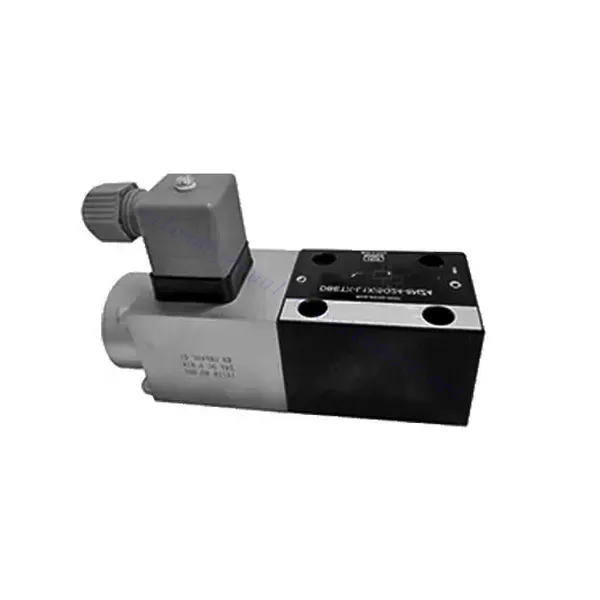

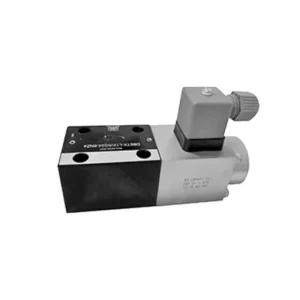

DBETX Series Proportional Pressure Relief Hydraulic Valve

The DBETX series proportional pressure relief hydraulic valve is a versatile and high-performance hydraulic component designed to provide precise pressure relief in hydraulic systems. Engineered with advanced proportional control technology, this valve ensures optimal performance, efficiency, and safety.

The DBETX series proportional pressure relief hydraulic valve empowers hydraulic systems with precise pressure control, enhanced efficiency, and equipment protection. With its proportional pressure relief capabilities, this valve ensures optimal performance across a wide range of applications. By following the recommended usage methods and maintenance guidelines, you can maximize the benefits and reliability of the DBETX series valve, elevating the performance and control of your hydraulic system. Upgrade your hydraulic setup today and experience superior pressure regulation with the DBETX series proportional pressure relief hydraulic valve.

DBETX Series Proportional Pressure Relief Hydraulic Valve Key Characteristics:

• Proportional Pressure Relief:
  • The DBETX series valve delivers proportional pressure relief, allowing for accurate and dynamic hydraulic pressure control.
  • It ensures precise pressure regulation in response to varying load conditions, preventing damage to hydraulic components and optimizing system performance.
• Enhanced System Efficiency:
  • This valve enables precise control of hydraulic flow rates, resulting in enhanced system efficiency and reduced energy consumption.
  • Maintaining the desired pressure levels minimizes pressure fluctuations, enhances overall productivity, and reduces operational costs.
• Safety and Equipment Protection:
  • The DBETX series valve acts as a safeguard by limiting the pressure within the hydraulic system, protecting equipment and operators from potential damage or accidents.
  • It prevents overloading and ensures the longevity of hydraulic components, reducing the risk of system failures and downtime.
• Wide Range of Applications:
  • With its versatile design and compatibility with various hydraulic systems, the DBETX series valve can be used in a wide range of applications across industries such as manufacturing, construction, agriculture, and more.
  • It offers flexibility and adaptability, making it suitable for diverse hydraulic setups and requirements.

DBETX Series Proportional Pressure Relief Hydraulic Valve Parameter:

DBETX Series Proportional Pressure Relief Hydraulic Valve Advantages:

• Direct, to restrict system pressure
• Can adjust pressure by controlling the current with the solenoid according to the characteristic curve
• In the event of electrical failure, the restricted pressure is still within safety level (solenoid current > Imax)
• External amplifying sub-plate mounting has slope and valve calibration functions (separate order)

Usage Method Of DBETX Series Proportional Pressure Relief Hydraulic Valve:

• System Evaluation:
  • Evaluate your hydraulic system and identify the specific requirements for pressure control and relief.
  • Determine if the DBETX series valve is compatible with your system and suitable for your application based on its pressure range, flow capacity, and other specifications.
• Valve Selection:
  • Choose the appropriate DBETX series valve variant based on your system parameters, pressure range, and flow requirements.
  • Consider maximum pressure rating, response time, and operational conditions.
• Installation:
  • Follow the manufacturer’s installation instructions carefully, ensuring proper alignment and secure valve mounting.
  • Connect the valve to the hydraulic system, ensuring leak-free connections and proper flow direction alignment.
• Pressure Adjustment:
  • Adjust the pressure relief setting on the DBETX series valve to match the desired pressure range for your application.
  • Utilize the proportional control signals or adjustment mechanisms provided with the valve to achieve precise pressure regulation.

How To Adjust A Hydraulic Pressure Relief Valve?

Adjusting a hydraulic pressure relief valve allows you to set the desired maximum pressure in a hydraulic system. This is important for maintaining system integrity and preventing damage to components. Here’s a step-by-step guide on how to adjust a hydraulic pressure relief valve:

1. Identify the Pressure Relief Valve:
   • Locate the pressure relief valve in your hydraulic system. It is typically installed in the hydraulic line and often near the pump or control valve.
2. Understand the Valve Design:
   • Familiarize yourself with the specific design of the pressure relief valve you are working with. Different valves may have varying adjustment mechanisms, such as a knob, screw, or locknut.
3. Determine the Desired Pressure:
   • Assess the requirements of your hydraulic system and determine the desired maximum pressure. This will guide you in adjusting the pressure relief valve accurately.
4. Prepare the System:
   • Before making any adjustments, shut off the hydraulic system and relieve the pressure by moving the control levers back and forth or following the manufacturer’s recommended procedure.
5. Locate the Adjustment Mechanism:
   • Identify the adjustment mechanism on the pressure relief valve. It could be a knob, screw, or locknut positioned on the valve body or adjacent to it.
6. Adjust the Valve:
   • If the valve has a knob or handle, turn it clockwise to increase the pressure relief setting or counterclockwise to decrease it. If the valve has a screw, turn it clockwise to increase the pressure relief or counterclockwise to decrease it.
7. Make Incremental Adjustments:
   • When adjusting the pressure relief valve, make small, incremental changes to avoid sudden or drastic variations in pressure. This allows you to fine-tune the maximum pressure and achieve the desired performance.
8. Observe the System:
   • With each adjustment, observe the hydraulic system and its components. Pay attention to the pressure gauge readings to see if they align with the desired maximum pressure.
9. Test and Verify:
   • Operate the hydraulic system and monitor the pressure to ensure that it remains within the desired range. Check for any pressure fluctuations or irregularities that may indicate the need for further adjustment.
10. Lock the Adjustment:
    • Once you have achieved the desired pressure relief setting, secure the adjustment mechanism to prevent unintended changes. Some valves may have a locking nut or set screw that can be tightened to hold the adjustment in place.
11. Monitor and Revisit:
    • Regularly monitor the pressure relief valve and the hydraulic system. If there are changes in the system or if the desired maximum pressure needs to be adjusted, revisit the pressure relief valve and repeat the adjustment process as needed.

工厂的能力和产能：

(1) 装配

我们拥有一流的自主研发装配平台。液压油缸生产车间拥有 4 条半自动提升油缸装配线和 1 条全自动倾斜油缸装配线，设计年生产能力 100 万支。特种油缸车间配备了各种规格的半自动清洗装配系统，设计年生产能力 20 万只，并配备了知名数控加工设备、加工中心、高精度油缸加工专用设备、机器人焊接机、自动清洗机、油缸自动装配机、自动喷漆生产线等。现有关键设备 300 多台（套）。设备资源的优化配置和高效利用，保证了产品的精度要求，满足了产品的高质量需求。

(2) 机加工

加工车间配备了定制的斜轨车削中心、加工中心、高速珩磨机、焊接机器人及其他相关设备，可加工最大内径 400 毫米、最大长度 6 米的气缸管。

(3) 焊接

(4) 油漆和涂料

配备中小型圆筒自动水性漆喷涂线，实现机器人自动上下料和自动喷涂，设计产能为每班 4000 件；
我们还拥有一条由动力链驱动的大型油缸半自动喷漆生产线，设计产能为每班 60 箱。

(5) 测试

我们拥有一流的检验设施和试验台，确保气缸的性能符合要求。

We are one of the best hydraulic cylinder manufacturers. We can offer comprehensive hydraulic cylinders. We also provide corresponding 农用齿轮箱. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and 与我们合作!
