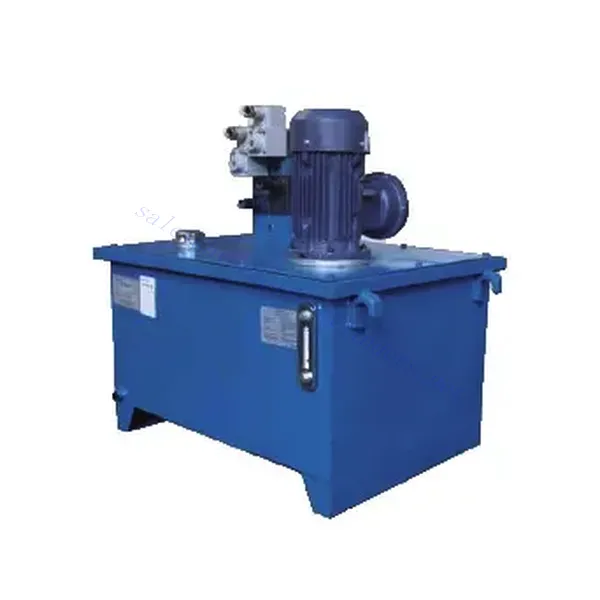

Explosion-Proof Hydraulic System For Lifting Platform

Explosion-proof hydraulic systems for lifting platforms are a state-of-the-art solution designed to provide safe and reliable vertical mobility in hazardous environments with a risk of explosion or flammable substances. This specialized hydraulic system ensures optimal performance while prioritizing operator and equipment safety. Below, we will discuss the main characteristics of the lifting platform explosion-proof hydraulic system, methods, maintenance, and other vital aspects.

Hydraulic System For Lifter Parameter:

Motor Power:1.5KW
Oil Tank:150L

Characteristics of the Explosion-Proof Hydraulic System For Lifting Platform:

1. Compliance with Safety Standards:

• Certified Explosion-Proof Components: The hydraulic system has explosion-proof components that meet stringent safety standards, ensuring reliable operation in hazardous environments.
• Classifications and Ratings: The system adheres to defined types and ratings, such as ATEX or IECEx, to ensure compliance with industry-specific regulations for explosion protection.

2. 坚固的结构

• Durable Materials: The system uses high-quality, durable materials that withstand harsh operating conditions, including exposure to flammable gases, vapors, or dust.
• Reinforced Sealing: Special sealing mechanisms and gaskets are employed to prevent the ingress of hazardous substances into the hydraulic system, maintaining the integrity of the equipment.

3. Enhanced Safety Measures:

• Overpressure Protection: The hydraulic system incorporates overpressure protection mechanisms to prevent excessive pressure build-up, reducing the risk of system failure or explosions.
• Leak Detection: Advanced leak detection systems are integrated into the hydraulic system, providing early warning for potential leaks and minimizing the risk of flammable substances escaping into the environment.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed based on a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

Explosion-Proof Hydraulic System For Lifting Platform 特点:

1. Compliance with Safety Standards:

• Explosion-proof Component Certification: The hydraulic system has explosion-proof components that meet strict safety standards to ensure reliable operation in hazardous environments.
• Classification And Grading: Systems follow defined types and grades, such as ATEX or IECEx, to ensure compliance with industry-specific explosion protection regulations.

2. 坚固的结构

• Durable Materials: The system is made of high-quality, durable materials that withstand harsh operating conditions, including exposure to flammable gases, steam, or dust.
• Reinforced Sealing: Special sealing mechanisms and gaskets are used to prevent harmful substances from entering the hydraulic system and maintain the integrity of the equipment.

3. Enhanced Safety Measures:

• Overpressure Protection: The hydraulic system uses an overpressure protection mechanism to prevent excessive pressure buildup and reduce the risk of system failure or explosion.
• Leak Detection: Advanced leak detection systems are integrated into the hydraulic system to warn early about potential leaks and minimize the risk of flammable substances leaking into the environment.

How Does A Hydraulic Brake System Work?

A hydraulic brake system is common in vehicles, including cars, trucks, and motorcycles. It utilizes fluid mechanics principles to convert mechanical force into hydraulic pressure, which is then used to apply the brakes. Here’s a step-by-step overview of how a hydraulic brake system works:

1. Brake Pedal Application:
   When the driver presses the brake pedal, a mechanical force is applied to the brake pedal assembly. This force is transferred to the master cylinder.
2. Master Cylinder:
   The master cylinder is a key component of the hydraulic brake system. It consists of a piston(s) and a reservoir filled with brake fluid. When the brake pedal is pressed, the piston(s) in the master cylinder is pushed forward, increasing the pressure in the brake fluid.
3. Brake Lines:
   The brake fluid, under increased pressure from the master cylinder, travels through brake lines or hoses to reach the individual brake assemblies at each wheel. These brake lines are typically made of reinforced rubber or metal, ensuring durability and resistance to high pressures.
4. Brake Calipers or Wheel Cylinders:
   At each wheel, the brake fluid enters either a brake caliper (in disc brake systems) or a wheel cylinder (in drum brake systems). These components contain pistons that are pushed outward by the hydraulic pressure from the brake fluid.
5. Brake Pads or Brake Shoes:
   In a disc brake system, the brake caliper contains brake pads that are pressed against the rotating brake disc (rotor) when the hydraulic pressure is applied. The friction between the brake pads and the rotor slows down the rotation, ultimately stopping the vehicle.In a drum brake system, the wheel cylinder pushes the brake shoes outwards, causing them to press against the rotating brake drum. The friction between the brake shoes and the drum slows down and stops the vehicle.
6. Release of Brake Pressure:
   When the driver releases the brake pedal, the mechanical force on the master cylinder is relieved, allowing springs or return mechanisms to retract the brake calipers or wheel cylinders. This action reduces the pressure in the brake fluid, releasing the friction between the brake pads or shoes and the rotor or drum.
7. Brake Fluid Reservoir:
   The hydraulic brake system includes a brake fluid reservoir connected to the master cylinder. The reservoir ensures a constant supply of brake fluid to the system and compensates for any fluid loss due to wear or leaks.
8. Brake Fluid:
   Brake fluid plays a critical role in the hydraulic brake system. It is formulated to withstand high temperatures and provide reliable hydraulic transfer of force. Brake fluid also has corrosion inhibitors to protect the brake system components.

工厂的能力和产能：

(1) 装配

我们拥有一流的自主研发装配平台。液压油缸生产车间拥有 4 条半自动提升油缸装配线和 1 条全自动倾斜油缸装配线，设计年生产能力 100 万支。特种油缸车间配备了各种规格的半自动清洗装配系统，设计年生产能力 20 万只，并配备了知名数控加工设备、加工中心、高精度油缸加工专用设备、机器人焊接机、自动清洗机、油缸自动装配机、自动喷漆生产线等。现有关键设备 300 多台（套）。设备资源的优化配置和高效利用，保证了产品的精度要求，满足了产品的高质量需求。

(2) 机加工

加工车间配备了定制的斜轨车削中心、加工中心、高速珩磨机、焊接机器人及其他相关设备，可加工最大内径 400 毫米、最大长度 6 米的气缸管。

(3) 焊接

(4) 油漆和涂料

配备中小型圆筒自动水性漆喷涂线，实现机器人自动上下料和自动喷涂，设计产能为每班 4000 件；
我们还拥有一条由动力链驱动的大型油缸半自动喷漆生产线，设计产能为每班 60 箱。

(5) 测试

我们拥有一流的检验设施和试验台，确保气缸的性能符合要求。

We are one of the best hydraulic system manufacturers. We can offer comprehensive hydraulic system. We also provide corresponding 农用齿轮箱. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and 与我们合作!
