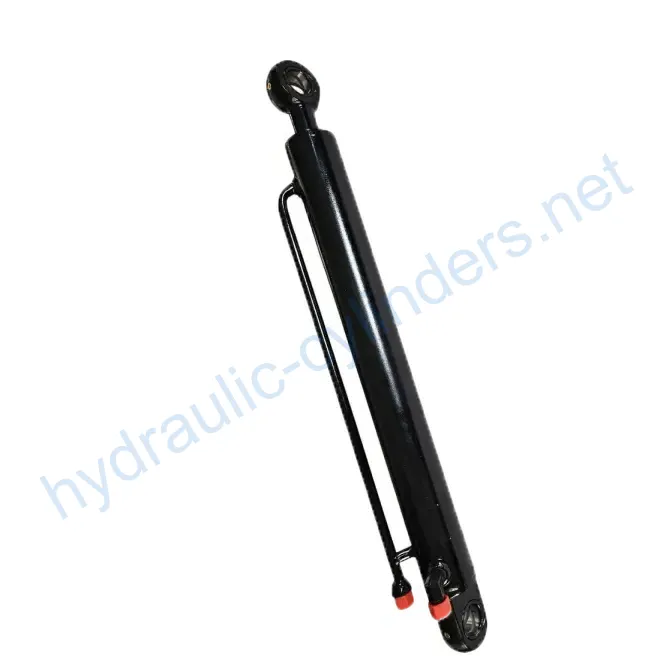

Micro Digging Side Hydraulic Cylinders

Product Overview

The Micro Digging Side Hydraulic Cylinder is a specialized hydraulic actuator designed for precise control and powerful performance in compact applications. These cylinders are essential components in various machinery, enabling operators to execute tasks with remarkable accuracy and efficiency. Engineered to deliver optimal force in confined spaces, they find their place in construction, excavation, and other heavy-duty applications. The compact design allows for easy integration into different systems, ensuring that operators can achieve superior performance without sacrificing space or mobility.

Product Specifications

The following are the key specifications of the Micro Digging Side Hydraulic Cylinder:

• Cylinder Diameter: 50mm
• Rod Diameter: 30mm
• Travel: 430mm
• Installation Distance: 670mm

These dimensions are crucial for determining the cylinder??s efficiency and compatibility with various machinery. The cylinder diameter ensures sufficient strength, while the rod diameter affects the load capacity. The travel distance is critical to the range of motion, and the installation distance facilitates proper mounting.

Key Features

Our Micro Digging Side Hydraulic Cylinders are designed with several standout features:

• Durability: Constructed with high-quality materials to withstand harsh conditions.
• Compact Size: Ideal for applications with limited space.
• High Efficiency: Delivers powerful performance while consuming less energy.
• Customizable Options: We can tailor specifications to meet specific needs.
• Reliable Sealing: Designed to prevent leaks and enhance longevity.

We take pride in our ability to produce these hydraulic cylinders, ensuring they perfectly replace existing models in your machinery.

Applications

The Micro Digging Side Hydraulic Cylinder is versatile and can be used in various applications:

1. Excavation Equipment

In excavation machinery, these cylinders provide the necessary force for digging and lifting soil or debris. Their compact design allows them to be installed in tight spaces, making them ideal for mini excavators. The precision control offered by these hydraulic cylinders ensures that operators can maneuver equipment smoothly, reducing the risk of damage to surrounding structures. This efficiency in excavation tasks significantly enhances productivity on-site.

2. Agricultural Machinery

In agriculture, these hydraulic cylinders are utilized in equipment such as plows and harvesters. Their ability to maintain consistent force ensures uniform tilling and planting, which is critical for crop yields. The robust construction of these cylinders allows them to function effectively in various weather conditions, contributing to the reliability of agricultural operations. The precision they offer enables farmers to optimize their machinery for better results.

3. Material Handling

In material handling systems, these hydraulic cylinders facilitate the movement of heavy loads with ease. They are often integrated into forklifts and conveyors, providing the necessary lifting and lowering motions. Their efficiency helps reduce operational costs, as they require less energy to perform the same tasks compared to larger models. This makes them a valuable asset in warehouses and distribution centers.

Design Considerations

When designing hydraulic cylinders, several key factors are considered:

Load Capacity

Understanding the load capacity is critical for hydraulic cylinders. The design must accommodate the maximum weight the cylinder will lift or push. This involves selecting appropriate materials and dimensions to prevent failure under pressure. Furthermore, the load capacity must align with the machinery’s requirements to ensure safety and performance.

Sealing Efficiency

Sealing is essential in hydraulic systems to prevent leaks and maintain pressure. The choice of sealing materials and designs directly impacts the longevity and reliability of the hydraulic cylinder. Advanced sealing solutions, such as polyurethane and nitrile rubber, are utilized to ensure effective sealing while maintaining flexibility and durability. Regular checks and replacements of seals are necessary to avoid performance issues.

Durability

Durability is a fundamental aspect of hydraulic cylinder design. These components must withstand extreme conditions, such as temperature fluctuations and exposure to harsh chemicals. Utilizing high-strength materials and corrosion-resistant coatings can significantly enhance the lifespan of the cylinders. Regular maintenance plays a crucial role in sustaining their durability over time.

Safety Features

Safety is paramount in hydraulic system design. Incorporating features such as pressure relief valves and fail-safe mechanisms ensures that the system operates within safe parameters. Regular safety checks and adherence to industry standards are vital to prevent accidents and ensure operator safety during operation.

Maintenance Accessibility

Designing hydraulic cylinders with maintenance in mind helps extend their operational life. Features like easy access for regular checks and service points for lubrication can make a significant difference in maintenance efficiency. A well-thought-out design minimizes downtime and ensures that the cylinders remain in optimal working condition.

Sealing and Lubrication

Effective sealing is crucial for the performance of hydraulic cylinders. Various seals, including piston seals and rod seals, play significant roles in maintaining hydraulic pressure. Seals are often made from durable materials like polyurethane and nitrile rubber, designed to withstand wear and tear. The cylinder body and threaded ends undergo precision machining to enhance durability and resistance to abrasion.

Regular lubrication is another key aspect of maintenance. It is essential to ensure an adequate supply of hydraulic oil for smooth operation. Operators should establish a routine for checking oil levels and replenishing as needed, as proper lubrication reduces friction between moving parts, leading to improved efficiency and longevity of the hydraulic components.

Preventive Maintenance Measures

Regular maintenance is essential to ensure the longevity and efficiency of hydraulic cylinders. Here are some preventive measures:

• Regular Inspections: Frequently checking for signs of wear, leaks, and other issues can help identify problems before they escalate.
• Lubrication Routines: Establishing a schedule for lubrication can prevent unnecessary wear on moving parts.
• 更换密封件： Monitoring and replacing worn seals promptly can prevent leaks and maintain system pressure.

Installation Guidelines

Proper installation of hydraulic cylinders is crucial for optimal performance. Follow these guidelines:

1. Align the Cylinder: Ensure the cylinder is properly aligned with the mounting points to avoid undue stress on components.
2. Use Appropriate Mounting Brackets: Secure the cylinder with suitable brackets to prevent movement during operation.
3. Check Hydraulic Connections: Ensure all hydraulic lines are connected securely to prevent leaks.
4. Test the System: Before full operation, conduct a test to ensure everything functions correctly.

Common Maintenance Tasks

Essential maintenance tasks include:

1. Regular Inspections

Conducting regular inspections helps identify signs of wear and potential issues early. This proactive approach can prevent costly repairs and downtime. Inspecting seals, hoses, and fittings can ensure the system remains leak-free and operates smoothly. Maintenance records should be kept to track the condition over time.

2. Appropriate Lubrication

Lubricating the hydraulic components as per the manufacturer??s guidelines is vital for preventing wear and prolonging service life. Using the right type of hydraulic oil and ensuring it’s at the correct level can significantly impact the performance and efficiency of the system. Regular checks and adjustments should be part of the maintenance routine to keep the system functioning optimally.

3. Seal Replacement

Replacing seals is crucial to maintaining hydraulic integrity. Signs that seals need replacement include visible leaks or fluctuations in pressure. Regularly scheduled replacements based on usage can help maintain the efficiency of the hydraulic system and prevent unexpected failures.

Safety and Environmental Considerations

Safety measures are paramount when working with hydraulic systems. Operators should be trained in recognizing potential hazards, such as fluid leaks and pressure build-up. When using hydraulic cylinders, it’s essential to adhere to safety protocols, including wearing protective gear and following operational guidelines. Additionally, proper disposal methods for hydraulic fluids should be adhered to, ensuring minimal environmental impact.

Troubleshooting and Common Issues

Understanding potential issues with hydraulic cylinders can help in troubleshooting effectively:

• Leakage: Commonly caused by worn seals or improper assembly. Inspect seals and connections for damage.
• Pressure Drops: May indicate blockages in hydraulic lines or low fluid levels. Check for obstructions and refill fluid as needed.
• Unresponsive Cylinder: Can occur due to air trapped in the system or inadequate fluid pressure. Bleeding the system and checking fluid levels is recommended.

Troubleshooting Tips

If any issues arise, consider the following tips:

• Regularly Monitor Performance: Keeping an eye on the cylinder’s performance can catch issues early.
• Consult Manufacturer Guidelines: Manufacturer documentation often provides troubleshooting steps and solutions for specific issues.
• Implement Preventive Measures: Establishing a routine for inspections and maintenance can minimize the likelihood of problems occurring.
