Introduction

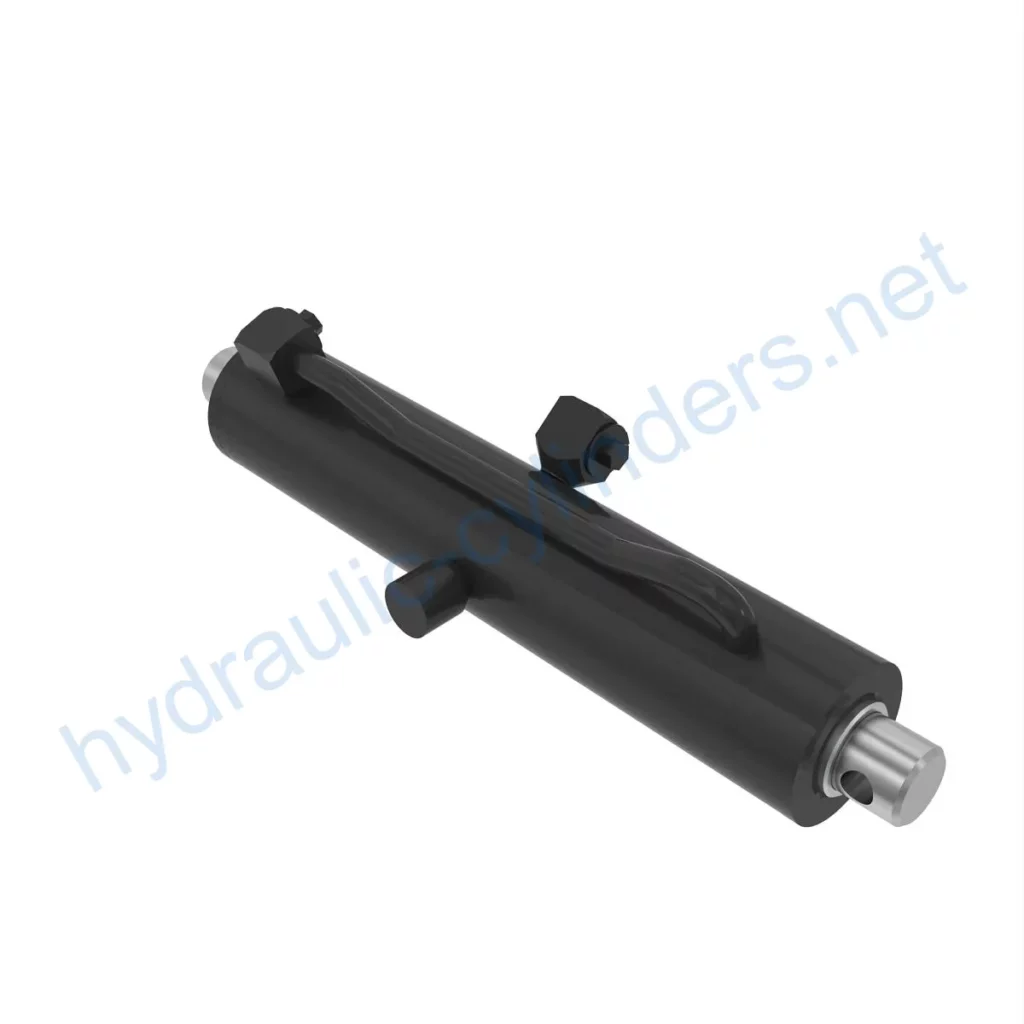

The Replacement Of AH223400 Quick Coupler Hydraulic Cylinder is a hydraulic cylinder designed to replace damaged or worn cylinders in various heavy equipment models, including 444 G, 444J, 444K, 524K, 524K-II, 544J, 544K, 544K-II, 624P, 624J, 624K, and 624K-II. This product has a weight of 14.57 lb, a height of 3.5 in, a width of 4.5 in, and a length of 15.7 in.
Specifications and Models
The Replacement Of AH223400 Quick Coupler Hydraulic Cylinder is compatible with various models of heavy equipment. The cylinder’s dimensions are 3.5 inches in height, 4.5 inches in width, and 15.7 inches in length, with a weight of 14.57 pounds. The compatible models include 444 G, 444J, 444K, 524K, 524K-II, 544J, 544K, 544K-II, 624P, 624J, 624K, and 624K-II.
Features
- Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore equipment’s normal operating ability, ensuring optimal performance in various applications.
- Enhanced Safety: Regularly replacing hydraulic cylinders can reduce safety hazards caused by cylinder failure, ensuring the safety of both the operator and equipment.
- Overload Protection: New cylinder designs typically include better overload protection mechanisms to enhance safety.
- Quick Installation: Modern hydraulic cylinders are designed to be easy to install and replace, reducing downtime.
- Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts on the market.
We are capable of producing this product, and our product can perfectly replace these hydraulic cylinders.
Applications
The Replacement Of AH223400 Quick Coupler Hydraulic Cylinder can be used in various heavy equipment for different purposes. Here are some examples:
- Excavators: The hydraulic cylinders in excavators?? arms or buckets may become damaged due to long-term use or overload, requiring replacement to restore proper operation.
- Cranes: The hydraulic cylinders of crane booms can wear out easily due to frequent lifting and lowering, requiring regular replacement to ensure safety.
- Tractors: The front loader hydraulic cylinders in tractors may leak or experience a decrease in performance due to continuous lifting and tilting operations, requiring replacement.
- Harvesters: During harvesting, the hydraulic system is under high pressure, and the cylinders may become damaged due to fatigue, requiring timely replacement to maintain work efficiency.
- Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. If the cylinder fails, it can affect production efficiency and must be replaced immediately.
- Die Casting Machines: In high-pressure and high-temperature environments, hydraulic cylinders may experience performance degradation, and regular replacement can ensure product quality.
- Mining Equipment: Hydraulic cylinders are used to lift and move heavy objects in mining equipment, and due to the harsh working environment, regular inspection and replacement are necessary to avoid equipment failure.
- Bulldozers: The wear of hydraulic cylinders on bulldozer push arms can lead to decreased pushing ability, and timely replacement is necessary to maintain work efficiency.
Maintenance
Regular maintenance is essential for the Replacement Of AH223400 Quick Coupler Hydraulic Cylinder to operate smoothly and avoid potential problems. Here are some common maintenance tasks:
检查
Regular inspection can detect potential problems before they cause severe damage. Proper alignment guidance should be provided during installation, and appropriate installation brackets should be used to secure the cylinder.
Lubrication
The cylinder should be lubricated with the appropriate amount of hydraulic oil to ensure optimal performance.
Seal Replacement and Calibration Inspection
Seals should be replaced when necessary, and calibration inspection should be performed regularly to ensure the cylinder’s accuracy. Proper installation, lubrication, and adjustment are vital for the cylinder’s longevity and performance.
Safety and Environmental Considerations
When using the Replacement Of AH223400 Quick Coupler Hydraulic Cylinder, safety measures must be taken into account. Proper installation, lubrication, and adjustment are essential to prevent accidents.
Diagnostic and Common Problems
Some common problems with hydraulic cylinders include leaks, cracks, and worn out seals. These issues can be diagnosed by inspecting the cylinder. Regular inspection and maintenance can prevent these problems from occurring.
Product Design Considerations and Selection Criteria
The Replacement Of AH223400 Quick Coupler Hydraulic Cylinder is designed with durability, safety, and maintenance in mind. Key design considerations include load-bearing capacity, sealing, durability, safety, and maintainability. Polyurethane and nitrile rubber are used as wear-resistant materials for seals, and the cylinder body and thread end surface are finely treated to improve wear resistance. Regular inspection and maintenance can help extend the cylinder’s life and performance.
Sealing and Lubrication
The cylinder uses various sealing components, such as piston seals and rod seals, which are made of wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and thread end surface are precisely machined to improve wear resistance. To ensure optimal performance, the cylinder should be lubricated with the appropriate amount of hydraulic oil regularly.
Installation Guide
When installing the Replacement Of AH223400 Quick Coupler Hydraulic Cylinder, it is essential to align the cylinder correctly and use appropriate brackets to secure it. The recommended inspection, repair, and replacement procedures should be followed to ensure proper installation and maintenance.
Company Introduction
Our company is a manufacturer of replacement hydraulic cylinders, offering a wide range of products. We are one of the leading manufacturers and wholesale distributors of hydraulic cylinders in domestic and international markets. We specialize in providing customized services, international certifications, advanced production equipment, and efficient after-sales service.
Author: lyl
